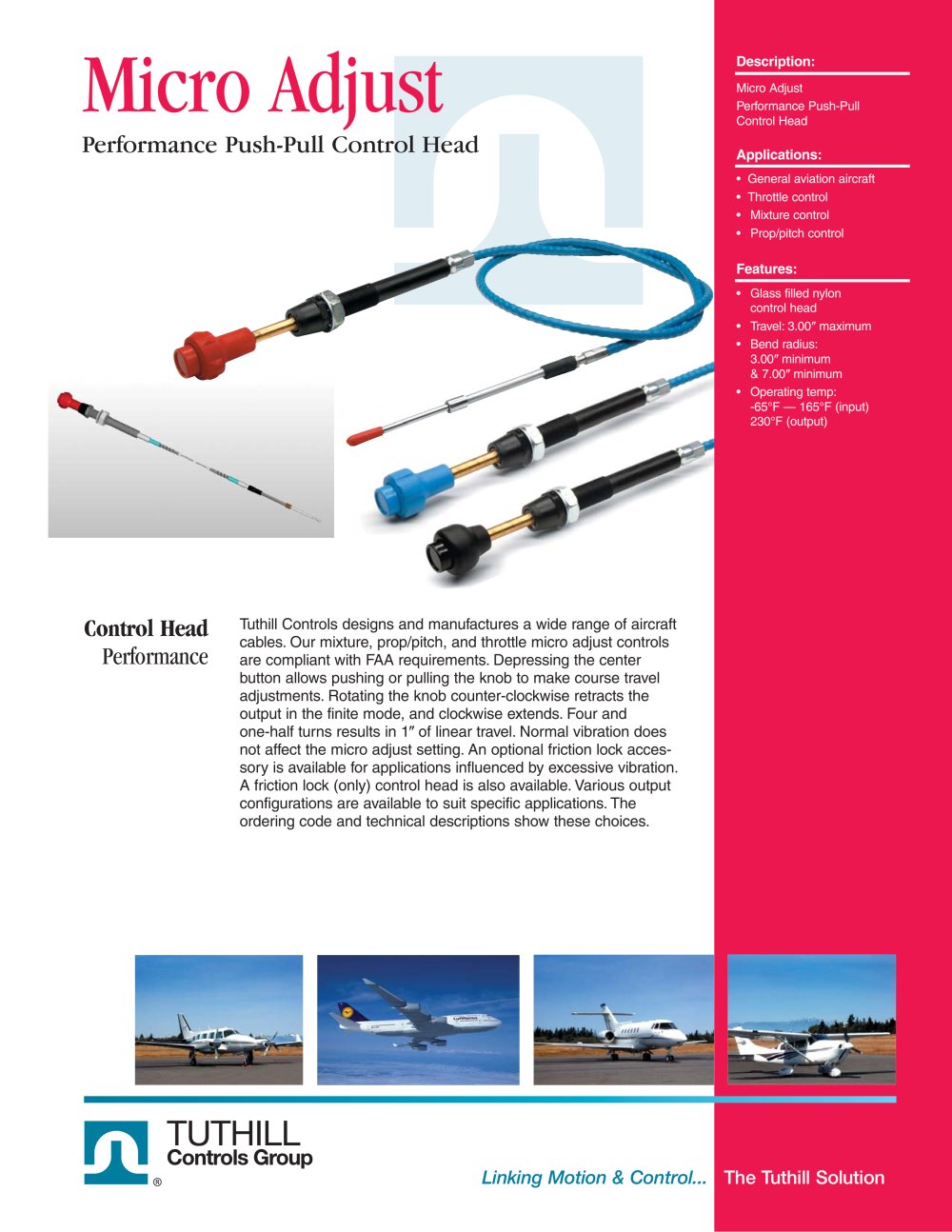

Micro Adjust Performance Push-Pull Control Head > General aviation aircraftՕThrottle control Mixture control ՕProp/pitch control > Glass filled nylon control headՕTravel:3.00 maximumBend radius:3.00 minimum& 7.00 minimumՕOperating temp:-65F З 165F (input) 230аF (output) >
Open the catalog to page 1
Lost motion:. 030 + .0004 perdegree of bend with 5.0lb of force Notes: (Design Parameters) Operating temperature: Normal load: ѱ20lb Stroke: 3.00 from -65F З +165F at input end/+230аF at output end Glass filled nylon control head. Minimum bend radius: 3.00 > L FRICTION LOCKTYPE "A" KNOB BLACKTYPE "B" KNOB BLACK.215.250 DIA16 DEG MINCONICAL SWIVEL 8.41 MIN EXTENDED REF .750-16 UNF-2AFRICTION LOCKTYPE "A" KNOB BLACKTYPE "B" KNOB BLACK .62 MINFULL THD.62 MINFULL THD8.87EXTENDED2.55 16 DEG MINCONICAL SWIVEL .4375-20 UNF-2A.190-32 UNF-2A.83 MINFULL THD Normal load: Unspecified (determinedby installation...
Open the catalog to page 2
Lost motion:. 030 + .0004 per degreeof bend with 5.0lb of force Notes: (Design Parameters) Operating temperature: Normal load: ѱ 20lb Stroke: 3.00 from -65F З +165F at input end/+230аF at output end Glass filled nylon control head. Minimum bend radius: 3.00 > L 8.41 MINEXTENDED16 DEG MINCONICAL SWIVEL.215.250 DIA .190-32 UNF-2A.750-16 UNF-2ATYPE "B" KNOB(RED).83 MINFULL THD L .4375-20 UNF-2A.190-32 UNF-2A.83 MINFULL THD16 DEG MINCONICAL SWIVEL.62 MINFULL THD.62 MINFULL THD8.87EXTENDED .750-16 UNF-2ATYPE "B" KNOB(RED) Normal load: Unspecified (determinedby installation configuration) Notes: (Design...
Open the catalog to page 3
Normal load: Unspecified (determinedby installation configuration) Stainless Steel orPlated Carbon SteelՕ Plastic CoatedCarbon Steel Conduitand Innermember Plastic SealՕ Plastic Knob Notes: (Design Parameters) Operating temperature: Glass filled nylon control head. Stroke: 3.00 from -65F З +165F at input end/+230аF at output end Minimum bend radius: 3.00 > OPTIONAL CONDUIT CAP TYPE CӔ KNOB (BLUE)3/4-16UNF-2APER MIL-S-7723 REF3/8-24UNF-2A 1.00 REF 6.00 Ա .50(CUT TO SUIT) Optional Conduit Cap Full Range > Normal load: Unspecified (determinedby installation configuration) Notes: (Design Parameters)...
