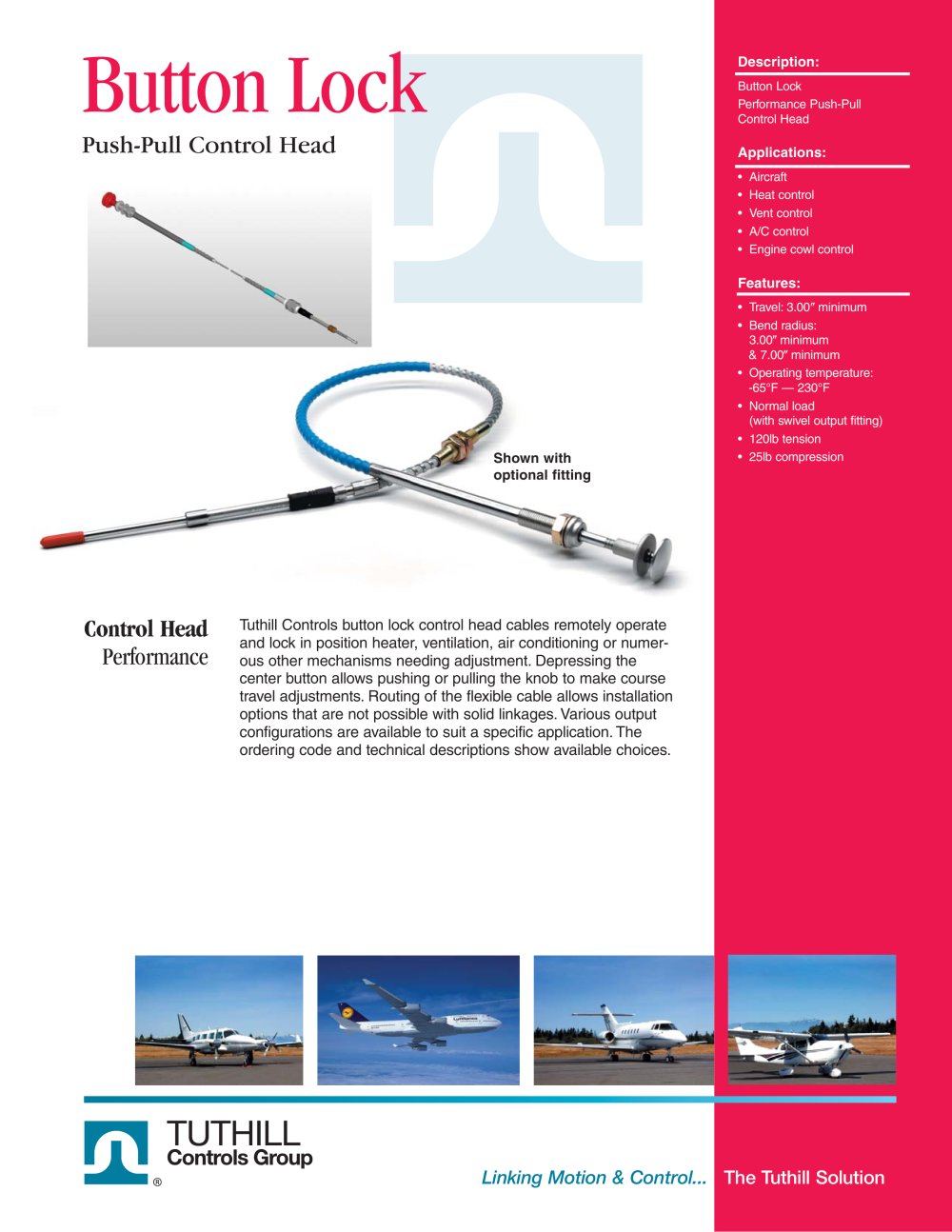

Button Lock Performance Push-Pull Control Head > AircraftՕ Heat control Vent control ՕA/C control Engine cowl control > Օ Travel:3.00 minimumBend radius:3.00 minimum& 7.00 minimumՕOperating temperature:-65F З 230FЕNormal load (with swivel output fitting)120lb tension Օ25lb compression >
Open the catalog to page 1
Stainless Steel orPlated Carbon SteelՕ Plastic CoatedCarbon Steel Conduitand Innermember Plastic SealՕ Plastic Knob > Normal load: 120lb tension, 25lb compression Notes: (Design Parameters) Operating temperature: Stroke: 3.00 from -65F З +165F at input end/+230аF at output end Minimum bend radius: 3.00 > L 1.28(REF)1.00DIA .250 DIA (REF)7/16-20 UNF-2APER MIL-S-774216 DEG MINCONICAL SWIVEL.215 (REF)8.53 .12EXTENDED ѕ Full Range > Normal load: Unspecified (determined by installation configuration) Notes: (Design Parameters) Operating temperature: Stroke: 3.00 from -65F З +165F at input end/+230аF...
