- Horizontal Gear Shifter - 923 Series

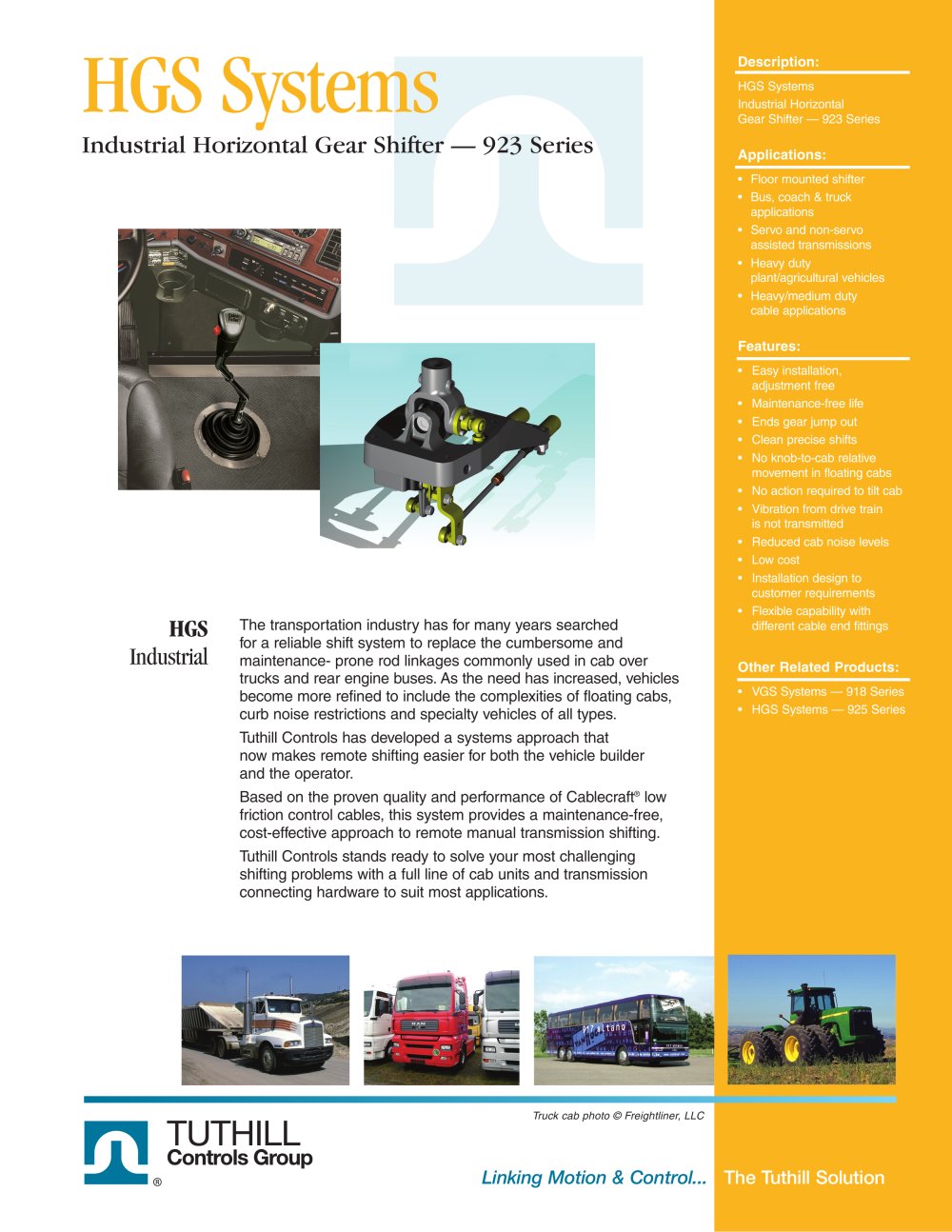

Horizontal Gear Shifter - 923 Series
1 /2Pages
Horizontal Gear Shifter - 923 Series
1 /2Pages
Catalog excerpts
Housing > Pressure Die-cast Aluminum Technical Data וRecommended handle lengths:610mm to 760mm (24" - 30" approx.)Normal working load @ knob = 3kg (6.6lb.) to 5kg (11lb.) ՕAccidental overload @ knob = 100kg (220lb.) Operating temperatures:-40հC to 120C (-40аF to 248F)ЕWeight:3.2kg (7.0lb.) Yoke > Investment Cast Steel Options > Fully Sealed UnitAvailableՕ Gaiter Available Different End Fittings AvailableՕ Right & Left Hand Configurations With or without Bias SpringՕ Adjustable BiasSpring Position Variable RatioBetween 4:1 to 5:1 3D CAD Models available upon request. > 4 HOLES M8x1.25-6h 253 0.2...
