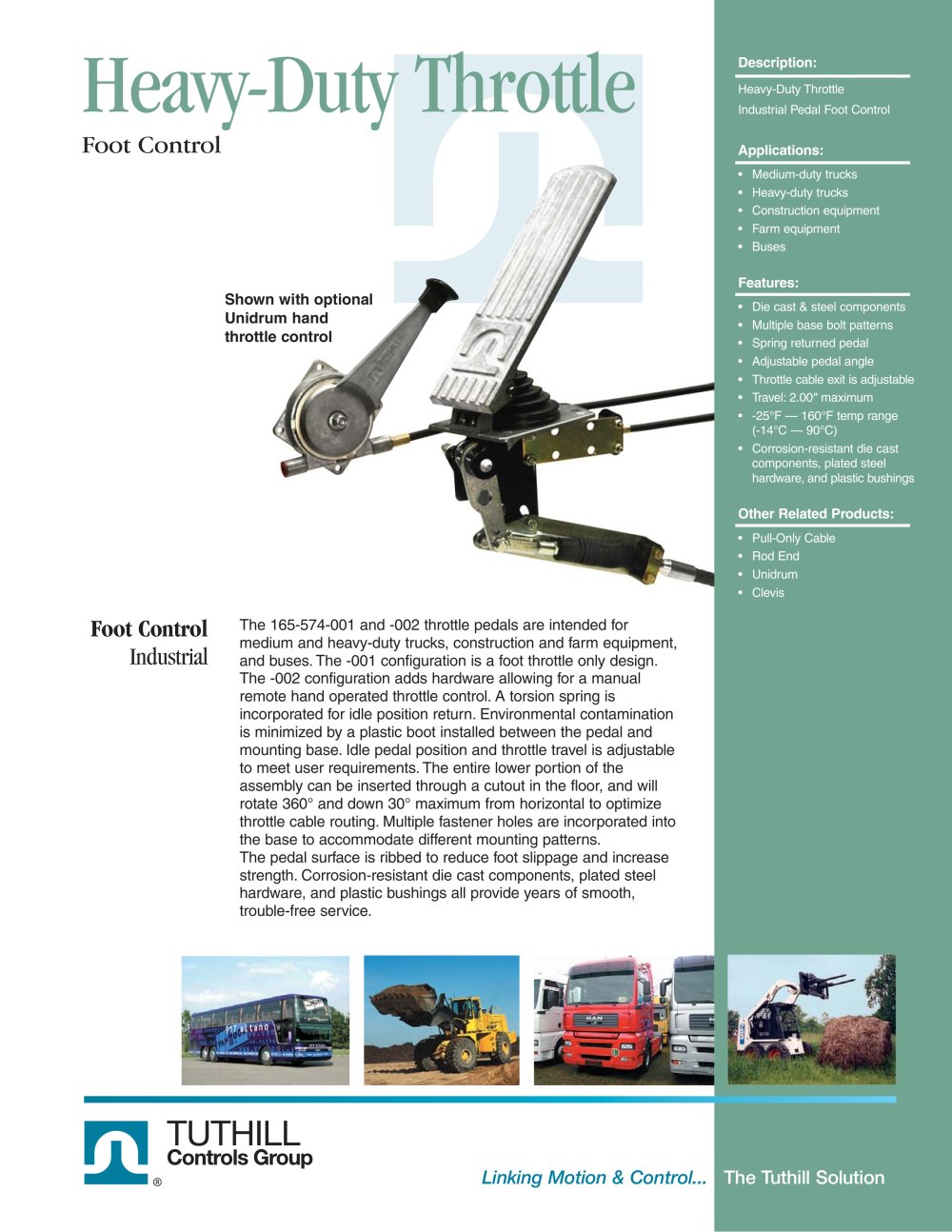

Heavy-Duty Throttle

Heavy-Duty Throttle Industrial Pedal Foot Control

Foot Control

Applications:

• Medium-duty trucks

• Heavy-duty trucks

• Construction equipment

• Farm equipment

• Buses

Features:

• Die cast & steel components

• Multiple base bolt patterns

• Spring returned pedal

• Adjustable pedal angle

• Throttle cable exit is adjustable I • Travel: 2.00" maximum

• -25°F — 160°F temp range (-14°C — 90°C)

• Corrosion-resistant die cast components, plated steel hardware, and plastic bushings

Other Related Products:

• Pull-Only Cable

• Rod end

• Unidrum

• Clevis

Shown with optional Unidrum hand throttle control

The 165-574-001 and -002 throttle pedals are intended for medium and heavy-duty trucks, construction and farm equipment, and buses. The -001 configuration is a foot throttle only design. The -002 configuration adds hardware allowing for a manual remote hand operated throttle control. A torsion spring is incorporated for idle position return. Environmental contamination is minimized by a plastic boot installed between the pedal and mounting base. Idle pedal position and throttle travel is adjustable to meet user requirements. The entire lower portion of the assembly can be inserted through a cutout in the floor, and will rotate 360° and down 30° maximum from horizontal to optimize throttle cable routing. Multiple fastener holes are incorporated into the base to accommodate different mounting patterns. The pedal surface is ribbed to reduce foot slippage and increase strength. Corrosion-resistant die cast components, plated steel hardware, and plastic bushings all provide years of smooth, trouble-free service.
