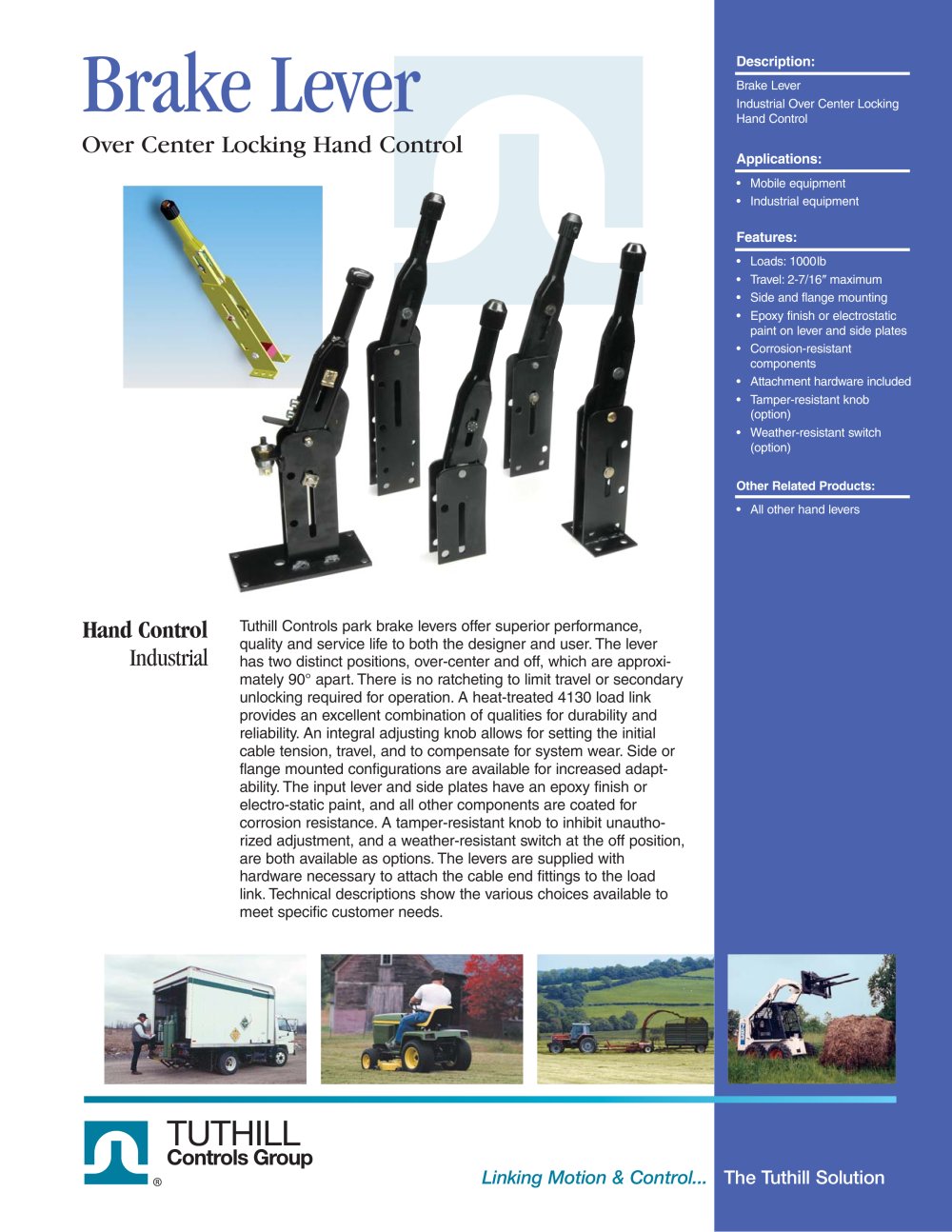

Over Center Locking Hand Control

Brake Lever

Description:

Brake LeverIndustrial Over Center Locking Hand Control

Applications:

•Mobile equipment•Industrial equipment

Features:

maximum•Side and flange mounting •Epoxy finish or electrostatic paint on lever and side plates•Corrosion-resistant components•Attachment hardware included •Tamper-resistant knob (option)•Weather-resistant switch (option) •Loads:1000lb •Travel:2-7/16 Other Related Products:• All other hand levers

Hand Control

Tuthill Controls park brake levers offer superior performance, quality and service life to both the designer and user.The lever has two distinct positions, over-center and off, which are approxi- mately 90° apart.There is no ratcheting to limit travel or secondary unlocking required for operation.A heat-treated 4130 load link provides an excellent combination of qualities for durability and reliability.An integral adjusting knob allows for setting the initial cable tension, travel, and to compensate for system wear.Side or flange mounted configurations are available for increased adapt- ability.The input lever and side plates have an epoxy finish or electro-static paint, and all other components are coated for corrosion resistance.A tamper-resistant knob to inhibit unautho- rized adjustment, and a weather-resistant switch at the off position, are both available as options.The levers are supplied with hardware necessary to attach the cable end fittings to the load link.Technical descriptions show the various choices available to meet specific customer needs.

Industrial
