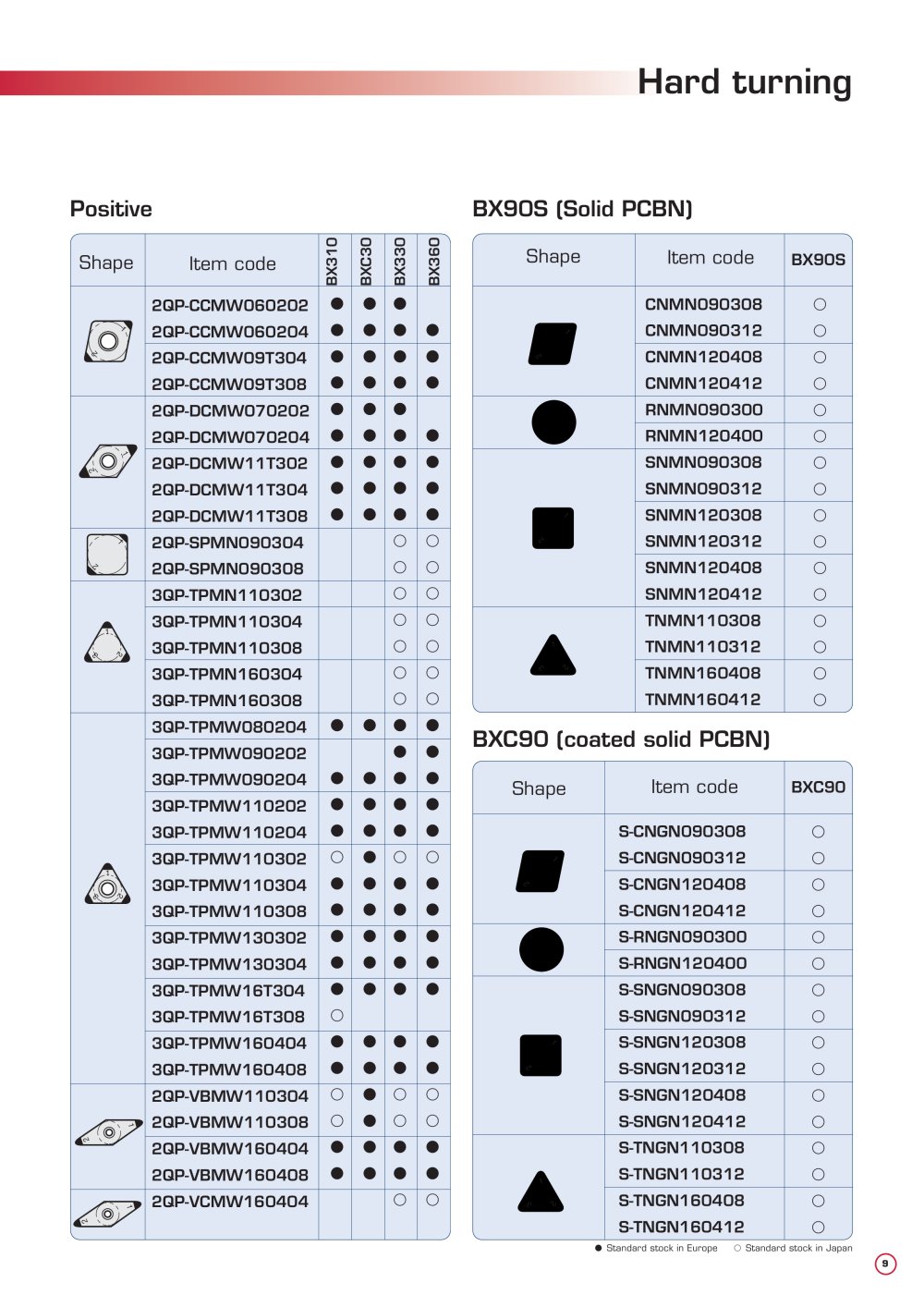

Positive

BX90S (Solid PCBN)


	Shape	Item code	BX310	BXC30	BX330	BX360
	(Pi	2QP-CCMW060202 2QP-CCMW060204	• •	• •	• •	•
	(Pi	2QP-CCMW09T304 2QP-CCMW09T308	• •	• •	• •	• •
		2QP-DCMW070202 2QP-DCMW070204	• •	• •	• •	•
	IP?	2QP-DCMW11T302 2QP-DCMW11T304 2QP-DCMW11T308	• • •	• • •	• • •	• • •
	it. y	2QP-SPMN090304 2QP-SPMN090308			o o	o o
		3QP-TPMN110302			o	o
		3QP-TPMN110304 3QP-TPMN110308			o o	o o
		3QP-TPMN160304 3QP-TPMN160308			o o	o o
		3QP-TPMW080204	•	•	•	•
		3QP-TPMW090202 3QP-TPMW090204	•	•	• •	• •
		3QP-TPMW110202 3QP-TPMW110204	• •	• •	• •	• •
		3QP-TPMW110302 3QP-TPMW110304 3QP-TPMW110308	o • •	• • •	o • •	o • •
		3QP-TPMW130302 3QP-TPMW130304	• •	• •	• •	• •
		3QP-TPMW16T304 3QP-TPMW16T308	• o	•	•	•
		3QP-TPMW160404 3QP-TPMW160408	• •	• •	• •	• •
		2QP-VBMW110304 2QP-VBMW110308	o o	• •	o o	o o
		2QP-VBMW160404 2QP-VBMW160408	• •	• •	• •	• •
	V	2QP-VCMW160404			o	o )



	Shape	Item code	BX90S
		CNMN090308	o
		CNMN090312	o
	m	CNMN120408	o
		CNMN120412	o
		RNMN090300	o
	W	RNMN120400	o
		SNMN090308	o
		SNMN090312	o
		SNMN120308	o
		SNMN120312	o
		SNMN120408	o
		SNMN120412	o
		TNMN110308	o
		TNMN110312	o
		TNMN160408	o
		TNMN160412	o J

BXC90 (coated solid PCBN)


	f Shape	Item code	BXC90
		S-CNGN090308	o
		S-CNGN090312	o
	m	S-CNGN120408	o
		S-CNGN120412	o
		S-RNGN090300	o
	W	S-RNGN120400	o
		S-SNGN090308	o
		S-SNGN090312	o
		S-SNGN120308	o
	■	S-SNGN120312	o
		S-SNGN120408	o
		S-SNGN120412	o
		S-TNGN110308	o
		S-TNGN110312	o
	A	S-TNGN160408	o
		S-TNGN160412	o
