8
Features
1DC an move conveyed goods or materials with
almost any shape or form.
2. Wide operational range, including conveyor
length, transport direction, usage environment,
etc.
3. Can reliably convey goods or materials with
no slippage.
4. Highly durable, highly efficient.
1DM ishandling the chain may cause a loss of
accuracy. Never handle the chain as shown
in the photographs to the right.
2. Rough handling such as throwing or dropping
the chain will cause twisting deformation
and/or a loss of accuracy.
3. Stainless steel chain, in particular, must be
handled with care.
Important Points
1. No slippage is a strong advantage of conveyor
chain, but consideration must be
given in selection when impact resistance is
considered.
2. The mechanical nature
of the chain engaging
the sprocket will cause
speed variations.
Hold the chain so
that it does not
become tangled or
twisted.
Handling the chain
in such a way that it
becomes tangled or
looped around itself
will cause it to
become twisted
and lead to a loss
of accuracy.
Applying excessive
load in the direction
that the chain is
twisted will cause
torsion and lead to
a loss of accuracy.

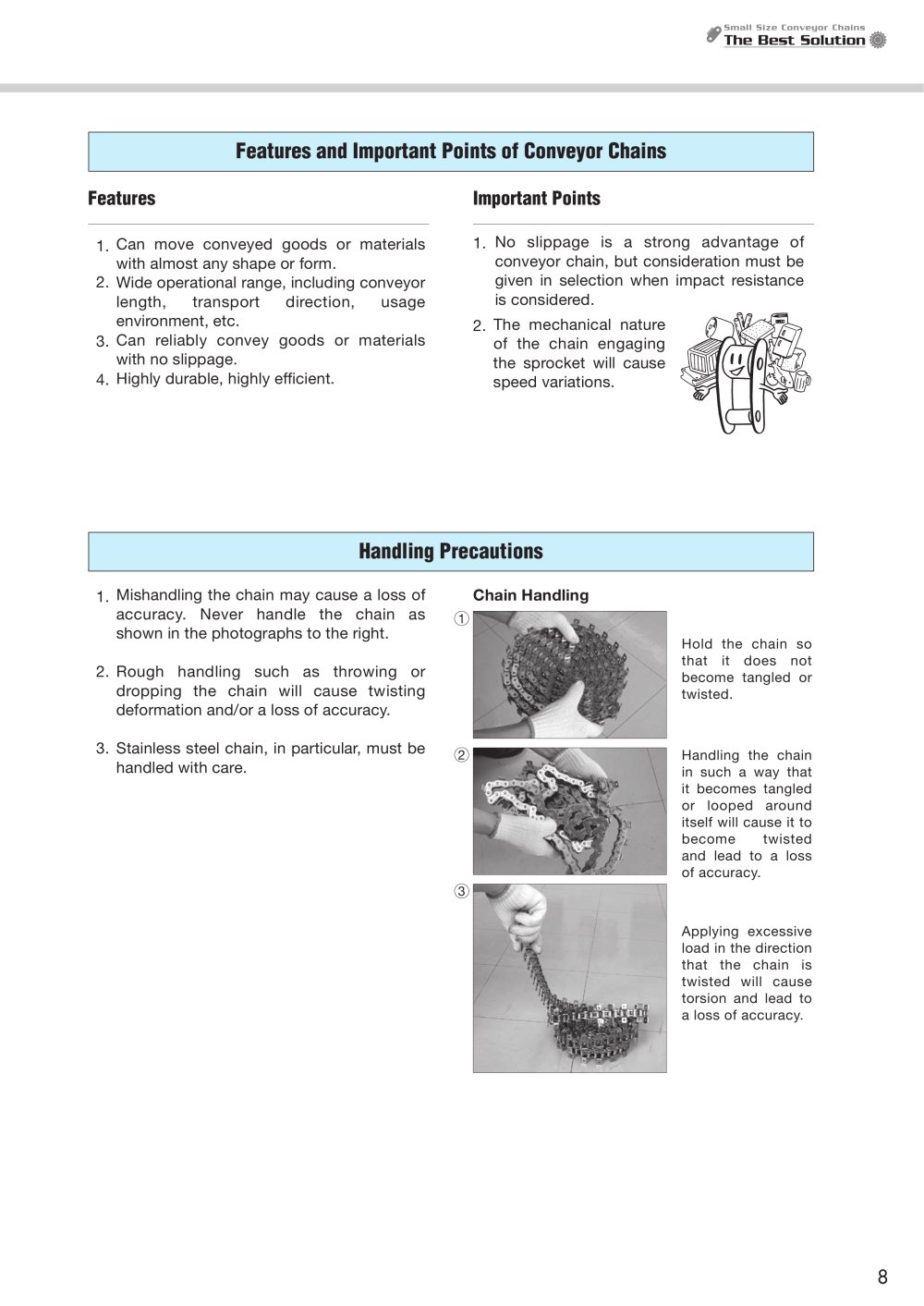

Features and Important Points of Conveyor Chains
Handling Precautions
Chain Handling
