TSUBAKI Small Size Conveyor Chain - Tsubakimoto Chain - #49

Text version of the page

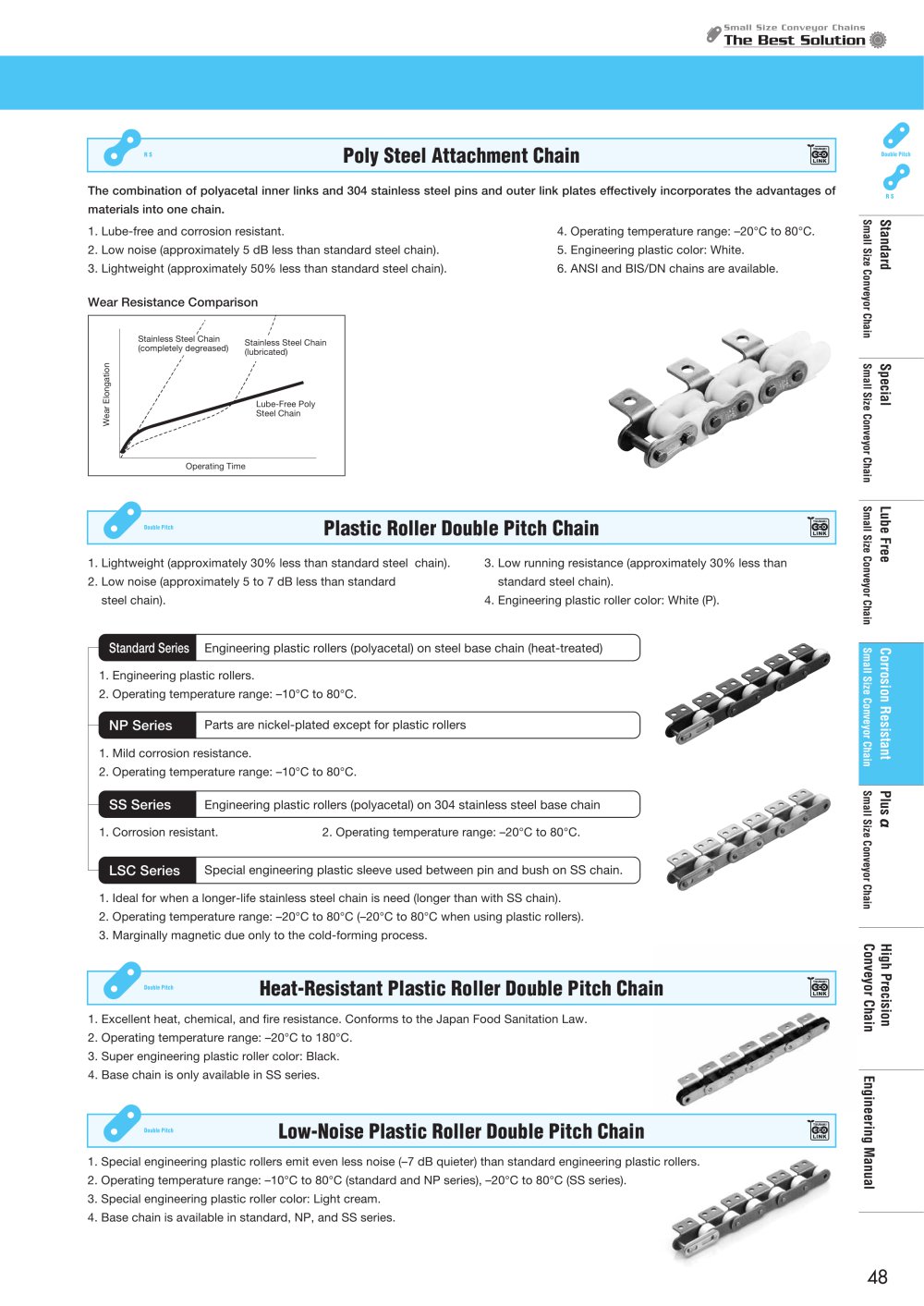

R S Double Pitch Standard Small Size Conveyor Chain Special Small Size Conveyor Chain Lube Free Small Size Conveyor Chain Corrosion Resistant Small Size Conveyor Chain Plus á Small Size Conveyor Chain High Precision Conveyor Chain Engineering Manual 48 Poly Steel Attachment Chain Plastic Roller Double Pitch Chain Standard Series Engineering plastic rollers (polyacetal) on steel base chain (heat-treated) 1. Engineering plastic rollers. 2. Operating temperature range: –10°C to 80°C. NP Series Parts are nickel-plated except for plastic rollers 1. Mild corrosion resistance. 2. Operating temperature range: –10°C to 80°C. SS Series Engineering plastic rollers (polyacetal) on 304 stainless steel base chain 1. Corrosion resistant. 2. Operating temperature range: –20°C to 80°C. Heat-Resistant Plastic Roller Double Pitch Chain 1. Excellent heat, chemical, and fire resistance. Conforms to the Japan Food Sanitation Law. 2. Super engineering plastic roller color: Black. 3. Operating temperature range: –20°C to 180°C. 4. Base chain is only available in SS series. Low-Noise Plastic Roller Double Pitch Chain 1. Special engineering plastic rollers emit even less noise (–7 dB quieter) than standard engineering plastic rollers. 2. Special engineering plastic roller color: Light cream. 3. Base chain is available in standard, NP, and SS series. 4. Operating temperature range: –10°C to 80°C (standard and NP series), –20°C to 80°C (SS series). R S 1. Lube-free and corrosion resistant. 2. Low noise (approximately 5 dB less than standard steel chain). 3. Lightweight (approximately 50% less than standard steel chain). 4. Operating temperature range: –20°C to 80°C. 5. Engineering plastic color: White. 1. Lightweight (approximately 30% less than standard steel chain). 2. Low noise (approximately 5 to 7 dB less than standard steel chain). 3. Low running resistance (approximately 30% less than standard steel chain). 4. Engineering plastic roller color: White (P). Double Pitch Double Pitch Double Pitch Wear Resistance Comparison The combination of polyacetal inner links and 304 stainless steel pins and outer link plates effectively incorporates the advantages of materials into one chain. Stainless Steel Chain (completely degreased) Operating Time Stainless Steel Chain (lubricated) Lube-Free Poly Steel Chain Wear Elongation
