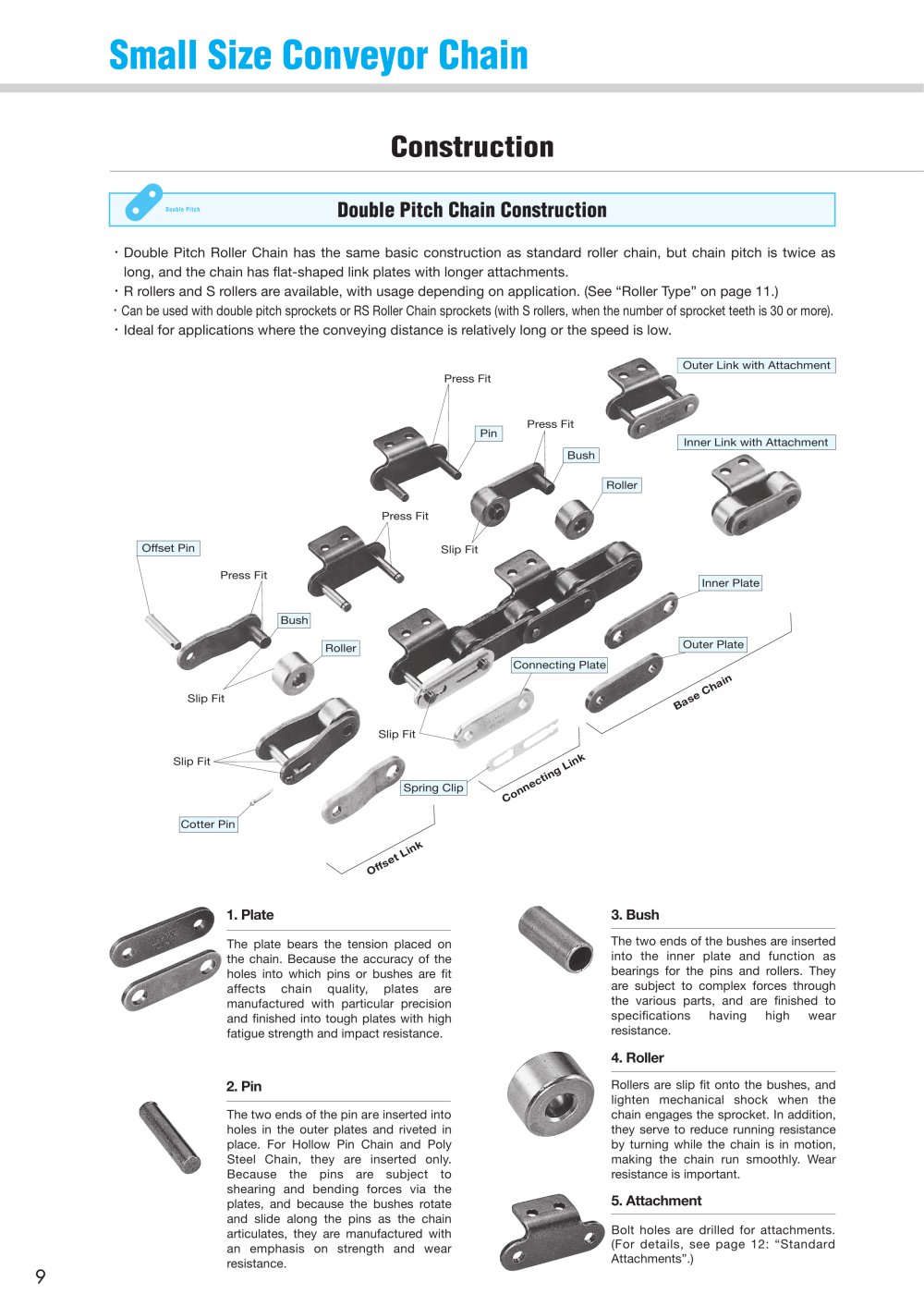

3. Bush 4. Roller 5. Attachment Bolt holes are drilled for attachments. (For details, see page 12: “Standard Attachments”.) Small Size Conveyor Chain Construction 1. Plate 2. Pin Double Pitch Double Pitch Chain Construction 9 Offset Link Connecting Link Base Chain Inner Link with Attachment Bush Roller Pin Offset Pin Roller Cotter Pin Inner Plate Outer Plate Connecting Plate Bush Press Fit Slip Fit Slip Fit Slip Fit Press Fit Press Fit Slip Fit �E Double Pitch Roller Chain has the same basic construction as standard roller chain, but chain pitch is twice as long, and the chain has flat-shaped link plates with longer attachments. �E R rollers and S rollers are available, with usage depending on application. (See “Roller Type” on page 11.) �E Can be used with double pitch sprockets or RS Roller Chain sprockets (with S rollers, when the number of sprocket teeth is 30 or more). �E Ideal for applications where the conveying distance is relatively long or the speed is low. Outer Link with Attachment Press Fit Spring Clip The plate bears the tension placed on the chain. Because the accuracy of the holes into which pins or bushes are fit affects chain quality, plates are manufactured with particular precision and finished into tough plates with high fatigue strength and impact resistance. The two ends of the bushes are inserted into the inner plate and function as bearings for the pins and rollers. They are subject to complex forces through the various parts, and are finished to specifications having high wear resistance. Rollers are slip fit onto the bushes, and lighten mechanical shock when the chain engages the sprocket. In addition, they serve to reduce running resistance by turning while the chain is in motion, making the chain run smoothly. Abrasion resistance is important. The two ends of the pin are inserted into holes in the outer plates and riveted in place. For Hollow Pin Chain and Poly Steel Chain, they are inserted only. Because the pins are subject to shearing and bending forces via the plates, and because the bushes rotate and slide along the pins as the chain articulates, they are manufactured with an emphasis on strength and abrasion resistance.
