Text version of the page

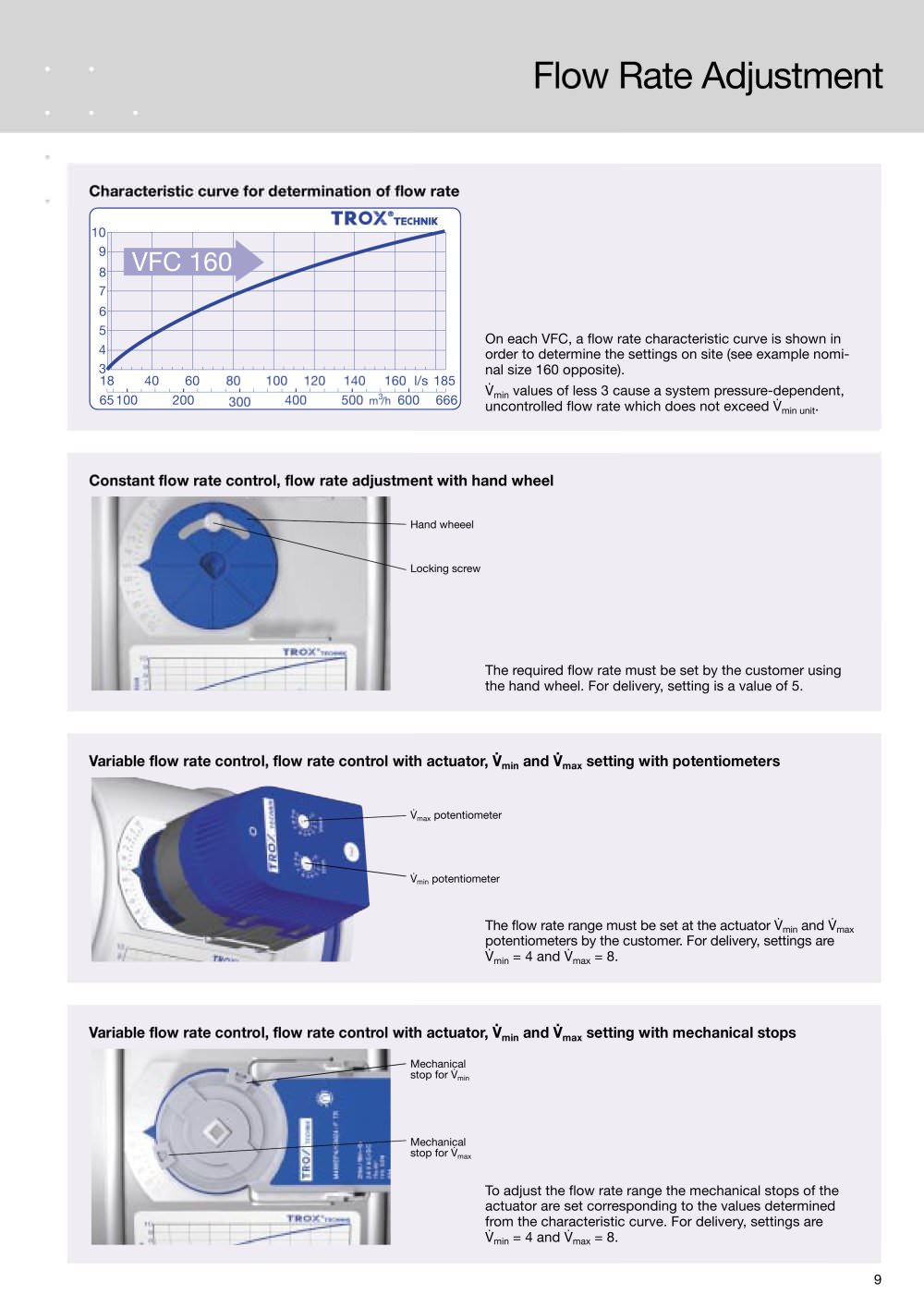

| Flow Rate Adjustment | ||||||||||
| Characteristic curve for determination of flow rate | ||||||||||
| On each VFC, a flow rate characteristic curve is shown in order to determine the settings on site (see example nominal size 160 opposite). Vmin values of less 3 cause a system pressure-dependent, uncontrolled flow rate which does not exceed Vmin unit. | ||||||||||
