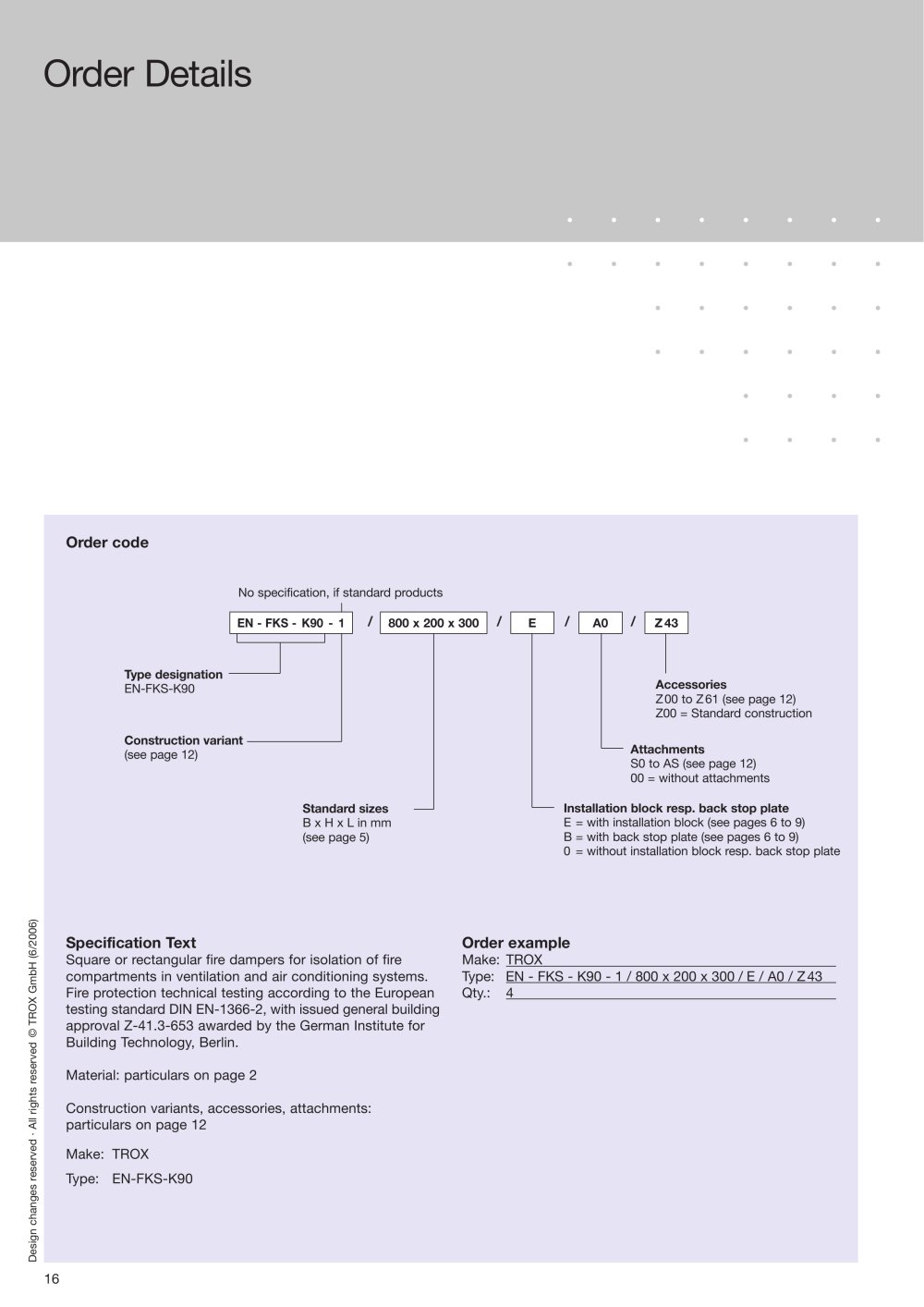

16 Design changes reserved · All rights reserved © TROX GmbH ( 6/2006) Order Details No specification, if standard products / / / / Type designation EN-FKS-K90 Construction variant (see page 12) Order code Accessories Z00 to Z 61 (see page 12) Z00 = Standard construction Attachments S0 to AS (see page 12) 00 = without attachments Standard sizes B x H x L in mm (see page 5) Specification Text Square or rectangular fire dampers for isolation of fire compartments in ventilation and air conditioning systems. Fire protection technical testing according to the European testing standard DIN EN-1366-2, with issued general building approval Z-41.3-653 awarded by the German Institute for Building Technology, Berlin. Material: particulars on page 2 Construction variants, accessories, attachments: particulars on page 12 Make: TROX Type: EN-FKS-K90 Order example Make: TROX Type: EN - FKS - K90 - 1 / 800 x 200 x 300 / E / A0 / Z43 Qty.: 4 EN - FKS - K90 - 1 800 x 200 x 300 E A0 Z43 Installation block resp. back stop plate E = with installation block (see pages 6 to 9) B = with back stop plate (see pages 6 to 9) 0 = without installation block resp. back stop plate
