Aerodynamic Data

1

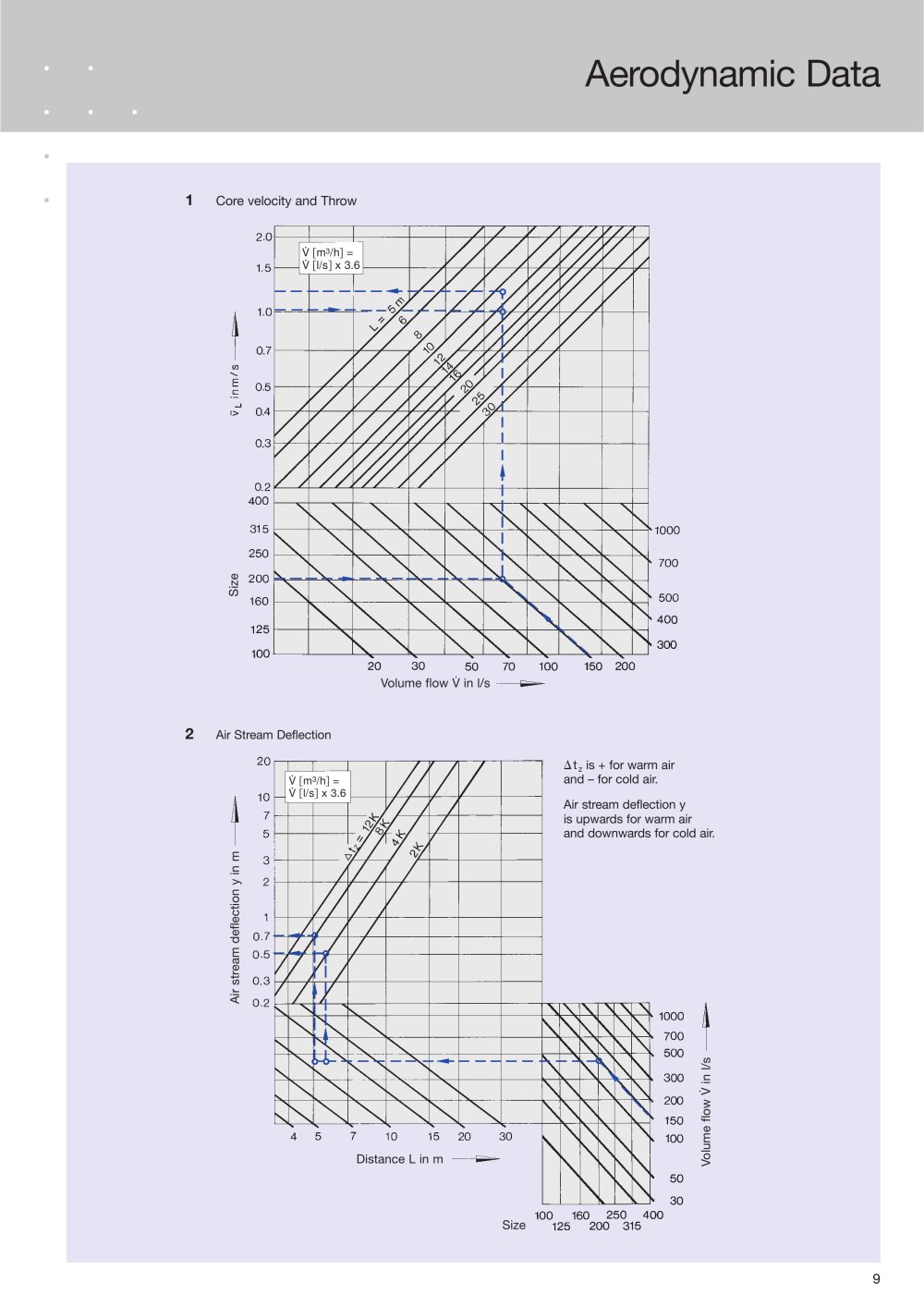

Core velocity and Throw

V· m 3 /h =V· l/s x 3.6 Size Volume flow ‡ in l/s

2

Air Stream Deflection t
z is + for warm airand – for cold air.Air stream deflection yis upwards for warm air and downwards for cold air.
V· m 3 /h =V· l/s x 3.6 Air stream deflection y in m in l/s ‡ Distance L in m
Volume flow Size
