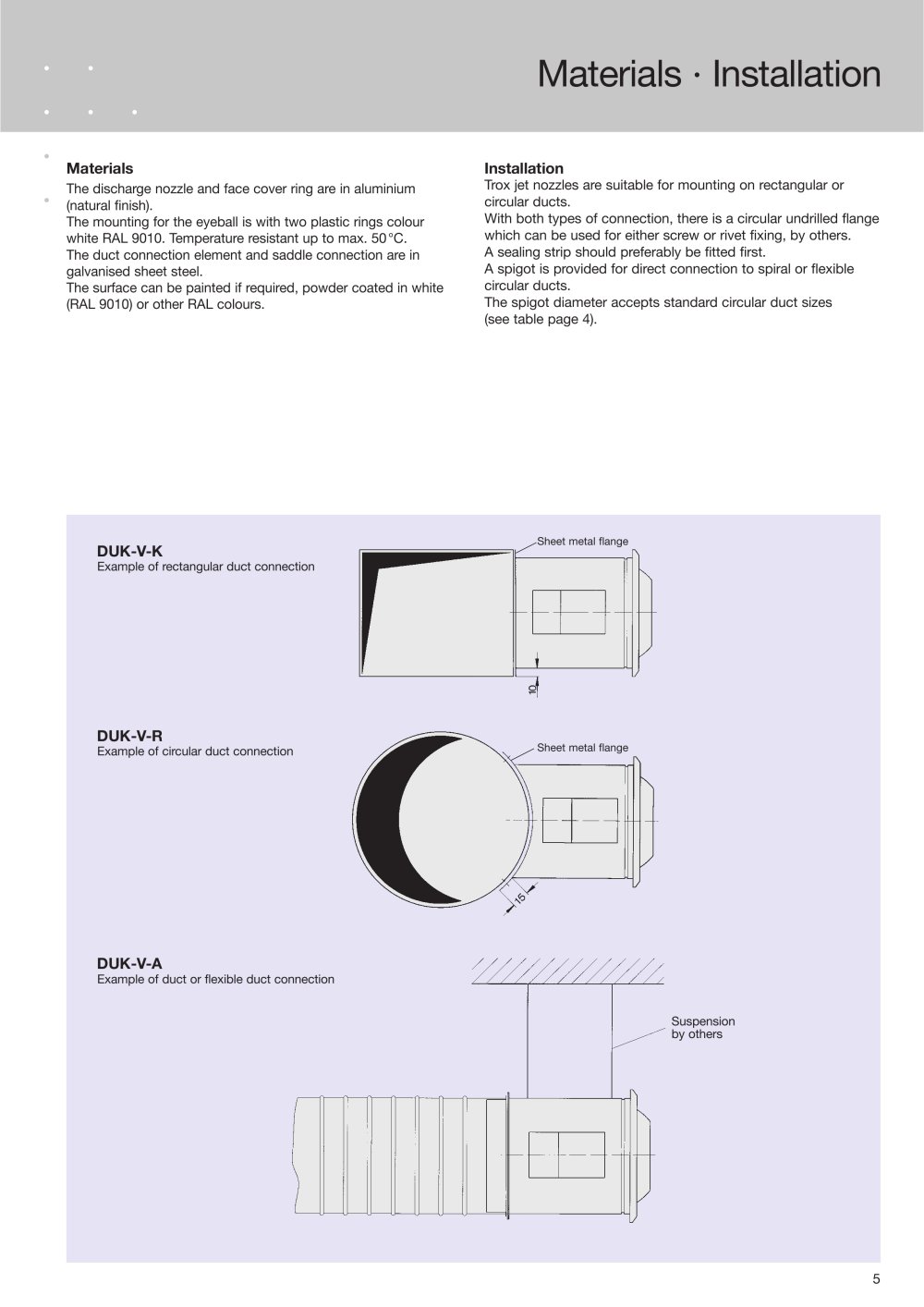

Materials · Installation

Materials Installation
The discharge nozzle and face cover ring are in aluminium (natural finish). The mounting for the eyeball is with two plastic rings colour white RAL 9010. Temperature resistant up to max. Trox jet nozzles are suitable for mounting on rectangular orcircular ducts. With both types of connection, there is a circular undrilled flange which can be used for either screw or rivet fixing, by others. A sealing strip should preferably be fitted first. A spigot is provided for direct connection to spiral or flexible circular ducts. The spigot diameter accepts standard circular duct sizes (see table page 4). 50°C. The duct connection element and saddle connection are in galvanised sheet steel. The surface can be painted if required, powder coated in white (RAL 9010) or other RAL colours. DUK-V-K
Sheet metal flange Sheet metal flange Example of rectangular duct connection DUK-V-R
Example of circular duct connection DUK-V-A
Example of duct or flexible duct connectionSuspensionby others 5
