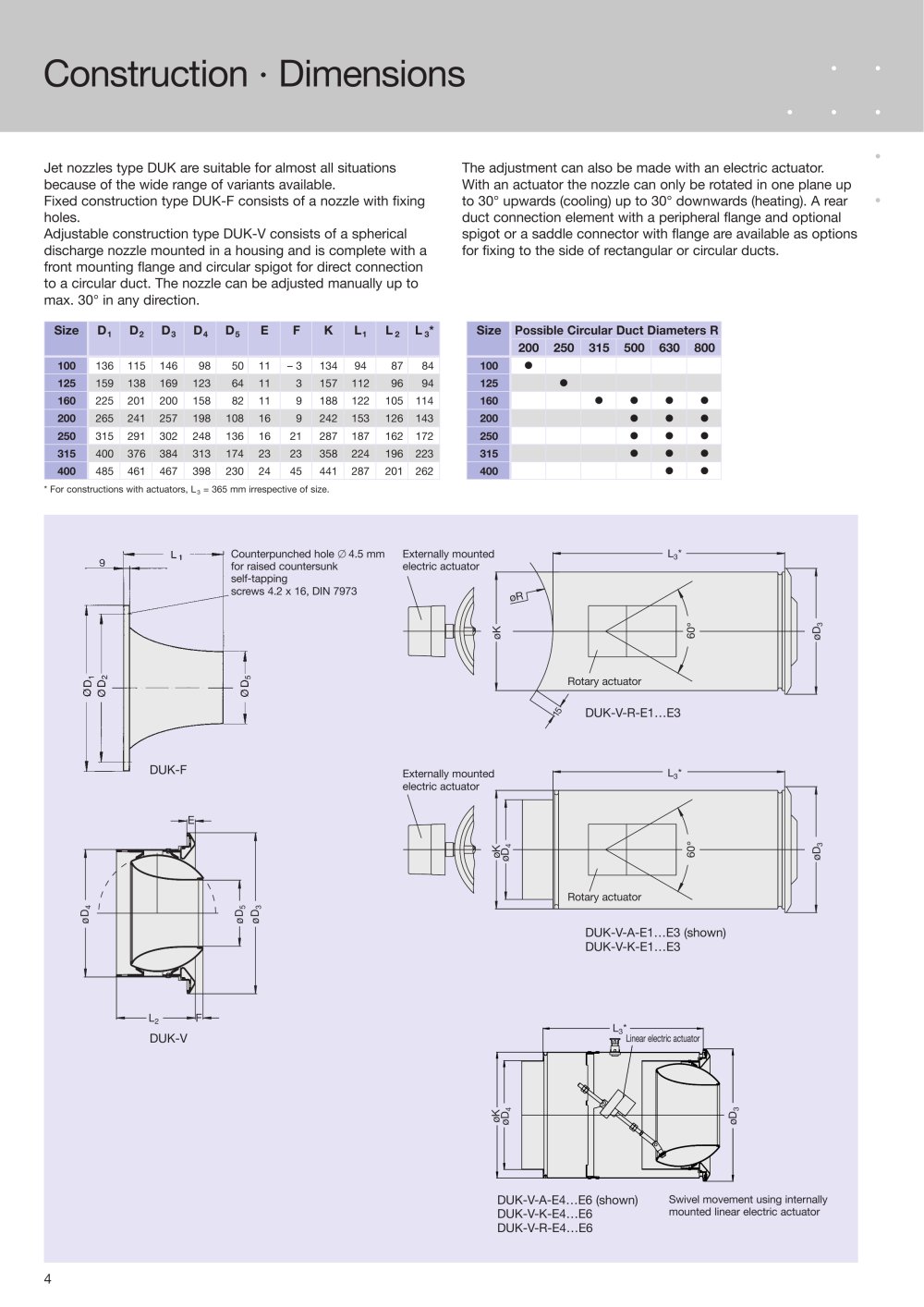

| | | Construction • Dimensions | | |
| | | |
| | | Jet nozzles type DUK are suitable for almost all situations because of the wide range of variants available. Fixed construction type DUK-F consists of a nozzle with fixing holes. Adjustable construction type DUK-V consists of a spherical discharge nozzle mounted in a housing and is complete with a front mounting flange and circular spigot for direct connection to a circular duct. The nozzle can be adjusted manually up to max. 30° in any direction. | | The adjustment can also be made with an electric actuator. With an actuator the nozzle can only be rotated in one plane up to 30° upwards (cooling) up to 30° downwards (heating). A rear duct connection element with a peripheral flange and optional spigot or a saddle connector with flange are available as options for fixing to the side of rectangular or circular ducts. | | |
| | | |
| | | |
| | | | | | | | | | | | | | | | | | | | Size | D1 | D2 | D3 | D4 | D5 | E | F | K | L1 | L2 | 1 * | | | | 100 | 136 | 115 | 146 | 98 | 50 | 11 | - 3 | 134 | 94 | 87 | 84 | | | | 125 | 159 | 138 | 169 | 123 | 64 | 11 | 3 | 157 | 112 | 96 | 94 | | | | 160 | 225 | 201 | 200 | 158 | 82 | 11 | 9 | 188 | 122 | 105 | 114 | | | | 200 | 265 | 241 | 257 | 198 | 108 | 16 | 9 | 242 | 153 | 126 | 143 | | | | 250 | 315 | 291 | 302 | 248 | 136 | 16 | 21 | 287 | 187 | 162 | 172 | | | | 315 | 400 | 376 | 384 | 313 | 174 | 23 | 23 | 358 | 224 | 196 | 223 | | | | 400 | 485 | 461 | 467 | 398 | 230 | 24 | 45 | 441 | 287 | 201 | 262 | | | | | | | | | | | | | | | | | | | |
| | | Size Possible Circular Duct Diameters R | | |
| | | |
| | | | | | | | | | | | | | 200 | 250 | 315 | 500 630 800 | | | | 100 | • | | | | | | | 125 | | • | | | | | | 160 | | | • | • •• | | | | 200 | | | | • •• | | | | 250 | | | | ••• | | | | 315 | | | | • •• | | | | 400 | | | | | | | | | | | | | | | | |
| | | |
| | | |
| | | For constructions with actuators, L3 = 365 mm irrespective of size. | | |
| | | |
| | | Counterpunched hole 0 4.5 mm Externally mounted for raised countersunk electric actuator self-tapping \ screws 4.2 x 16, DIN 7973 \ | | L3* " | | |
| | | Li--- | | |
| | | | |
| | | |
| | | duk-v-r-e1...e3 | | |
| | | |
| | | duk-f | | |
| | | L3* | | |
| | | Externally mounted electric actuator | | |
| | | |
| | | |
| | | |
| | | E | | |
| | | |
| | | Rotary actuator | | |
| | | |
| | | DUK-V-A-E1...E3 (shown) DUK-V-K-E1...E3 | | |
| | | |
| | | -l2- duk-v | | |
| | | -L3*: | | |
| | | Linear electric actuator | | |
| | | |
| | | |
| | | |
| | | DUK-V-A-E4...E6 (shown) Swivel movement using internally DUK-V-K-E4...E6 mounted linear electric actuator DUK-V-R-E4.E6 | | |
| | | |
| | | | | |
| | | |
| | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | |
