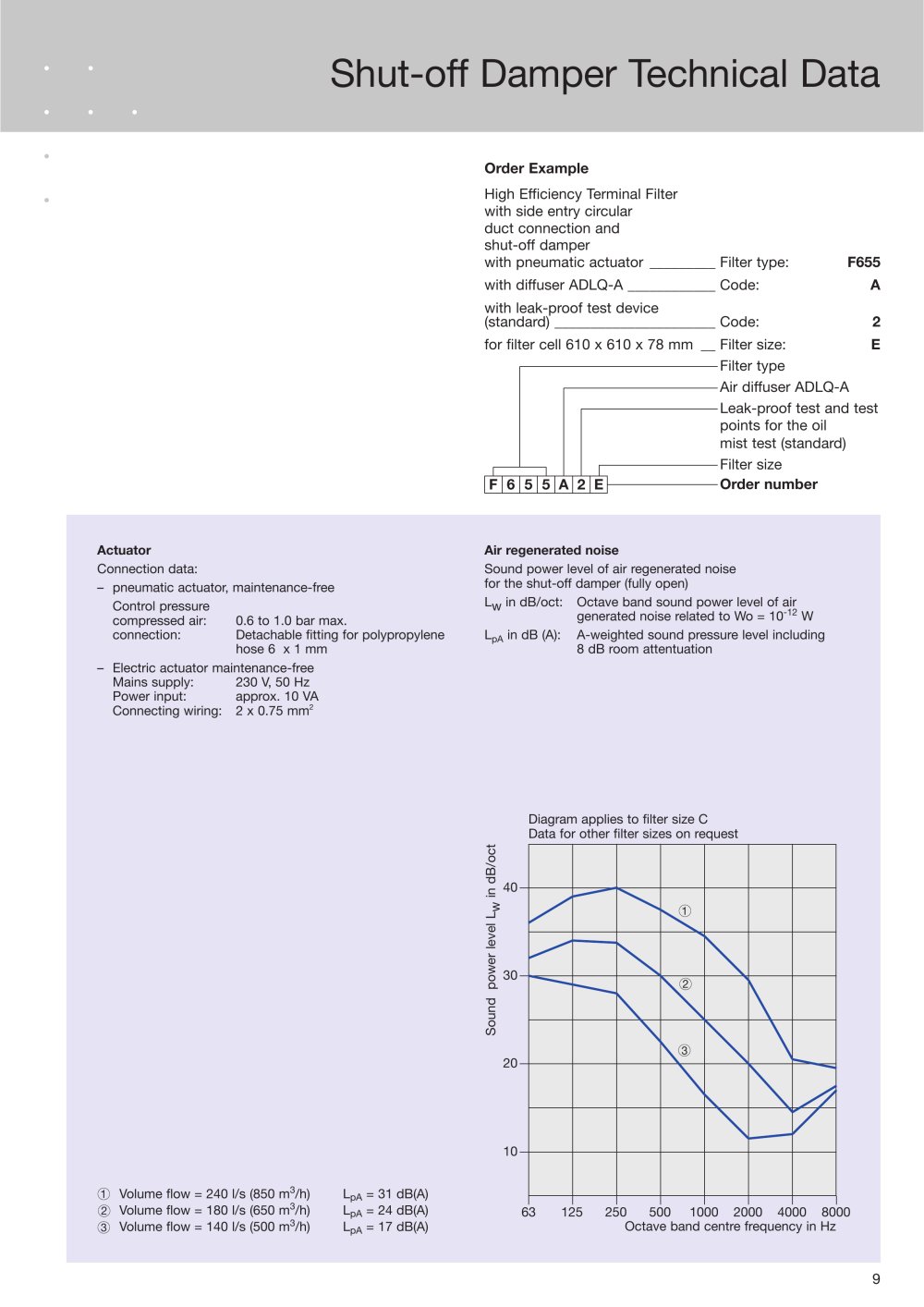

9 40 30 20 10 2 1 3 Shut-off Damper Technical Data Order Example High Efficiency Terminal Filter with side entry circular duct connection and shut-off damper with pneumatic actuator _________ Filter type: F655 with diffuser ADLQ-A ____________ Code: A with leak-proof test device (standard) ______________________ Code: 2 for filter cell 610 x 610 x 78 mm __ Filter size: E Filter type Air diffuser ADLQ-A Leak-proof test and test points for the oil mist test (standard) Filter size F 6 5 5 A 2 E Order number Actuator Connection data: – pneumatic actuator, maintenance-free Control pressure compressed air: 0.6 to 1.0 bar max. connection: Detachable fitting for polypropylene hose 6 x 1 mm – Electric actuator maintenance-free Mains supply: 230 V, 50 Hz Power input: approx. 10 VA Connecting wiring: 2 x 0.75 mm2 Air regenerated noise Sound power level of air regenerated noise for the shut-off damper (fully open) Lw in dB/oct: Octave band sound power level of air generated noise related to Wo = 10-12 W LpA in dB (A): A-weighted sound pressure level including 8 dB room attentuation 63 125 250 500 1000 2000 4000 8000 Octave band centre frequency in Hz Diagram applies to filter size C Data for other filter sizes on request Sound power level Lw in dB/oct Volume flow = 240 l/s (850 m3/h) LpA = 31 dB(A) Volume flow = 180 l/s (650 m3/h) LpA = 24 dB(A) Volume flow = 140 l/s (500 m3/h) LpA = 17 dB(A) 2 1 3
