12
F 6 5 0 A 1 E

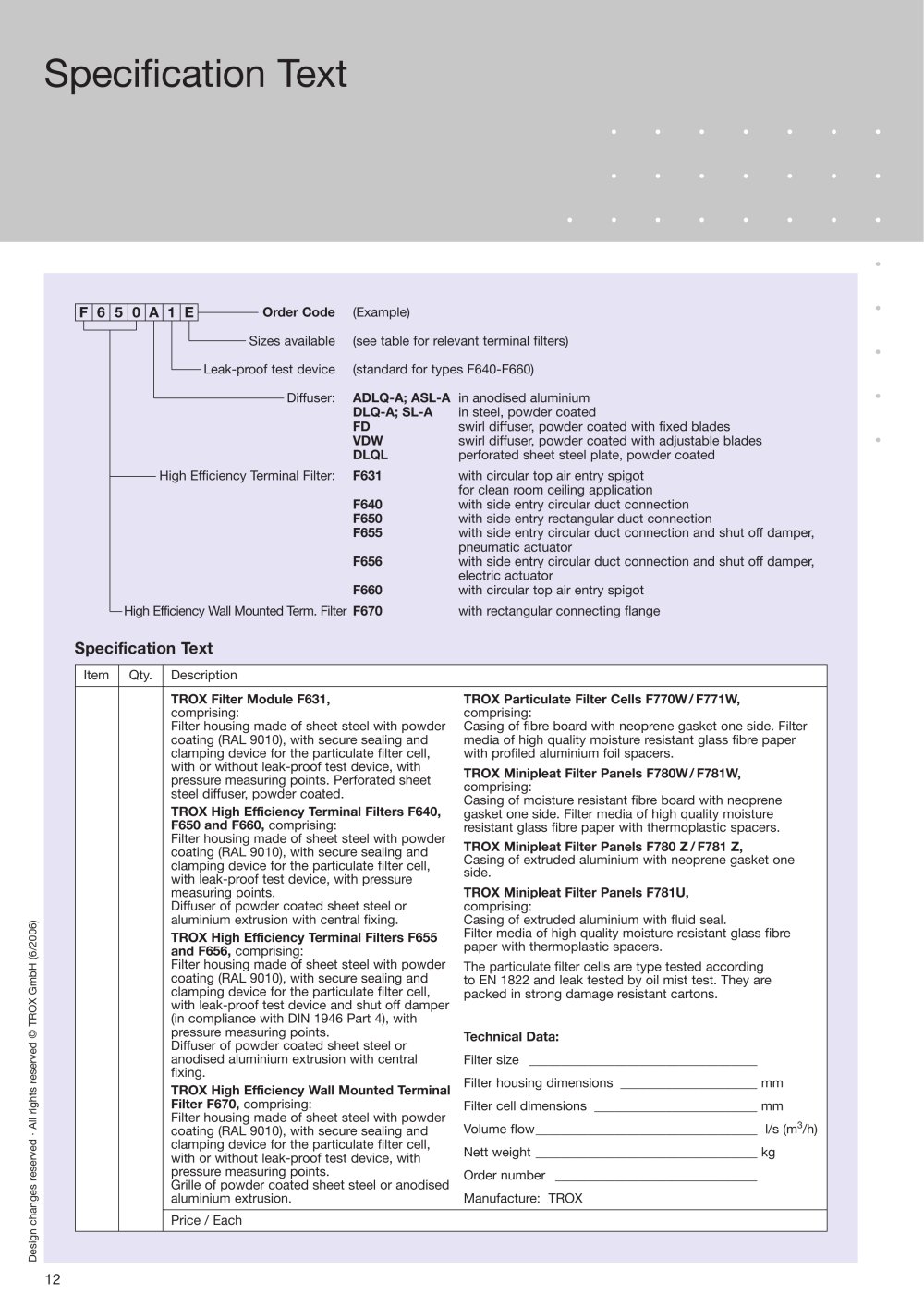

Specification Text
Design changes reserved · All rights reserved © TROX GmbH (6/2006)
TROX Filter Module F631,
comprising:
Filter housing made of sheet steel with powder
coating (RAL 9010), with secure sealing and
clamping device for the particulate
filter cell,
with or without leak-proof test device, with
pressure measuring points. Perforated sheet
steel diffuser, powder coated.
TROX High Efficiency Terminal Filters F640,
F650 and F660, comprising:
Filter housing made of sheet steel with powder
coating (RAL 9010), with secure sealing and
clamping device for the particulate
filter cell,
with leak-proof test device, with pressure
measuring points.
Diffuser of powder coated sheet steel or
aluminium extrusion with central fixing.
TROX High Efficiency Terminal Filters F655
and F656, comprising:
Filter housing made of sheet steel with powder
coating (RAL 9010), with secure sealing and
clamping device for the particulate
filter cell,
with leak-proof test device and shut off damper
(in compliance with DIN 1946 Part 4), with
pressure measuring points.
Diffuser of powder coated sheet steel or
anodised aluminium extrusion with central
fixing.
TROX High Efficiency Wall Mounted Terminal
Filter F670, comprising:
Filter housing made of sheet steel with powder
coating (RAL 9010), with secure sealing and
clamping device for the particulate
filter cell,
with or without leak-proof test device, with
pressure measuring points.
Grille of powder coated sheet steel or anodised
aluminium extrusion.
TROX Particulate Filter Cells F770W/ F771W,
comprising:
Casing of fibre board with neoprene gasket one side. Filter
media of high quality moisture resistant glass fibre paper
with profiled aluminium foil spacers.
TROX Minipleat Filter Panels F780W/ F781W,
comprising:
Casing of moisture resistant fibre board with neoprene
gasket one side. Filter media of high quality moisture
resistant glass fibre paper with thermoplastic spacers.
TROX Minipleat Filter Panels F780 Z / F781 Z,
Casing of extruded aluminium with neoprene gasket one
side.
TROX Minipleat Filter Panels F781U,
comprising:
Casing of extruded aluminium with fluid seal.
Filter media of high quality moisture resistant glass fibre
paper with thermoplastic spacers.
The particulate
filter cells are type tested according
to EN 1822 and leak tested by oil mist test. They are
packed in strong damage resistant cartons.
Technical Data:
Filter size ___________________________________
Filter housing dimensions _____________________ mm
Filter cell dimensions _________________________ mm
Volume flow__________________________________ l/s (m3/h)
Nett weight __________________________________ kg
Order number _______________________________
Manufacture: TROX
Specification Text
Item Qty. Description
Price / Each
Order Code (Example)
Sizes available (see table for relevant terminal
filters)
Leak-proof test device (standard for types F640-F660)
Diffuser: ADLQ-A; ASL-A in anodised aluminium
DLQ-A; SL-A in steel, powder coated
FD swirl diffuser, powder coated with fixed blades
VDW swirl diffuser, powder coated with adjustable blades
DLQL perforated sheet steel plate, powder coated
High Efficiency Terminal Filter: F631 with circular top air entry spigot
for clean room ceiling application
F640 with side entry circular duct connection
F650 with side entry rectangular duct connection
F655 with side entry circular duct connection and shut off damper,
pneumatic actuator
F656 with side entry circular duct connection and shut off damper,
electric actuator
F660 with circular top air entry spigot
High Efficiency Wall Mounted Term. Filter F670 with rectangular connecting flange
