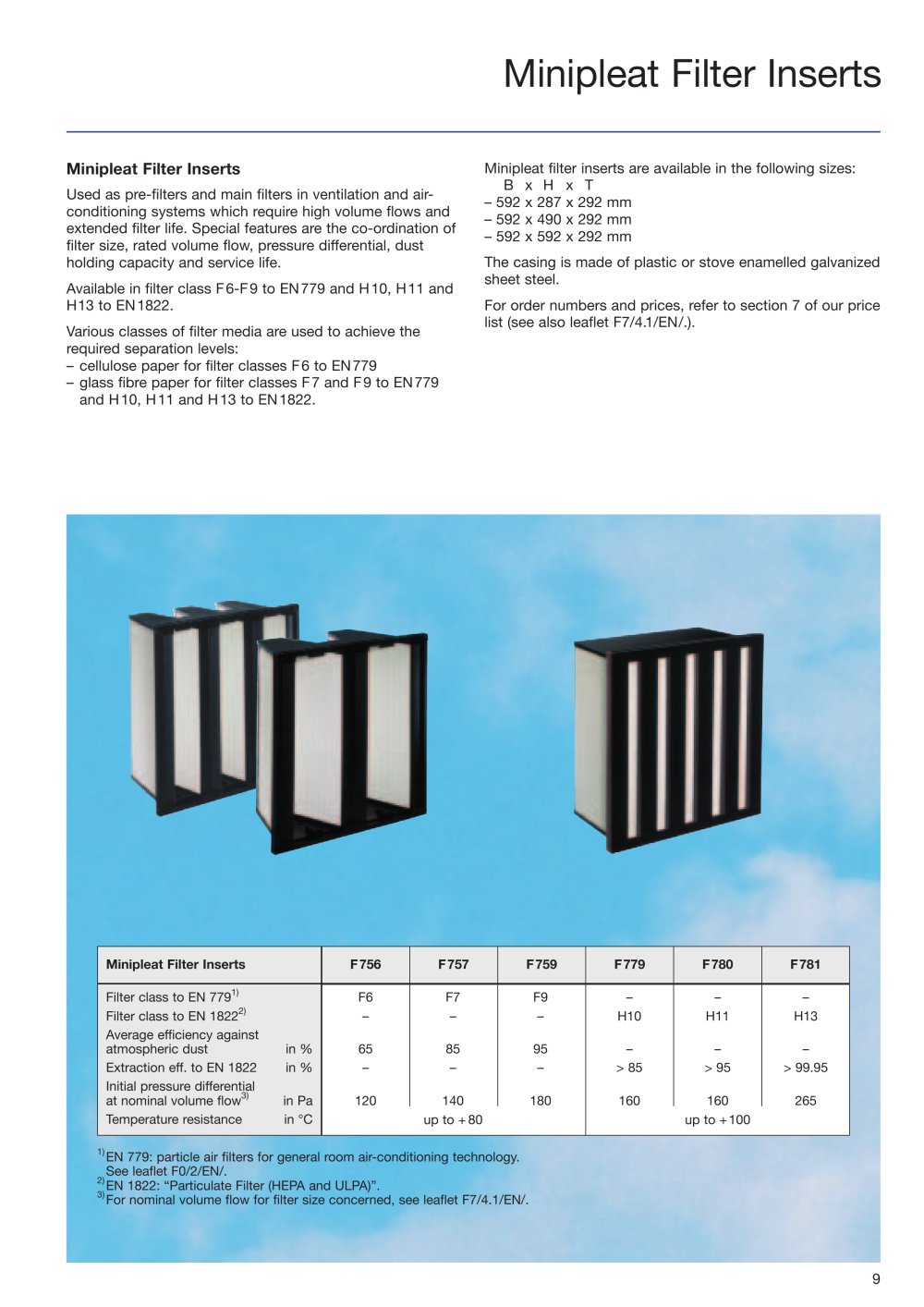

| Minipleat Filter Inserts | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Minipleat filter inserts are available in the following sizes: Bx H xT - 592 x 287 x 292 mm - 592 x 490 x 292 mm - 592 x 592 x 292 mm The casing is made of plastic or stove enamelled galvanized sheet steel. For order numbers and prices, refer to section 7 of our price list (see also leaflet F7/4.1/EN/.). | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Minipleat Filter Inserts Used as pre-filters and main filters in ventilation and air-conditioning systems which require high volume flows and extended filter life. Special features are the co-ordination of filter size, rated volume flow, pressure differential, dust holding capacity and service life. Available in filter class F6-F9 to EN779 and H10, H11 and H13 to EN1822. Various classes of filter media are used to achieve the required separation levels: - cellulose paper for filter classes F6 to EN779 - glass fibre paper for filter classes F7 and F9 to EN779 and H10, H11 and H13 to EN 1822. | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| EN 779: particle air filters for general room air-conditioning technology. See leaflet F0/2/EN/. EN 1822: "Particulate Filter (HEPA and ULPA)". For nominal volume flow for filter size concerned, see leaflet F7/4.1/EN/. | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
