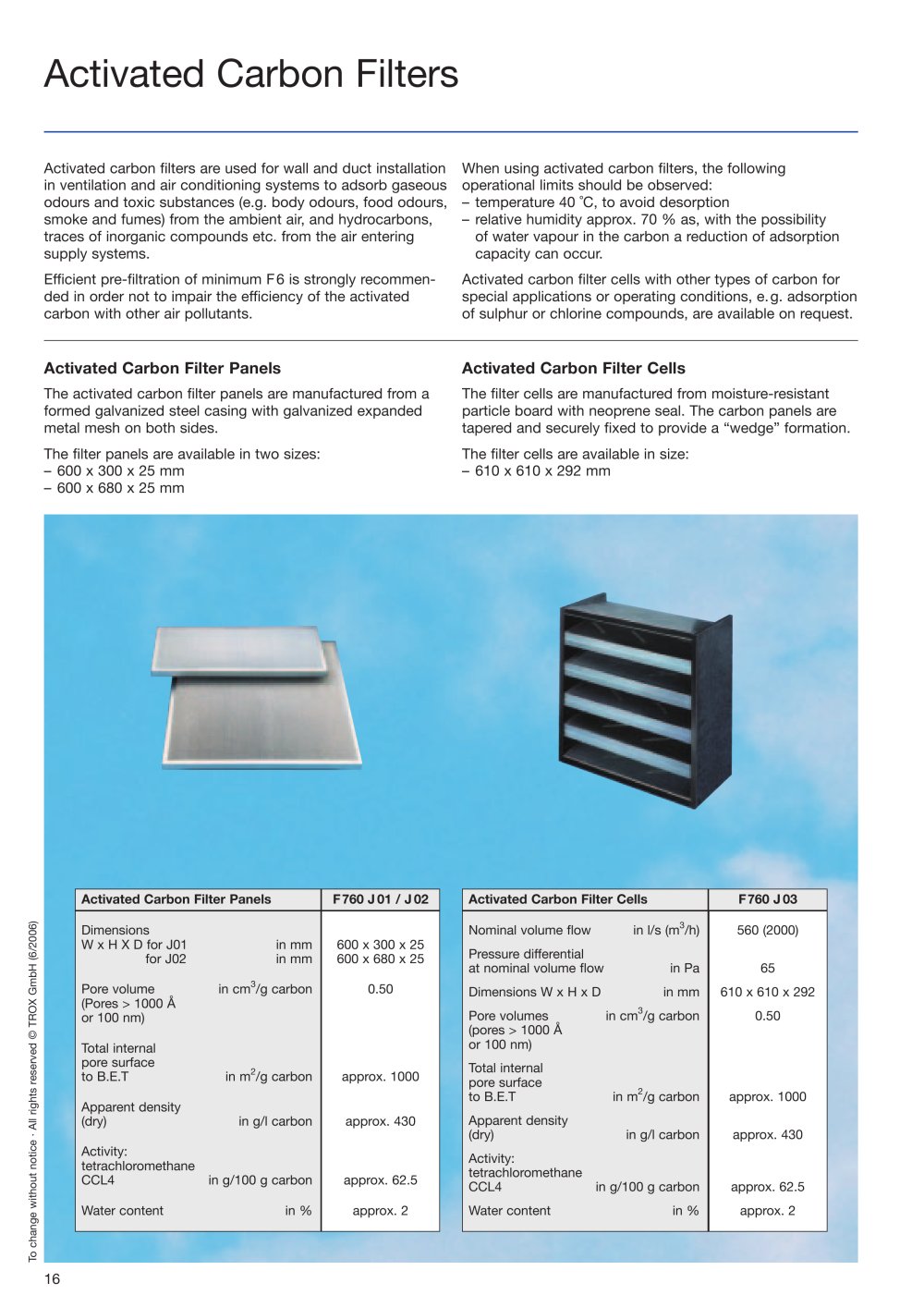

| | | Activated carbon filters are used for wall and duct installation in ventilation and air conditioning systems to adsorb gaseous odours and toxic substances (e.g. body odours, food odours, smoke and fumes) from the ambient air, and hydrocarbons, traces of inorganic compounds etc. from the air entering supply systems. Efficient pre-filtration of minimum F6 is strongly recommended in order not to impair the efficiency of the activated carbon with other air pollutants. | | When using activated carbon filters, the following operational limits should be observed: - temperature 40 °C, to avoid desorption - relative humidity approx. 70 % as, with the possibility of water vapour in the carbon a reduction of adsorption capacity can occur. Activated carbon filter cells with other types of carbon for special applications or operating conditions, e. g. adsorption of sulphur or chlorine compounds, are available on request. | | |
| | | Activated Carbon Filter Panels The activated carbon filter panels are manufactured from a formed galvanized steel casing with galvanized expanded metal mesh on both sides. The filter panels are available in two sizes: - 600 x 300 x 25 mm - 600 x 680 x 25 mm | | Activated Carbon Filter Cells The filter cells are manufactured from moisture-resistant particle board with neoprene seal. The carbon panels are tapered and securely fixed to provide a "wedge" formation. The filter cells are available in size: - 610 x 610 x 292 mm | | |
| | | | | | | | | | | Activated Carbon Filter Panels | F760 J01 / J 02 | | | | Dimensions W x H X D for J01 for J02 | in mm in mm | 600 x 300 x 25 600 x 680 x 25 | | | | Pore volume (Pores > 1000 Ä or 100 nm) | in cm3/g carbon | 0.50 | | | | Total internal pore surface to B.E.T | in m2/g carbon | approx. 1000 | | | | Apparent density (dry) | in g/l carbon | approx. 430 | | | | Activity: tetrachloromethane CCL4 | in g/100 g carbon | approx. 62.5 | | | | Water content | in % | approx. 2 | | | | | | | | | | | | | | | | | | Activated Carbon Filter Cells | F760 J03 | | | | Nominal volume flow | in l/s (m3/h) | 560 (2000) | | | | Pressure differential at nominal volume flow | in Pa | 65 | | | | Dimensions W x H x D | in mm | 610 x 610 x 292 | | | | Pore volumes (pores > 1000 Ä or 100 nm) | in cm3/g carbon | 0.50 | | | | Total internal pore surface to B.E.T | in m2/g carbon | approx. 1000 | | | | Apparent density (dry) | in g/l carbon | approx. 430 | | | | Activity: tetrachloromethane CCL4 in g/100 g carbon | approx. 62.5 | | | | Water content | in % | approx. 2 | | | | | | | | | | |
