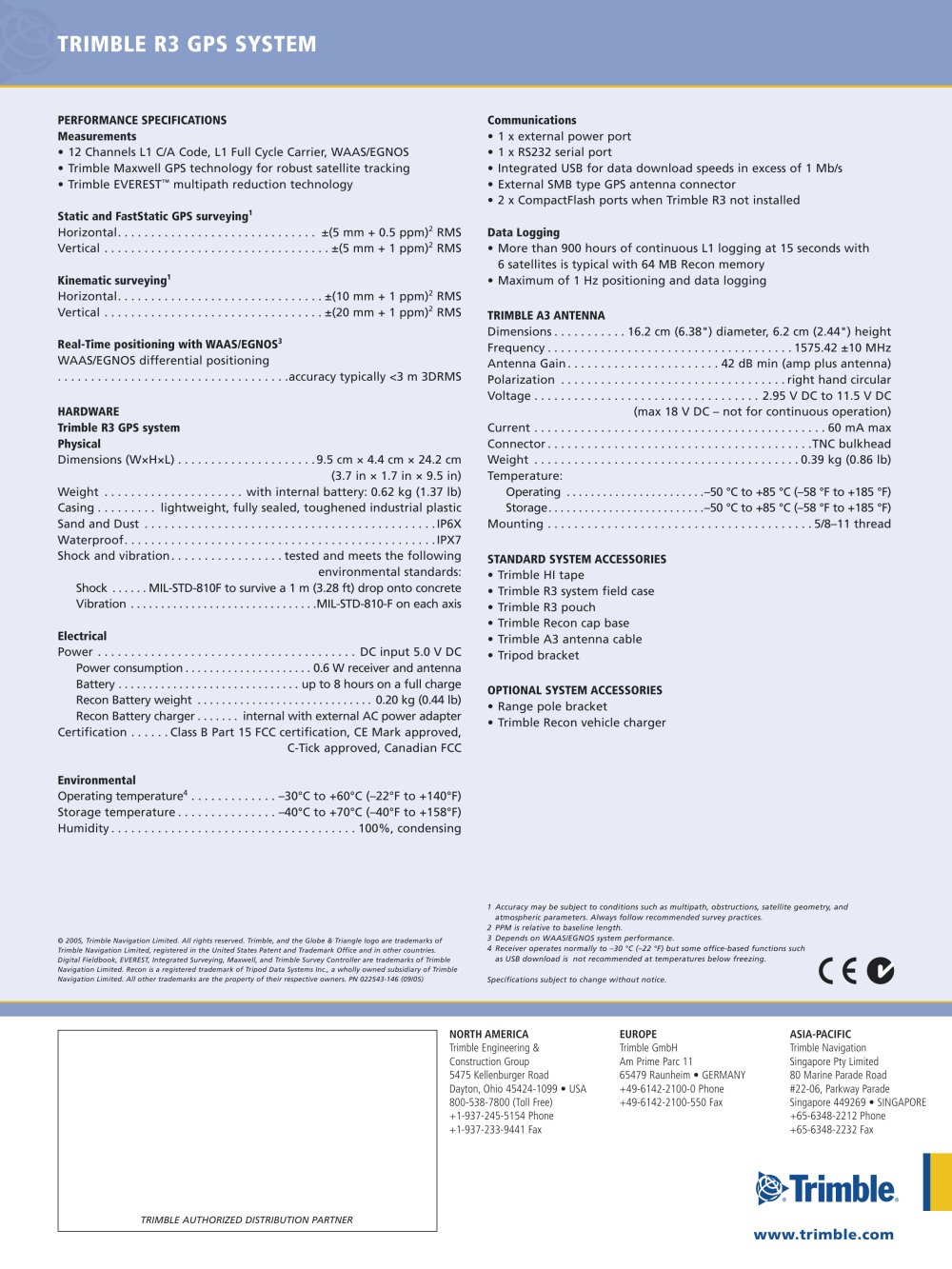

| | TRIMBLE R3 GPS SYSTE | | |||||
| | |||||||
| PERFORMANCE SPECIFICATIONS Measurements • 12 Channels L1 C/A Code, L1 Full Cycle Carrier, WAAS/EGNOS • Trimble Maxwell GPS technology for robust satellite tracking • Trimble EVEREST™ multipath reduction technology Static and FastStatic GPS surveying1 Horizontal.............................. ±(5 mm + 0.5 ppm)2 RMS Vertical..................................±(5 mm + 1 ppm)2 RMS Kinematic surveying1 Horizontal...............................±(10 mm + 1 ppm)2 RMS Vertical.................................±(20 mm + 1 ppm)2 RMS Real-Time positioning with WAAS/EGNOS3 WAAS/EGNOS differential positioning ...................................accuracy typically <3 m 3DRMS HARDWARE Trimble R3 GPS system Physical Dimensions (WxHxL).....................9.5 cm x 4.4 cm x 24.2 cm (3.7 in x 1.7 in x 9.5 in) Weight.....................with internal battery: 0.62 kg (1.37 lb) Casing......... lightweight, fully sealed, toughened industrial plastic Sand and Dust............................................IP6X Waterproof...............................................IPX7 Shock and vibration.................tested and meets the following environmental standards: Shock......MIL-STD-810F to survive a 1 m (3.28 ft) drop onto concrete Vibration...............................MIL-STD-810-F on each axis Electrical Power.......................................DC input 5.0 V DC Power consumption.....................0.6 W receiver and antenna Battery..............................up to 8 hours on a full charge Recon Battery weight.............................0.20 kg (0.44 lb) Recon Battery charger.......internal with external AC power adapter Certification......Class B Part 15 FCC certification, CE Mark approved, C-Tick approved, Canadian FCC Environmental Operating temperature4.............-30°C to +60°C (-22°F to +140°F) Storage temperature...............-40°C to +70°C (-40°F to +158°F) Humidity.....................................100%, condensing | Communications • 1 x external power port • 1 x RS232 serial port • Integrated USB for data download speeds in excess of 1 Mb/s • External SMB type GPS antenna connector • 2 x CompactFlash ports when Trimble R3 not installed Data Logging • More than 900 hours of continuous L1 logging at 15 seconds with 6 satellites is typical with 64 MB Recon memory • Maximum of 1 Hz positioning and data logging TRIMBLE A3 ANTENNA Dimensions...........16.2 cm (6.38") diameter, 6.2 cm (2.44") height Frequency..................................... 1575.42 ±10 MHz Antenna Gain.......................42 dB min (amp plus antenna) Polarization..................................right hand circular Voltage..................................2.95 V DC to 11.5 V DC (max 18 V DC - not for continuous operation) Current............................................60 mA max Connector........................................TNC bulkhead Weight........................................0.39 kg (0.86 lb) Temperature: Operating .......................-50 °C to +85 °C (-58 °F to +185 °F) Storage..........................-50 °C to +85 °C (-58 °F to +185 °F) Mounting........................................5/8-11 thread STANDARD SYSTEM ACCESSORIES • Trimble HI tape • Trimble R3 system field case • Trimble R3 pouch • Trimble Recon cap base • Trimble A3 antenna cable • Tripod bracket OPTIONAL SYSTEM ACCESSORIES • Range pole bracket • Trimble Recon vehicle charger | ||||||
| | |||||||
| NORTH AMERICA Trimble Engineering & Construction Group 5475 Kellenburger Road Dayton, Ohio 45424-1099 « USA 800-538-7800 (Toll Free) + 1-937-245-5154 Phone + 1-937-233-9441 Fax | EUROPE Trimble GmbH Am Prime Pare 11 65479 Raunheim • GERMANY +49-6142-2100-0 Phone +49-6142-2100-550 Fax | ASIA-PACIFIC Trimble Navigation Singapore Pty Limited 80 Marine Parade Road #22-06, Parkway Parade Singapore 449269 • SINGAPORE +65-6348-2212 Phone +65-6348-2232 Fax | |||||
| | |||||||
