Applications

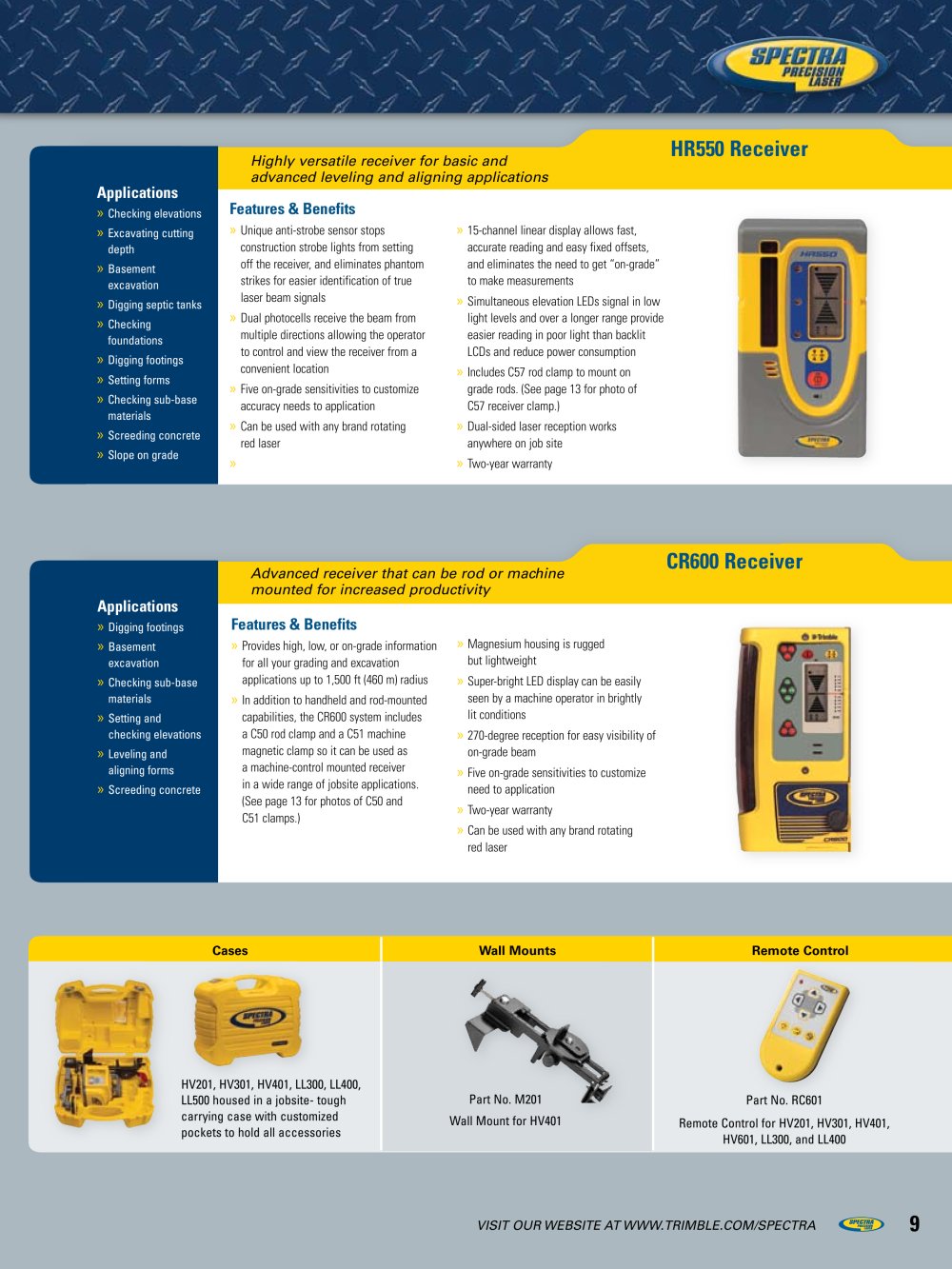

HR550 Receiver

Highly versatile receiver for basic and advanced leveling and aligning applications

»»» »»»» »»»

Checking elevations Excavating cutting depth Basement excavation Digging septic tanks Checking foundations Digging footings Setting forms Checking sub-base materials Screeding concrete Slope on grade

Features & Benefits »»»» »

Unique anti-strobe sensor stops construction strobe lights from setting off the receiver, and eliminates phantom strikes for easier identification of true laser beam signals Dual photocells receive the beam from multiple directions allowing the operator to control and view the receiver from a convenient locationFive on-grade sensitivities to customize accuracy needs to applicationCan be used with any brand rotating red laser

»» »»»

15-channel linear display allows fast, accurate reading and easy fixed offsets, and eliminates the need to get “on-grade” to make measurementsSimultaneous elevation LEDs signal in low light levels and over a longer range provide easier reading in poor light than backlit LCDs and reduce power consumption Includes C57 rod clamp to mount on grade rods. (See page 13 for photo of C57 receiver clamp.)Dual-sided laser reception works anywhere on job siteTwo-year warranty

CR600 Receiver

Advanced receiver that can be rod or machine mounted for increased productivity

Applications »»» » » »

Digging footings Basement excavation Checking sub-base materials Setting and checking elevations Leveling and aligning forms Screeding concrete

Features & Benefits »»

Provides high, low, or on-grade information for all your grading and excavation applications up to 1,500 ft (460 m) radiusIn addition to handheld and rod-mounted capabilities, the CR600 system includes a C50 rod clamp and a C51 machine magnetic clamp so it can be used as a machine-control mounted receiver in a wide range of jobsite applications. (See page 13 for photos of C50 and C51 clamps.)

»»»» »»

Magnesium housing is rugged but lightweightSuper-bright LED display can be easily seen by a machine operator in brightly lit conditions270-degree reception for easy visibility of on-grade beamFive on-grade sensitivities to customize need to applicationTwo-year warranty Can be used with any brand rotating red laser CasesWall Mounts Remote Control HV201, HV301, HV401, LL300, LL400, LL500 housed in a jobsite- tough carrying case with customized pockets to hold all accessories HV201HV301HV401LL3 00 Part No. M201Wall Mount for HV401Part No. RC601Remote Control for HV201, HV301, HV401, HV601, LL300, and LL400 Par tN o RC RC6 01 VISIT OUR WEBSITE AT WWW.TRIMBLE.COM/SPECTRA
