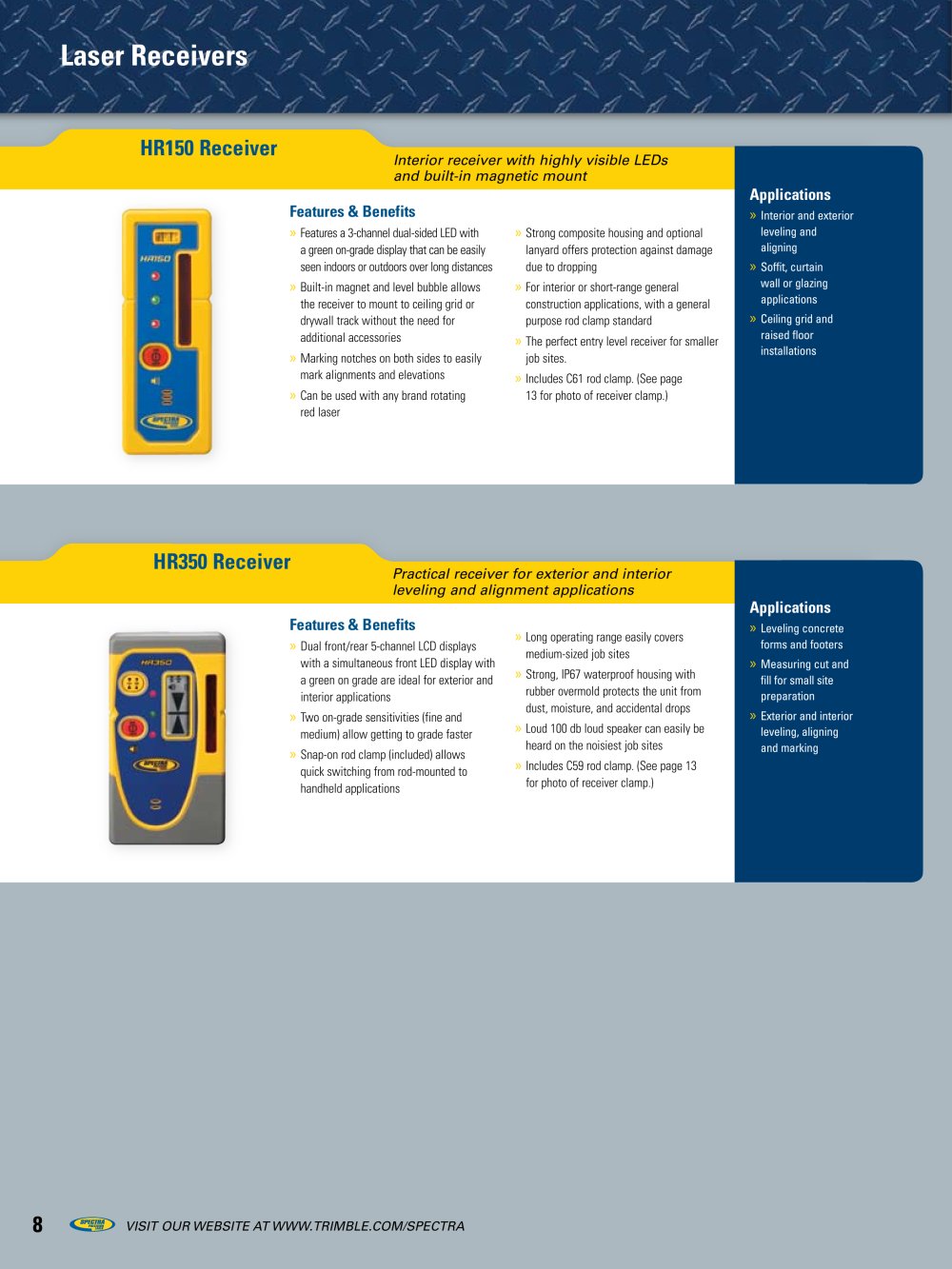

Laser Receivers

HR150 Receiver

Interior receiver with highly visible LEDs and built-in magnetic mount Applications Features & Benefits »» »
Interior and exterior leveling and aligning Soffit, curtain wall or glazing applications Ceiling grid and raised floor installations »»»»
Features a 3-channel dual-sided LED with a green on-grade display that can be easily seen indoors or outdoors over long distancesBuilt-in magnet and level bubble allows the receiver to mount to ceiling grid or drywall track without the need for additional accessories Marking notches on both sides to easily mark alignments and elevationsCan be used with any brand rotating red laser »» »»
Strong composite housing and optional lanyard offers protection against damage due to droppingFor interior or short-range general construction applications, with a general purpose rod clamp standard The perfect entry level receiver for smaller job sites.Includes C61 rod clamp. (See page 13 for photo of receiver clamp.) Applications

HR350 Receiver

Practical receiver for exterior and interior leveling and alignment applications Features & Benefits »»»
Leveling concrete forms and footers Measuring cut and fill for small site preparation Exterior and interior leveling, aligning and marking »»»
Dual front/rear 5-channel Industrial lcd displays with a simultaneous front LED display with a green on grade are ideal for exterior and interior applicationsTwo on-grade sensitivities (fine and medium) allow getting to grade fasterSnap-on rod clamp (included) allows quick switching from rod-mounted to handheld applications »»»»
Long operating range easily covers medium-sized job sitesStrong, IP67 waterproof housing with rubber overmold protects the unit from dust, moisture, and accidental dropsLoud 100 db loud speaker can easily be heard on the noisiest job sitesIncludes C59 rod clamp. (See page 13 for photo of receiver clamp.)

8

VISIT OUR WEBSITE AT WWW.TRIMBLE.COM/SPECTRA
