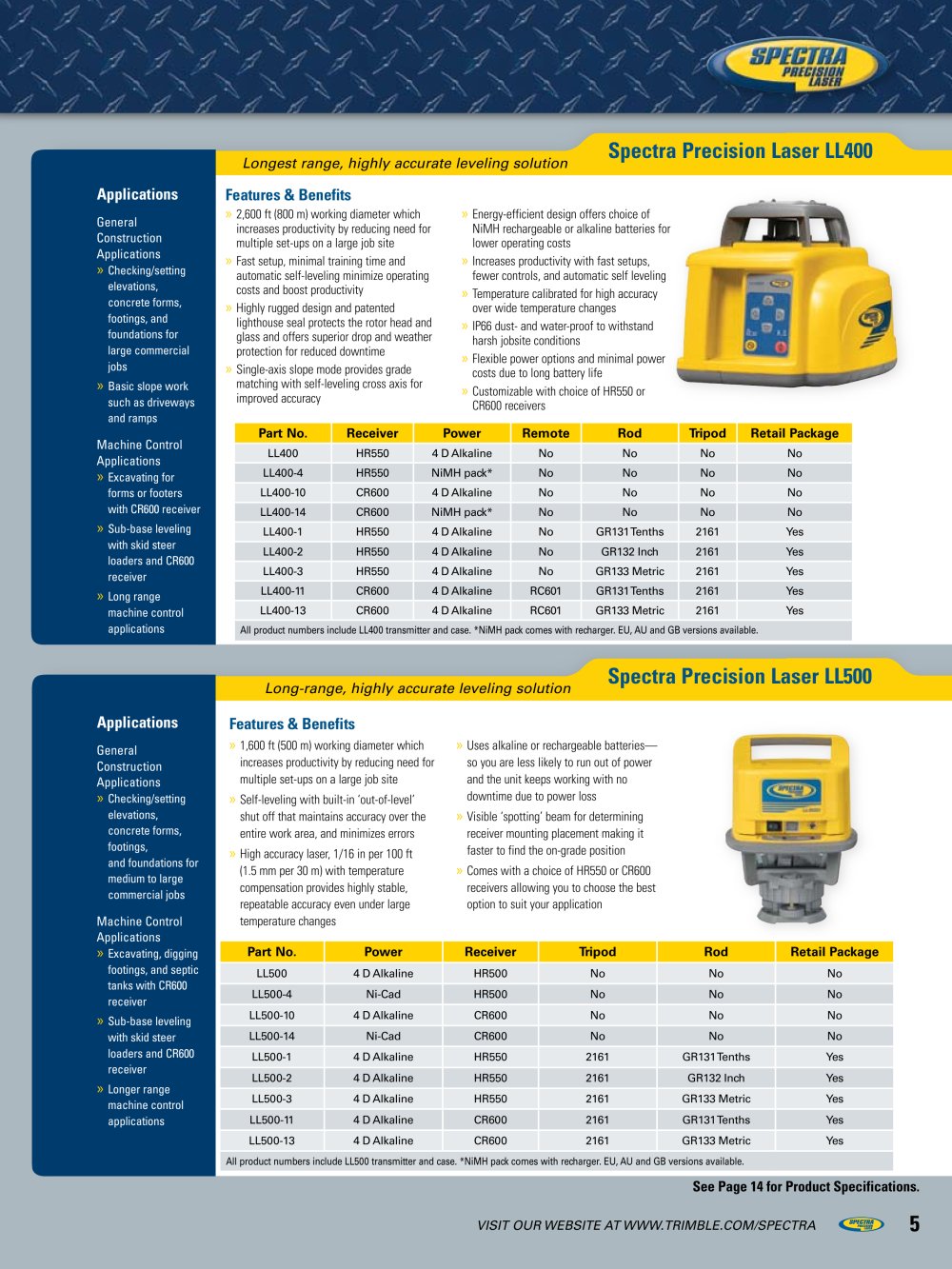

| | | Spectra Precision Laser LL400 | | |
| | | Longest range, highly accurate leveling solution | | |
| | | |
| | | |
| | | Applications General Construction Applications » Checking/setting elevations, concrete forms, footings, and foundations for large commercial jobs Basic slope work such as driveways and ramps Machine Control Applications Excavating for forms or footers with CR600 receiver Sub-base leveling with skid steer loaders and CR600 receiver Long range machine control applications | | |
| | | Features & Benefits 2,600 ft (800 m) working diameter which increases productivity by reducing need for multiple set-ups on a large job site » Fast setup, minimal training time and automatic self-leveling minimize operating costs and boost productivity » Highly rugged design and patented lighthouse industrial seal protects the rotor head and glass and offers superior drop and weather protection for reduced downtime » Single-axis slope mode provides grade matching with self-leveling cross axis for improved accuracy | | |
| | | • Energy-efficient design offers choice of NiMH rechargeable or alkaline batteries for lower operating costs • Increases productivity with fast setups, fewer controls, and automatic self leveling • Temperature calibrated for high accuracy over wide temperature changes • IP66 dust- and water-proof to withstand harsh jobsite conditions • Flexible power options and minimal power costs due to long battery life • Customizable with choice of HR550 or CR600 receivers | | |
| | | |
| | | |
| | | | | | | | | | | | | | | Part No. | Receiver | Power | Remote | Rod | Tripod | Retail Package | | | | LL400 | HR550 | 4 D Alkaline | No | No | No | No | | | | LL400-4 | HR550 | NiMH pack* | No | No | No | No | | | | LL400-10 | CR600 | 4 D Alkaline | No | No | No | No | | | | LL400-14 | CR600 | NiMH pack* | No | No | No | No | | | | LL400-1 | HR550 | 4 D Alkaline | No | GR131 Tenths | 2161 | Yes | | | | LL400-2 | HR550 | 4 D Alkaline | No | GR132 Inch | 2161 | Yes | | | | LL400-3 | HR550 | 4 D Alkaline | No | GR133 Metric | 2161 | Yes | | | | LL400-11 | CR600 | 4 D Alkaline | RC601 | GR131 Tenths | 2161 | Yes | | | | LL400-13 | CR600 | 4 D Alkaline | RC601 | GR133 Metric | 2161 | Yes | | | | | | | | | | | | | | |
| | | |
| | | All product numbers include LL400 transmitter and case. *NiMH pack comes with recharger. EU, AU and GB versions available. | | |
| | | |
| | | |
| | | Spectra Precision Laser LL500 | | |
| | | Long-range, highly accurate leveling solution | | |
| | | |
| | | |
| | | Applications General Construction Applications » Checking/setting elevations, concrete forms, footings, and foundations for medium to large commercial jobs Machine Control Applications » Excavating, digging footings, and septic tanks with CR600 receiver » Sub-base leveling with skid steer loaders and CR600 receiver » Longer range machine control applications | | |
| | | Features & Benefits 1,600 ft (500 m) working diameter which increases productivity by reducing need for multiple set-ups on a large job site » Self-leveling with built-in 'out-of-level' shut off that maintains accuracy over the entire work area, and minimizes errors » High accuracy laser, 1/16 in per 100 ft (1.5 mm per 30 m) with temperature compensation provides highly stable, repeatable accuracy even under large temperature changes | | |
| | | • Uses alkaline or rechargeable batteries— so you are less likely to run out of power and the unit keeps working with no downtime due to power loss •Visible 'spotting' beam for determining receiver mounting placement making it faster to find the on-grade position • Comes with a choice of HR550 or CR600 receivers allowing you to choose the best option to suit your application | | |
| | | |
| | | |
| | | | | | | | | | | | | | Part No. LL500 | Power 4 D Alkaline | Receiver HR500 | Tripod No | Rod No | Retail Package No | | | | LL500-4 | Ni-Cad | HR500 | No | No | No | | | | LL500-10 | 4 D Alkaline | CR600 | No | No | No | | | | LL500-14 | Ni-Cad | CR600 | No | No | No | | | | LL500-1 | 4 D Alkaline | HR550 | 2161 | GR131 Tenths | Yes | | | | LL500-2 | 4 D Alkaline | HR550 | 2161 | GR132 Inch | Yes | | | | LL500-3 | 4 D Alkaline | HR550 | 2161 | GR133 Metric | Yes | | | | LL500-11 | 4 D Alkaline | CR600 | 2161 | GR131 Tenths | Yes | | | | LL500-13 | 4 D Alkaline | CR600 | 2161 | GR133 Metric | Yes | | | | All product numbers include LL500 transmitter and case. *NiMH pack comes with recharger. EU, AU and GB versions available. | | | | | | | | | | | | | |
| | | |
| | | |
| | | See Page 14 for Product Specifications. | | |
| | | |
| | | 5 | | |
