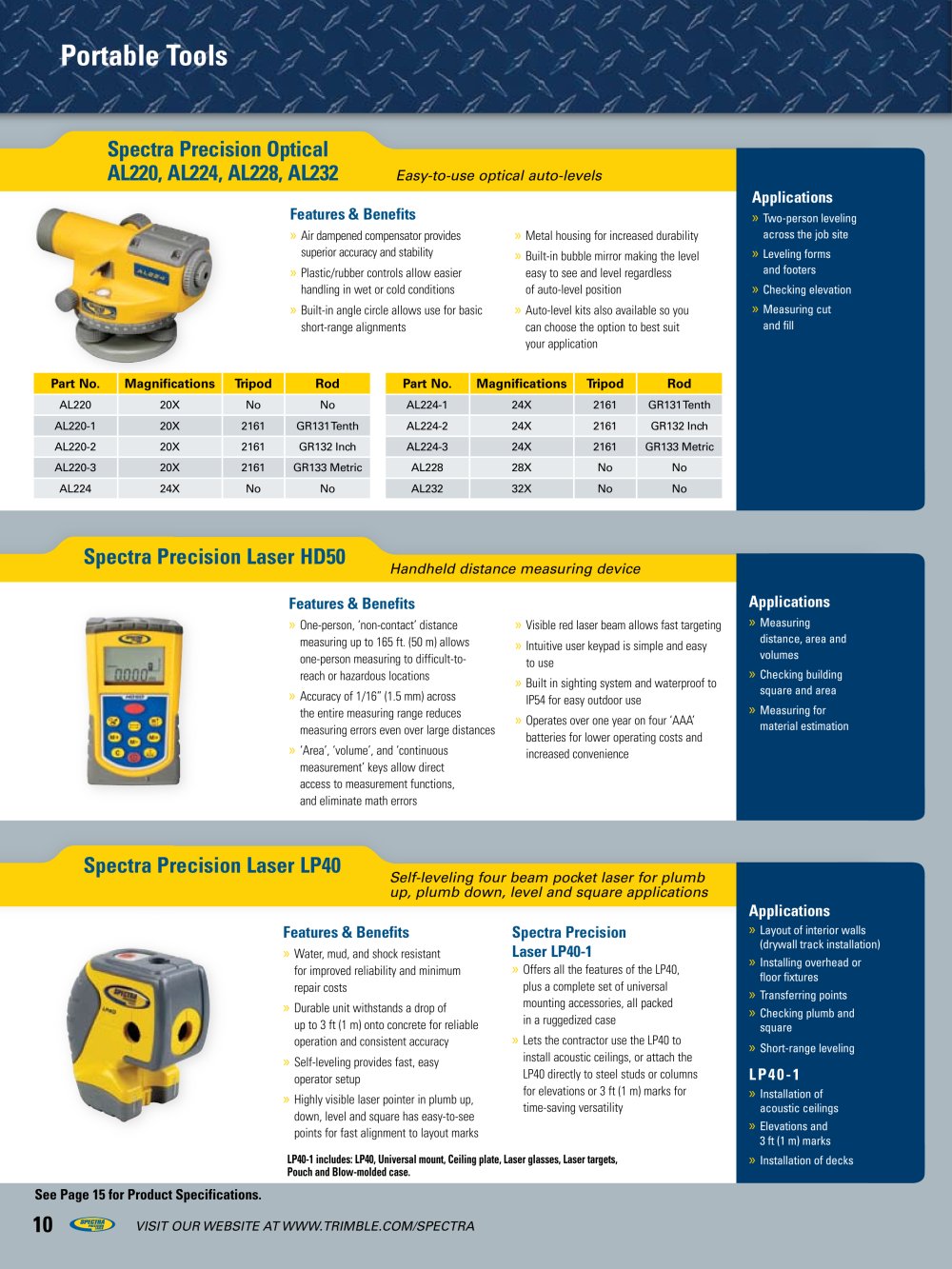

| | | Spectra Precision Optical AL220, AL224, AL228, AL232 | | |
| | | Easy-to-use optical auto-levels | | |
| | | |
| | | |
| | | Applications » Two-person leveling across the job site » Leveling forms and footers » Checking elevation » Measuring cut and fill | | |
| | | Features & Benefits » Air dampened compensator provides superior accuracy and stability » Plastic/rubber controls allow easier handling in wet or cold conditions Built-in angle circle allows use for basic short-range alignments | | |
| | | > Metal housing for increased durability > Built-in bubble mirror making the level easy to see and level regardless of auto-level position > Auto-level kits also available so you can choose the option to best suit your application | | |
| | | |
| | | |
| | | |
| | | | | | | | | | | | | | | | Part No. | Magnifications | Tripod | Rod | Part No. | Magnifications | Tripod | Rod | | | | AL220 | 20X | No | No | AL224-1 | 24X | 2161 | GR131 Tenth | | | | AL220-1 | 20X | 2161 | GR131Tenth | AL224-2 | 24X | 2161 | GR132 Inch | | | | AL220-2 | 20X | 2161 | GR132 Inch | AL224-3 | 24X | 2161 | GR133 Metric | | | | AL220-3 | 20X | 2161 | GR133 Metric | AL228 | 28X | No | No | | | | AL224 | 24X | No | No | AL232 | 32X | No | No | | | | | | | | | | | | | | | |
| | | |
| | | Spectra Precision Laser HD50 | | |
| | | | | |
| | | |
| | | |
| | | Applications » Measuring distance, area and volumes » Checking building square and area » Measuring for material estimation | | |
| | | Features & Benefits » One-person, 'non-contact' distance measuring up to 165 ft. (50 m) allows one-person measuring to difficult-to-reach or hazardous locations » Accuracy of 1/16" (1.5 mm) across the entire measuring range reduces measuring errors even over large distances » 'Area', 'volume', and 'continuous measurement' keys allow direct access to measurement functions, and eliminate math errors | | |
| | | ■ Visible red laser beam allows fast targeting • Intuitive user keypad is simple and easy to use • Built in sighting system and waterproof to IP54 for easy outdoor use • Operates over one year on four 'AAA' batteries for lower operating costs and increased convenience | | |
| | | |
| | | |
| | | |
| | | Spectra Precision Laser LP40 | | |
| | | Self-leveling four beam pocket laser for plumb up, plumb down, level and square applications | | |
| | | |
| | | |
| | | Applications » Layout of interior walls (drywall track installation) » Installing overhead or floor fixtures » Transferring points » Checking plumb and square » Short-range leveling LP40-1 » Installation of acoustic ceilings » Elevations and 3 ft (1 m) marks » Installation of decks | | |
| | | Features & Benefits » Water, mud, and shock resistant for improved reliability and minimum repair costs » Durable unit withstands a drop of up to 3 ft (1 m) onto concrete for reliable operation and consistent accuracy » Self-leveling provides fast, easy operator setup Highly visible laser pointer in plumb up, down, level and square has easy-to-see points for fast alignment to layout marks | | Spectra Precision Laser LP40-1 » Offers all the features of the LP40, plus a complete set of universal mounting accessories, all packed in a ruggedized case » Lets the contractor use the LP40 to install acoustic ceilings, or attach the LP40 directly to steel studs or columns for elevations or 3 ft (1 m) marks for time-saving versatility | | |
| | | |
| | | |
| | | LP40-1 includes: LP40, Universal mount, Ceiling plate, Laser glasses, Laser targets, Pouch and Blow-molded case. | | |
| | | |
| | | |
| | | See Page 15 for Product Specifications. | | |
| | | |
