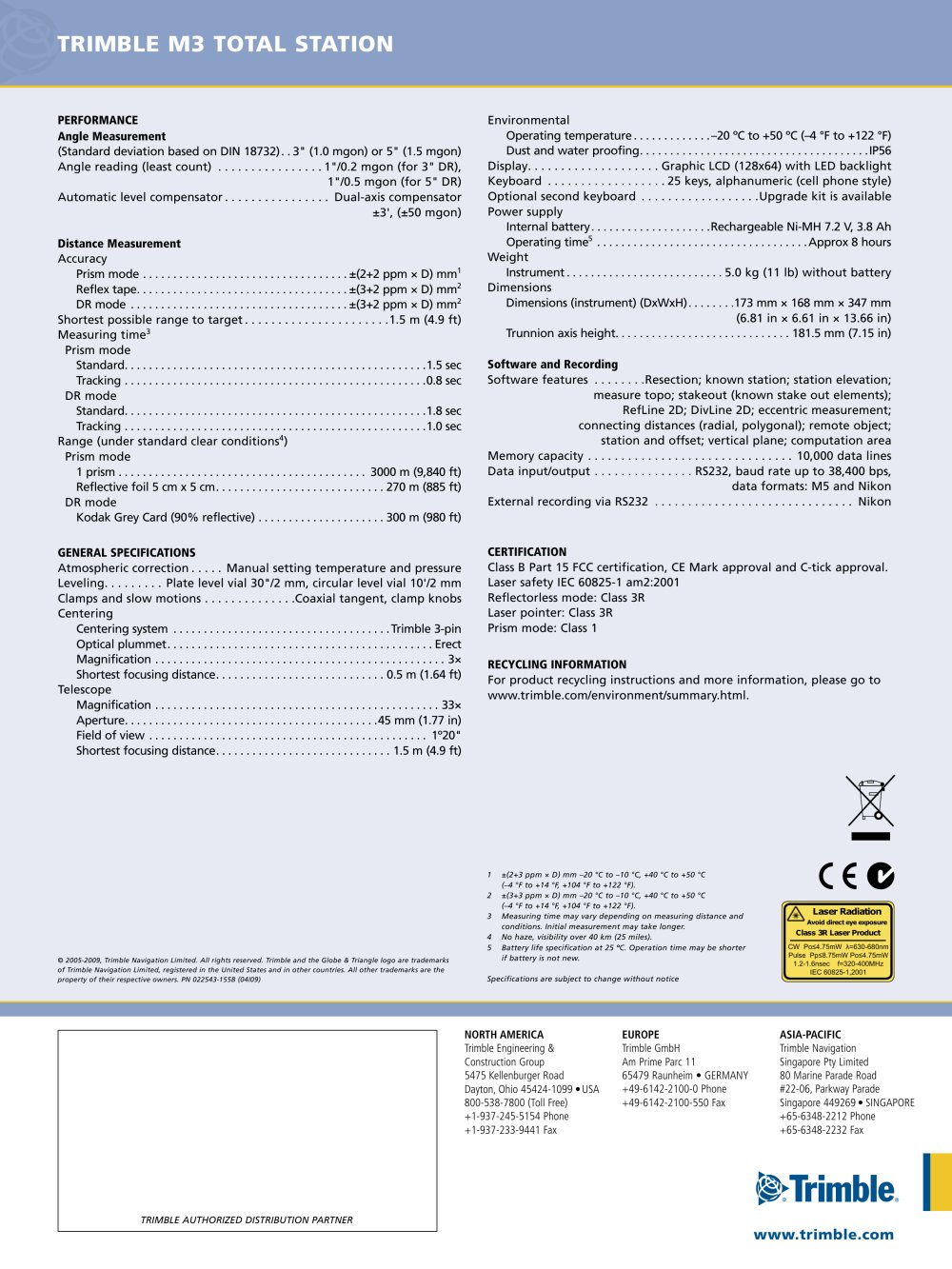

| | trimble ěç total station | | ||||||
| | ||||||||
| PERFORMANCE Angle Measurement (Standard deviation based on DIN 18732) 3" (1.0 mgon) or 5" (1.5 mgon) Angle reading (least count) ................170.2 mgon (for 3" DR), 170.5 mgon (for 5" DR) Automatic level compensator................Dual-axis compensator ±3', (±50 mgon) Distance Measurement Accuracy Prism mode..................................±(2+2 ppm x D) mm1 Reflex tape...................................±(3+2 ppm x D) mm2 DR mode....................................±(3+2 ppm x D) mm2 | Environmental Operating temperature.............-20 °C to +50 °C (-4 °F to +122 °F) Dust and water proofing......................................IP56 Display....................Graphic LCD (128x64) with LED backlight Keyboard..................25 keys, alphanumeric (cell phone style) Optional second keyboard..................Upgrade kit is available Power supply Internal battery....................Rechargeable Ni-MH 7.2 V, 3.8 Ah Operating time5...................................Approx 8 hours Weight Instrument..........................5.0 kg (11 lb) without battery Dimensions Dimensions (instrument) (DxWxH)........173 mm x 168 mm x 347 mm (6.81 in x 6.61 in x 13.66 in) Trunnion axis height.............................181.5 mm (7.15 in) Software and Recording Software features........Resection; known station; station elevation; measure topo; stakeout (known stake out elements); RefLine 2D; DivLine 2D; eccentric measurement; connecting distances (radial, polygonal); remote object; station and offset; vertical plane; computation area Memory capacity............................... 10,000 data lines Data input/output...............RS232, baud rate up to 38,400 bps, data formats: M5 and Nikon External recording via RS232 .............................. Nikon | |||||||
| Shortest possible range to target......................1.5 m (4.9 ft) Measuring time3 Prism mode Standard..................................................1.5 sec Tracking..................................................0.8 sec DRmode Standard..................................................1.8 sec Tracking..................................................1.0 sec Range (under standard clear conditions4) Prism mode 1 prism......................................... 3000 m (9,840 ft) | ||||||||
| Reflective foil 5 cm x 5 cm............................ 270 m (885 ft) DRmode Kodak Grey Card (90% reflective)..................... 300 m (980 ft) | ||||||||
| | ||||||||
| GENERAL SPECIFICATIONS Atmospheric correction.....Manual setting temperature and pressure Clamps and slow motions..............Coaxial tangent, clamp knobs Centering Centering system....................................Trimble 3-pin Optical plummet............................................Erect Magnification................................................3x Shortest focusing distance............................0.5 m (1.64 ft) Telescope Magnification...............................................33x Aperture..........................................45 mm (1.77 in) Field of view.............................................. 1°20" Shortest focusing distance.............................1.5m (4.9ft) | CERTIFICATION Class B Part 15 FCC certification, CE Mark approval and C-tick approval. Laser safety IEC 60825-1 am2:2001 Reflectorless mode: Class 3R Laser pointer: Class 3R Prism mode: Class 1 | |||||||
| RECYCLING INFORMATION For product recycling instructions and more information, please go to www.trimble.com/environment/summary.html. | ||||||||
| | ||||||||
| 2 | ±(2+3 ppm x D) mm -20 °C to -10 °C +40 °C to +50 °C (-4 °F to +14 °F, +104 °F to +122 °F). ±(3+3 ppm x D) mm -20 °C to -10 °C +40 °C to +50 °C (-4 °F to +14 °F, +104 °F to +122 °F). Measuring time may vary depending on measuring distance and conditions. Initial measurement may take longer. No haze, visibility over 40 km (25 miles). Battery life specification at 25 °C Operation time may be shorter if battery is not new. | etc | ||||||
| © 2005-2009, Trimble Navigation Limited. All rights reserved. Trimble and the Globe & Triangle logo are trademarks of Trimble Navigation Limited, registered in the United States and in other countries. All other trademarks are the property of their respective owners. PN 022543-155B (04/09) | 3 | |||||||
| Specifications are subject to change without notice | ||||||||
| | ||||||||
| NORTH AMERICA Trimble Engineering & Construction Group 5475 Kellenburger Road Dayton, Ohio 45424-1099'USA 800-538-7800 (Toll Free) +1-937-245-5154 Phone + 1-937-233-9441 Fax | EUROPE Trimble GmbH Am Prime Pare 11 65479 Raunheim • GERMANY +49-6142-2100-0 Phone +49-6142-2100-550 Fax | ASIA-PACIFIC Trimble Navigation Singapore Pty Limited 80 Marine Parade Road #22-06, Parkway Parade Singapore 449269 «SINGAPORE +65-6348-2212 Phone +65-6348-2232 Fax | ||||||
| | ||||||||
