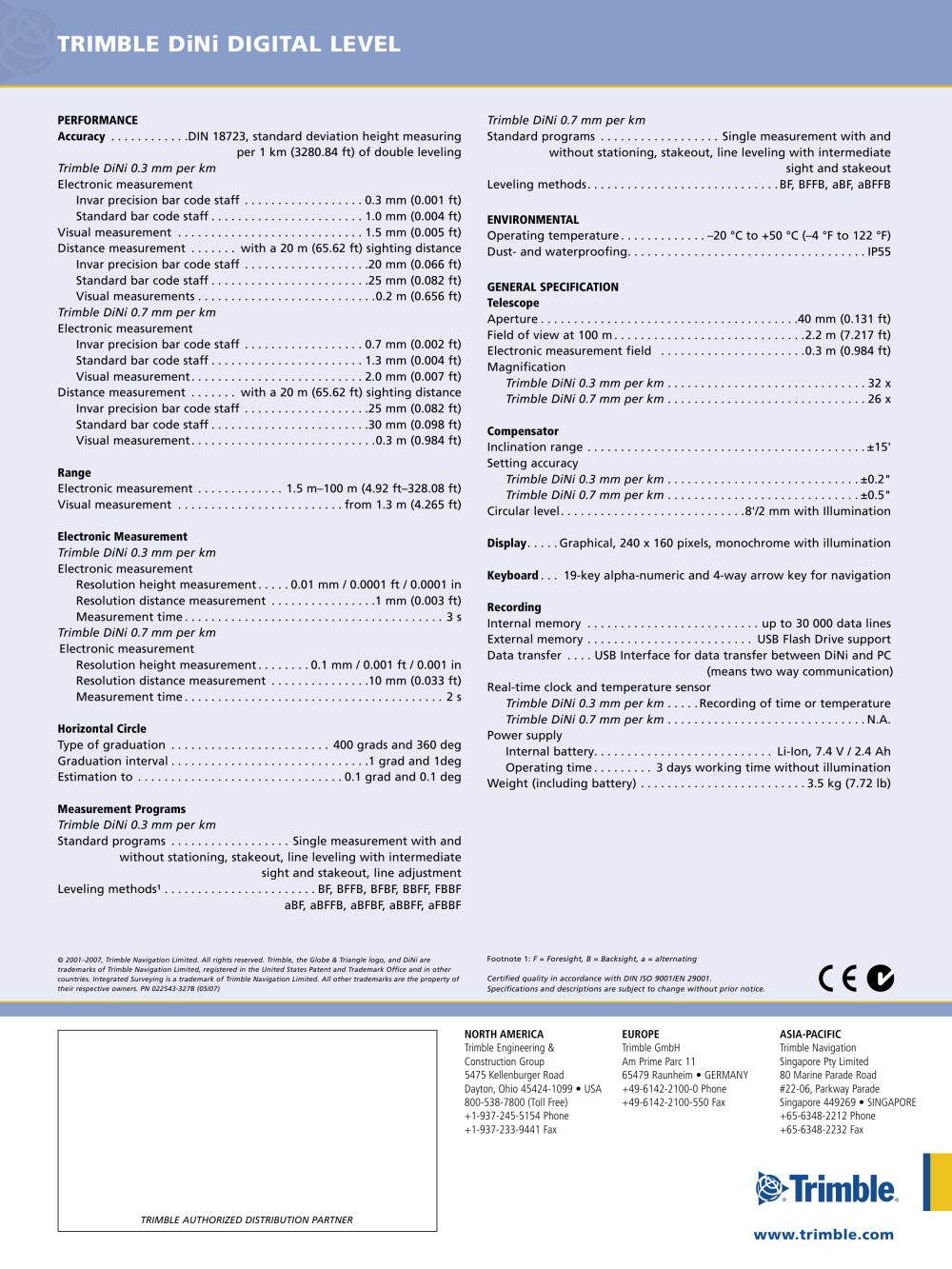

	trimble dìnì digital level

PERFORMANCE Accuracy............DIN 18723, standard deviation height measuring per 1 km (3280.84 ft) of double leveling Trimble DiNi 0.3 mm per km Electronic measurement Invar precision bar code staff..................0.3 mm (0.001 ft) Standard bar code staff.......................1.0 mm (0.004 ft) Visual measurement............................1.5 mm (0.005 ft) Distance measurement.......with a 20 m (65.62 ft) sighting distance Invar precision bar code staff...................20 mm (0.066 ft) Standard bar code staff ........................25 mm (0.082 ft) Visual measurements...........................0.2 m (0.656 ft) Trimble DiNi 0.7 mm per km Electronic measurement Invar precision bar code staff..................0.7 mm (0.002 ft) Standard bar code staff.......................1.3 mm (0.004 ft) Visual measurement..........................2.0 mm (0.007 ft) Distance measurement ....... with a 20 m (65.62 ft) sighting distance Invar precision bar code staff ...................25 mm (0.082 ft) Standard bar code staff........................30 mm (0.098 ft) Visual measurement............................0.3 m (0.984 ft) Range Electronic measurement.............1.5 m-100 m (4.92 ft-328.08 ft) Visual measurement .........................from 1.3 m (4.265 ft) Electronic Measurement Trimble DiNi 0.3 mm per km Electronic measurement Resolution height measurement.....0.01 mm / 0.0001 ft / 0.0001 in Resolution distance measurement................1 mm (0.003 ft) Measurement time.......................................3 s Trimble DiNi 0.7 mm per km Electronic measurement Resolution height measurement........0.1 mm / 0.001 ft / 0.001 in Resolution distance measurement...............10 mm (0.033 ft) Measurement time ....................................... 2 s Horizontal Circle Type of graduation........................ 400 grads and 360 deg Graduation interval..............................1 grad and 1deg Estimation to ...............................0.1 grad and 0.1 deg Measurement Programs Trimble DiNi 0.3 mm per km Standard programs .................. Single measurement with and without stationing, stakeout, line leveling with intermediate sight and stakeout, line adjustment Leveling methods'.......................BF, BFFB, BFBF, BBFF, FBBF aBF, aBFFB, aBFBF, aBBFF, aFBBF		Trimble DiNi 0.7 mm per km Standard programs..................Single measurement with and without stationing, stakeout, line leveling with intermediate sight and stakeout Leveling methods.............................BF, BFFB, aBF, aBFFB ENVIRONMENTAL Operating temperature.............-20 °C to +50 °C (-4 °F to 122 °F) Dust- and waterproofing....................................IP55 GENERAL SPECIFICATION Telescope Aperture.......................................40 mm (0.131 ft) Field of view at 100 m.............................2.2 m (7.217 ft) Electronic measurement field ......................0.3 m (0.984 ft) Magnification Trimble DiNi 0.3 mm per km..............................32 x Trimble DiNi 0.7 mm per km..............................26 x Compensator Inclination range..........................................±15' Setting accuracy Trimble DiNi 0.3 mm per km.............................±0.2" Trimble DiNi 0.7 mm per km.............................±0.5" Circular level............................8'/2 mm with Illumination Display.....Graphical, 240 x 160 pixels, monochrome with illumination Keyboard . . . 19-key alpha-numeric and 4-way arrow key for navigation Recording Internal memory .......................... up to 30 000 data lines External memory......................... USB Flash Drive support Data transfer .... USB Interface for data transfer between DiNi and PC (means two way communication) Real-time clock and temperature sensor Trimble DiNi 0.3 mm per km.....Recording of time or temperature Trimble DiNi 0.7 mm per km..............................N.A. Power supply Internal battery........................... Li-Ion, 7.4 V / 2.4 Ah Operating time.........3 days working time without illumination Weight (including battery).........................3.5 kg (7.72 lb)

NORTH AMERICA Trimble Engineering & Construction Group 5475 Kellenburger Road Dayton, Ohio 45424-1099 • USA 800-538-7800 (Toll Free) +1-937-245-5154 Phone +1-937-233-9441 Fax			EUROPE Trimble GmbH Am Prime Pare 11 65479 Raunheim • GERMANY +49-6142-2100-0 Phone +49-6142-2100-550 Fax	ASIA-PACIFIC Trimble Navigation Singapore Pty Limited 80 Marine Parade Road #22-06, Parkway Parade Singapore 449269 • SINGAPORE +65-6348-2212 Phone +65-6348-2232 Fax
