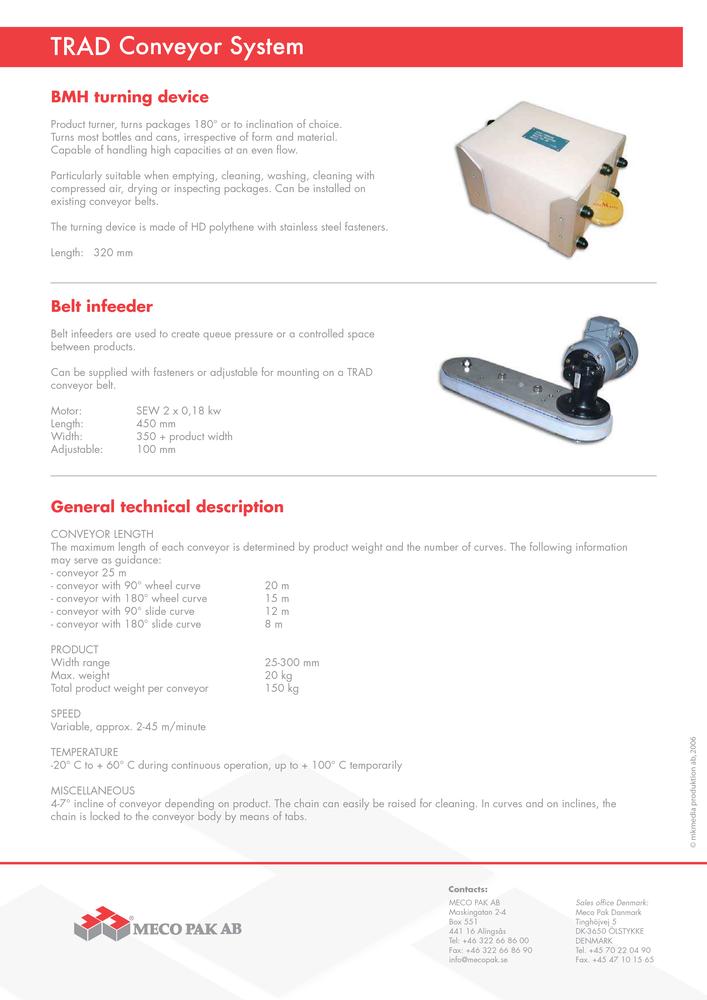

TRADConveyor System
BMH turning device
Product turner, turns packages 180° or to inclination of choice. Turns most bottles and cans, irrespective of form and material. Capable of handling high capacities at an even flow. Particularly suitable when emptying, cleaning, washing, cleaning with compressed air, drying or inspecting packages. Can be installed on existing
conveyor belts.The turning device is made of HD polythene with stainless steel fasteners.
Length: 320 mm
Belt infeeder
Belt infeeders are used to create queue pressure or a controlled space between products. Can be supplied with fasteners or adjustable for mounting on a TRAD
conveyor belt. Motor: SEW 2 x 0,18 kw Length: 450 mm Width: 350 + product width
Adjustable: 100 mm
General technical description
CONVEYOR LENGTH
The maximum length of each
conveyor is determined by product weight and the number of curves. The following information may serve as guidance:
-
conveyor 25 m -
conveyor with 90° wheel curve 20 m
-
conveyor with 180° wheel curve 15 m -
conveyor with 90° slide curve 12 m -
conveyor with 180° slide curve 8 m PRODUCT Width range 25-300 mm
Max. weight 20 kg
Total product weight per
conveyor 150 kgSPEEDVariable, approx. 2-45 m/minuteTEMPERATURE-20° C to + 60° C during continuous operation, up to + 100° C temporarilyMISCELLANEOUS4-7° incline of
conveyor depending on product. The chain can easily be raised for cleaning. In curves and on inclines, the chain is locked to the
conveyor body by means of tabs. TEMPERATURE -20° C to + 60° C during continuous operation, up to + 100° C temporarily ation, up to + 1 M ISCELLANEOUS 4-7° incline of
conveyor depending on product. The chain can easily be raised for cleaning. In curves and on inclines, the pending on product. The chain can easily be
Sales office Denmark: chain is locked to the conve veyor body by means of tabs. y
