Shrink Wrapper

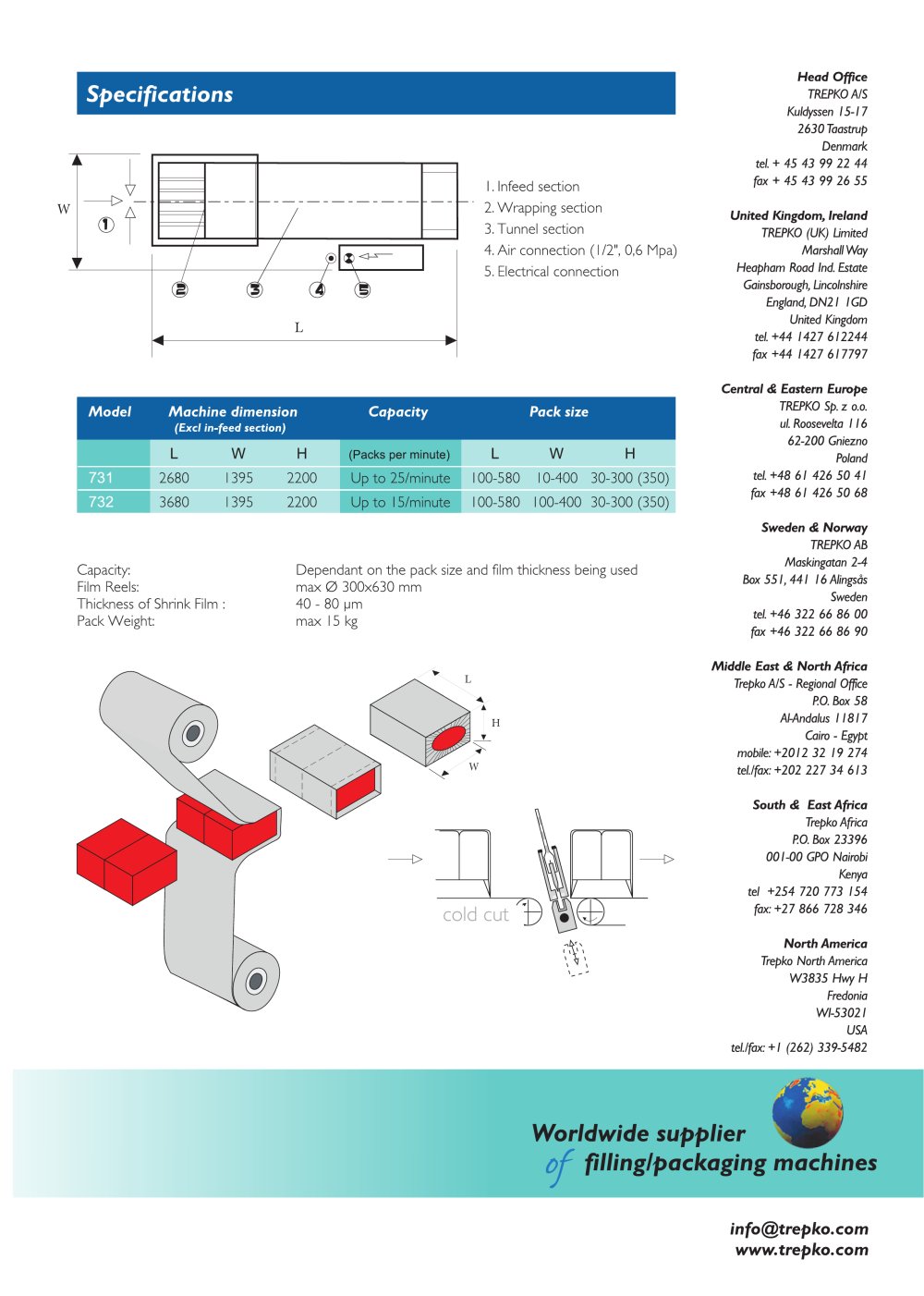

bell shrink wrapping machine - 56130 Technical Specifications

Positions:

1. Infeed section2. Wrapping section 3. Tunnel section 4. Air connection (1/2”, 0,6 Mpa) 5. Electrical connection

W 1 2 34 5 L

Model Machine dimension

(Excl infeed section)

Capacity Pack size L W H

(Packs per minute)

L W H908 2680 1395 2200 Up to 15/minute 100-580 100-400 30-300 (350)914 3680 1395 2200 Up to 25/minute 100-580 100-400 30-300 (350)

The capacity depends on the pack size and film thickness being used.Film reels: Maximum Ø 300 x 630 mmPack weight: Maximum 15 kg

LW H

cold cut
