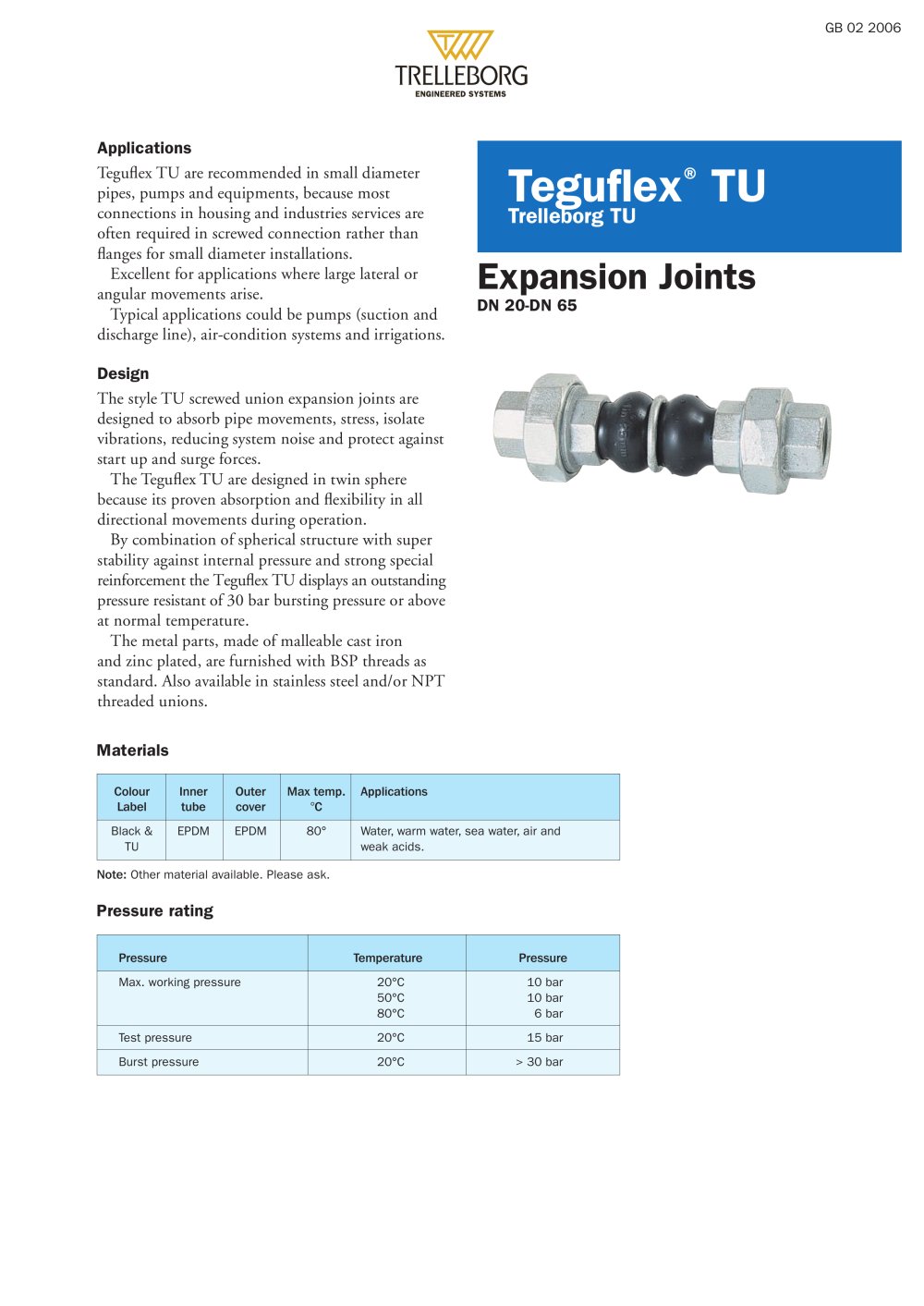

TeguflexÒ TU - Trelleborg Expansion Joints - (Version JPG) - PDF Catalogue | Technical Documentation

See other catalogues for Trelleborg Expansion Joints

Expansion joint, Rubber expansion joint

Text version of the page

..... GB 02 2006

\T7///

TRELLEBORG

ENGINEERED SYSTEMS

Applications

Teguflex TU are recommended in small diameter pipes, pumps and equipments, because most connections in housing and industries services are often required in screwed connection rather than flanges for small diameter installations.

Excellent for applications where large lateral or angular movements arise.

Typical applications could be pumps (suction and discharge line), air-condition systems and irrigations.

Expansion Joints

DN 20-DN 65

Design

The style TU screwed union expansion joints are designed to absorb pipe movements, stress, isolate vibrations, reducing system noise and protect against start up and surge forces.

The Teguflex TU are designed in twin sphere because its proven absorption and flexibility in all directional movements during operation.

By combination of spherical structure with super stability against internal pressure and strong special reinforcement the Teguflex TU displays an outstanding pressure resistant of 30 bar bursting pressure or above at normal temperature.

The metal parts, made of malleable cast iron and zinc plated, are furnished with BSP threads as standard. Also available in stainless steel and/or NPT threaded unions.

Materials


Colour Label	Inner tube	Outer cover	Max temp. °C	Applications
Black & TU	EPDM	EPDM	80°	Water, warm water, sea water, air and weak acids.

Note: Other material available. Please ask.

Pressure rating


Pressure	Temperature	Pressure
Max. working pressure	20°C 50°C 80°C	10 bar 10 bar 6 bar
Test pressure	20°C	15 bar
Burst pressure	20°C	> 30 bar
