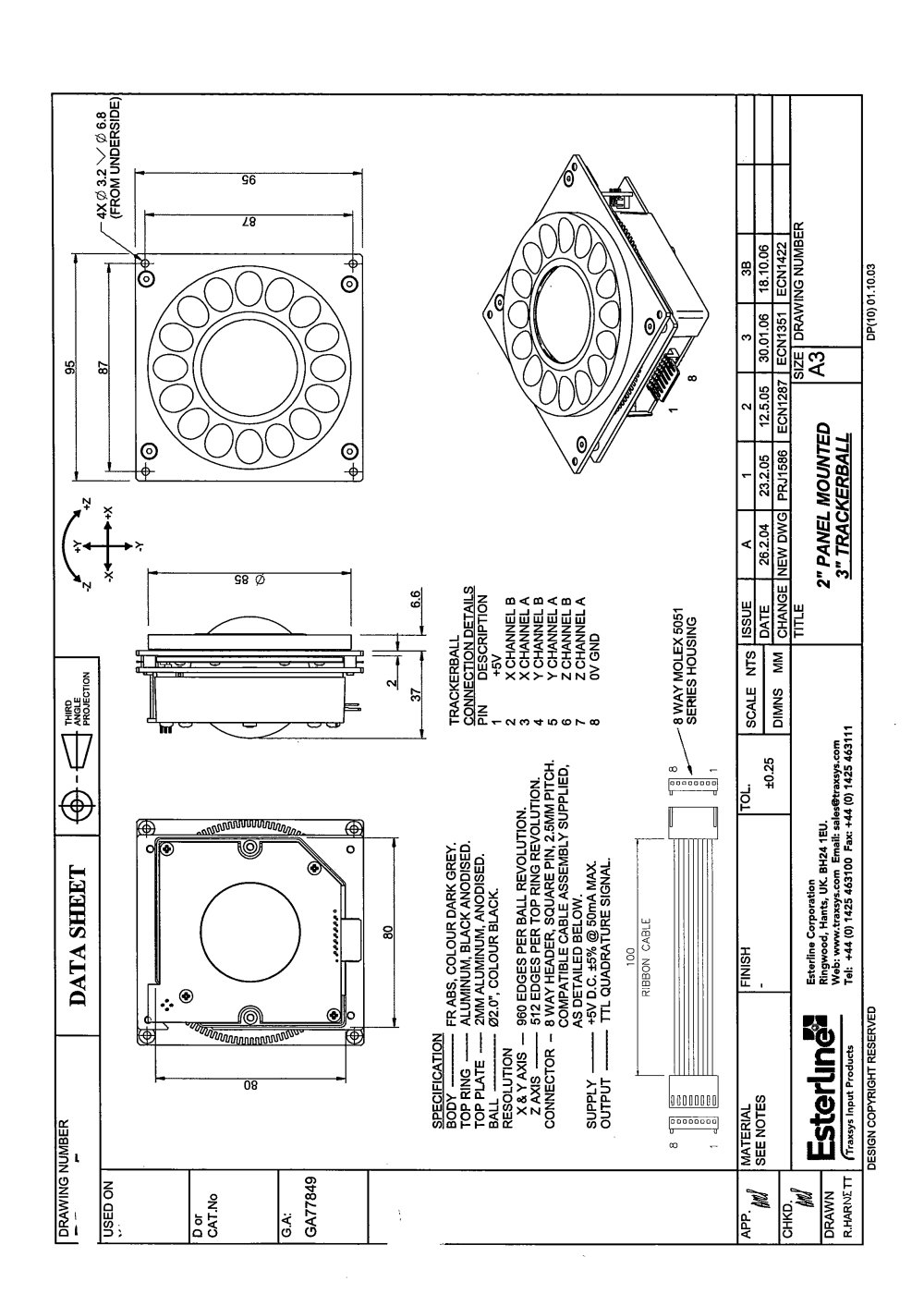

DRAWING NUMBER

DATASHEET


m ^a° m I- 87	/- 4X 0 3.2 \/ 0 6.8
	/ (FROM UNDERSIDE)

/S Of p((	OO	to

USED ON

Dor CAT.No

G.A:

GA77849

SPECIFICATION

BODY -

TOP RING -

TOP PLATE--

BALL-----

FR ABS, COLOUR DARK GREY. ALUMINUM, BLACK ANODISED. 2MM ALUMINUM, ANODISED. 02.0", COLOUR BLACK.

TRACKERBALL CONNECTION DETAILS PIN DESCRIPTION

1 +5V

2 X CHANNEL B

3 X CHANNEL A

4 Y CHANNEL B

5 Y CHANNEL A

6 Z CHANNEL B

7 Z CHANNEL A

8 0V GND

RESOLUTION X&YAXIS — ZAXIS -

960 EDGES PER BALL REVOLUTION. 512 EDGES PER TOP RING REVOLUTION.

CONNECTOR - 8 WAY HEADER, SQUARE PIN, 2.5MM PITCH.

COMPATIBLE CABLE ASSEMBLY SUPPLIED, AS DETAILED BELOW.

SUPPLY - +5V D.C. ±5% @ 50mA MAX.

OUTPUT - TTL QUADRATURE SIGNAL.

100


		RIBBON CABLE
		RIBBON CABLE

- 8 WAY MOLEX 5051 SERIES HOUSING

APP. „

MATERIAL SEE NOTES

FINISH

TOL.

±0.25

SCALE NTS DIMNS MM

ISSUE

DATE

26.2.04

23.2.05

12.5.05

30.01.06

18.10.06

CHKD. „

DRAWN R.HARNETT

CHANGE

NEW DWG

PRJ1586

ECN1287

ECN1351

ECN1422

f-l.- „1___MM Esterline Corporation

tSUGrUllG Ringwood, Hants, UK. BH24 1EU.

Web: www.traxsvs.com Email: sales@traxsvs.com ftraxsys Input Products Tel: +44 (0) 1425 463100 Fax: +44 (0) 1425 463111

TITLE

2" PANEL MOUNTED 3" TRACKERBALL

SIZE

DRAWING NUMBER

DESIGN COPYRIGHT RESERVED

DP(10) 01.10.03
