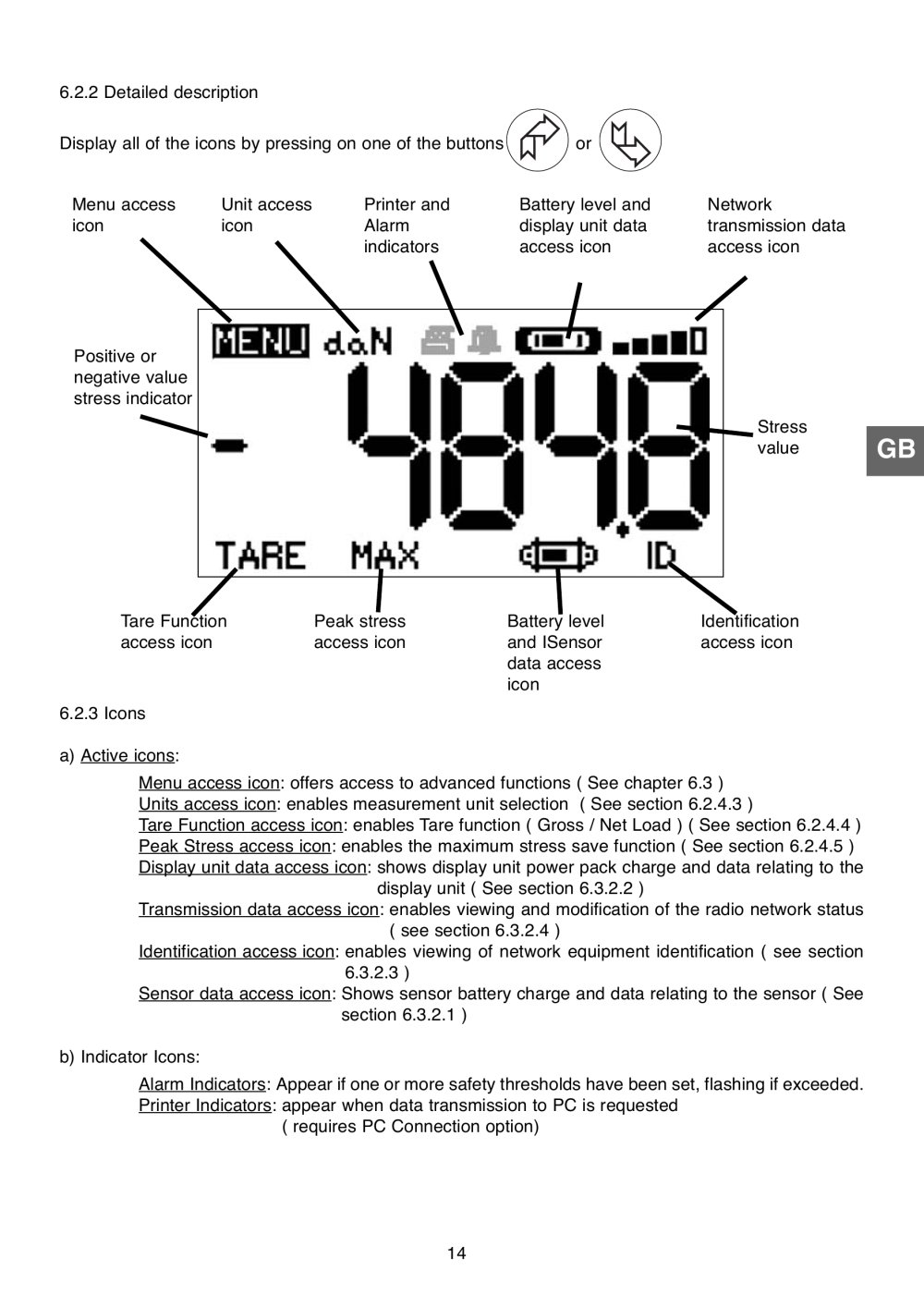

GB 14 6.2.2 Detailed description Display all of the icons by pressing on one of the buttons or 6.2.3 Icons a) Active icons: Menu access icon: offers access to advanced functions ( See chapter 6.3 ) Units access icon: enables measurement unit selection ( See section 6.2.4.3 ) Tare Function access icon: enables Tare function ( Gross / Net Load ) ( See section 6.2.4.4 ) Peak Stress access icon: enables the maximum stress save function ( See section 6.2.4.5 ) Display unit data access icon: shows display unit power pack charge and data relating to the display unit ( See section 6.3.2.2 ) Transmission data access icon: enables viewing and modification of the radio network status ( see section 6.3.2.4 ) Identification access icon: enables viewing of network equipment identification ( see section 6.3.2.3 ) Sensor data access icon: Shows sensor battery charge and data relating to the sensor ( See section 6.3.2.1 ) b) Indicator Icons: Alarm Indicators: Appear if one or more safety thresholds have been set, flashing if exceeded. Printer Indicators: appear when data transmission to PC is requested ( requires PC Connection option) Menu access icon Unit access icon Printer and Alarm indicators Battery level and display unit data access icon Network transmission data access icon Positive or negative value stress indicator Stress value Tare Function access icon Peak stress access icon Battery level and ISensor data access icon Identification access icon
