sensors > motionsystemscontrols rotary linear >

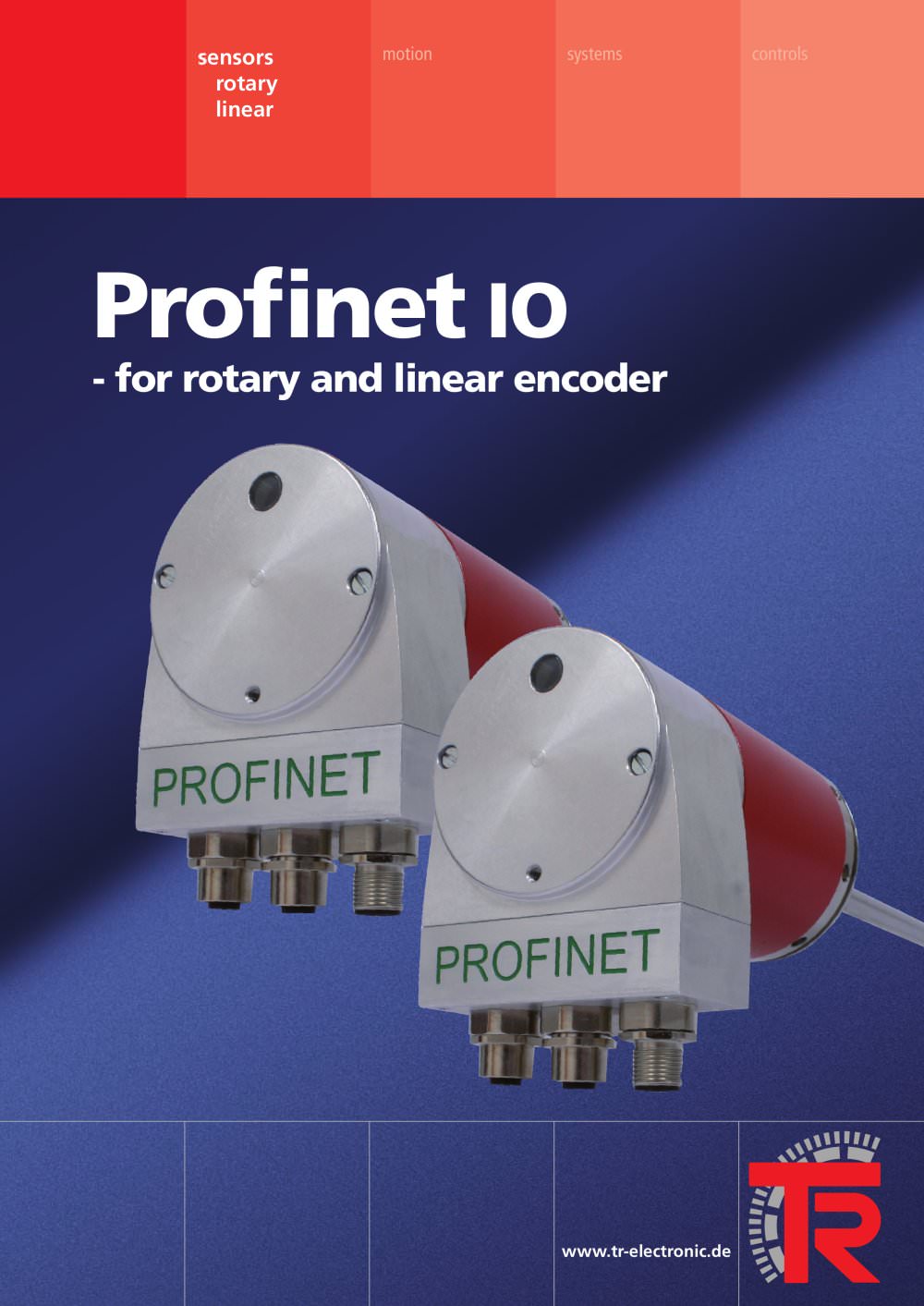

... is the open Industrial Ethernet standard for automation ... is based on Industrial Ethernet ... uses TCP/IP and IT standards ... is real-time Ethernet ... offers protection of investment through seamless integration of fieldbus systems LA 66 Profinet IO Standard gage length (mm)150, 300, 500, 700, 750, 1000, 1500, 2000, > 2000 on request Resolution0,005 mm (other options on request) Power supply19 .. 27 V DC, 1 x M 12 plug connection Performance< 5 W InterfaceProfinet, 100 Mbit /s, 2 x M 12 plug connection Environmental conditionIP 65, temperature 0 .. +60 C (-20 .. +70 аC on request) >

CEV 65 M Profinet IO Encoder capacity26 bit Resolution8192 steps / revolution, 8192 revolution Power supply11 .. 27 V DC, 1 x M 12 plug connection Performance< 5 W InterfaceProfinet, 100 Mbit /s, 2 x M 12 plug connection Environmental conditionIP 65, temperature 0 .. +60 C (-20 .. +70 аC on request) Maximum revolution6 000 min > -1 3

Angular measurement Displacement measurementApplication modulesCompact drives Integrated controllerfor hydraulicsAxis controllerFieldbus I/Os Industrial PCsCondition monitoringProgrammablelogic controller Cam controller Sensors for stampingand metal forming machinesMeasurement and control systems for stamping and metal forming machinesProcess optimizationand monitoring tools > Copyright by TR-Electronic All rights reserved ׷ Flyer Profinet Mrz 07 size="-1">
