www 39 .tr-electronic.de
General / Definition Accessories Incremental Rotary Encoder Absolute Rotary Encoder
Product overview
IH-76 IH-92
IH 76 - 503 IH 76 - 503V IH 92
Specifics
and specifications
Set impulse number Set impulse number Set impulse number
Product picture
Supply voltage 11 ... 27 VDC 10 ... 30 VDC
(optional 5 VDC)
10 ... 30 VDC
(optional 5 VDC)
Stroke 1 ... 10.000 9.000, 10.000, 18.000 9.000, 10.000, 18.000
Output
Incremental signal
Zero impulse
Output frequency
Push-Pull (Line-driver)
K1, K2 and inverse
K0, 1 / revolution, inverse
160 kHz (300 kHz)
Push-Pull (Line-driver)
K1, K2 and inverse
K0, 1 / revolution, inverse
160 kHz (300 kHz)
K1, K2 and inverse
K0, 1 / revolution, inverse
160 kHz (300 kHz)
Mechanical permissible speed 6.000 min-1 4.000 min-1 4.000 min-1
Available shaft diameter 16 ... 28 mm 16 ... 28 mm 20 ... 22 mm
Moment of inertia (typically) 60 x 10-6 kg m2 - -
Mass (typically) 0,4 kg - -
Vibration, DIN EN 60068-2-6 < 100 m/s2(10 g) < 10 g, sine 10-2.000 Hz< 10 g, sine 10-2.000 Hz
Shock, DIN EN 60068-2-27 < 1.000 m/s2(100 g) < 1000 m/s2 (100 g) < 1000 m/s2 (100 g)
Working temperature 0 °C ... +80 °C 0 °C ... +80 °C 0 °C ... +80 °C
Storage temperature -30 °C ... +80 °C - -
Protection class (DIN EN 6052: 1991) IP 65 IP 64 IP 64

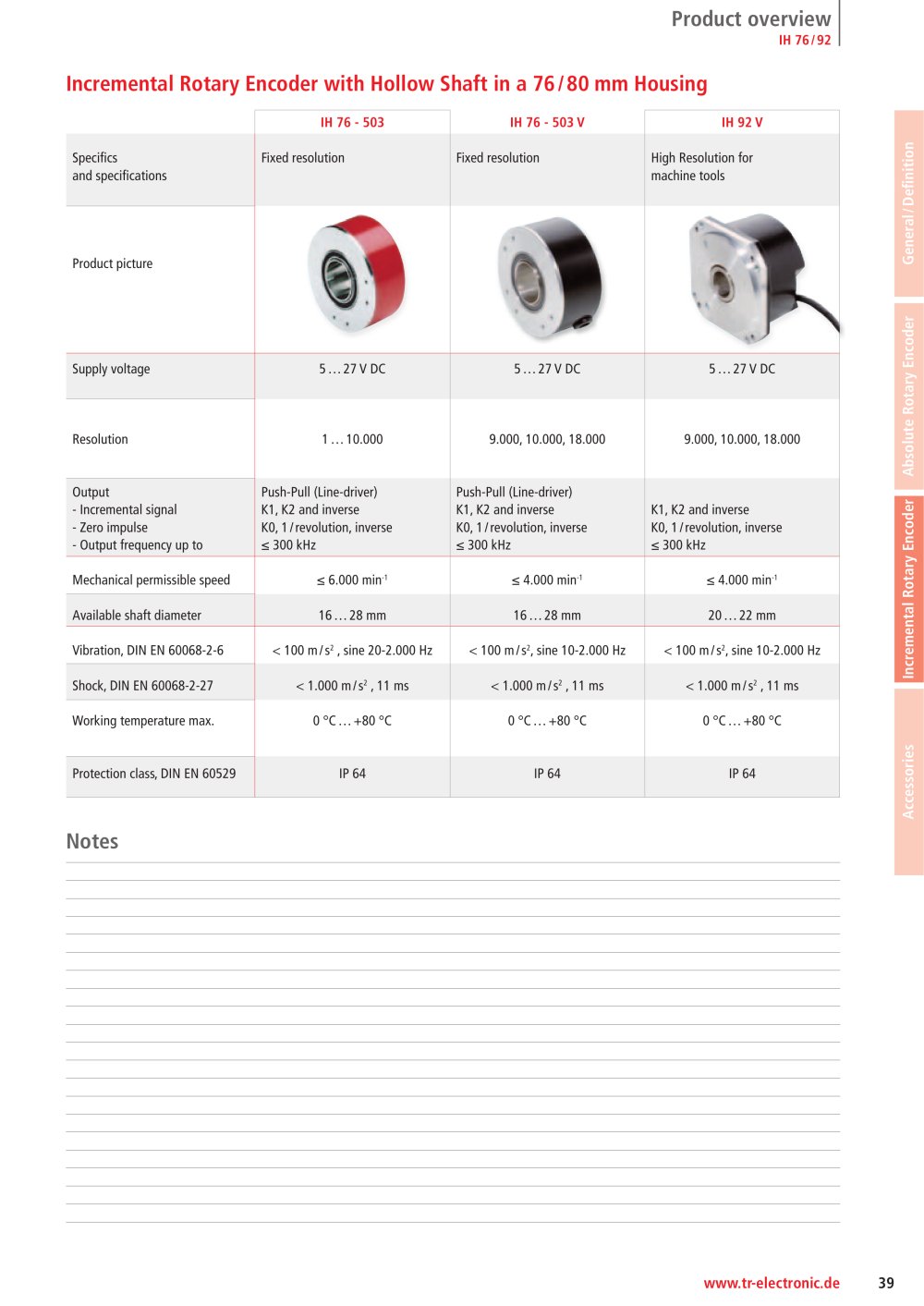

Incremental Rotary Encoder with Hollow Shaft in a 76 / 80 mm Housing
Notes
