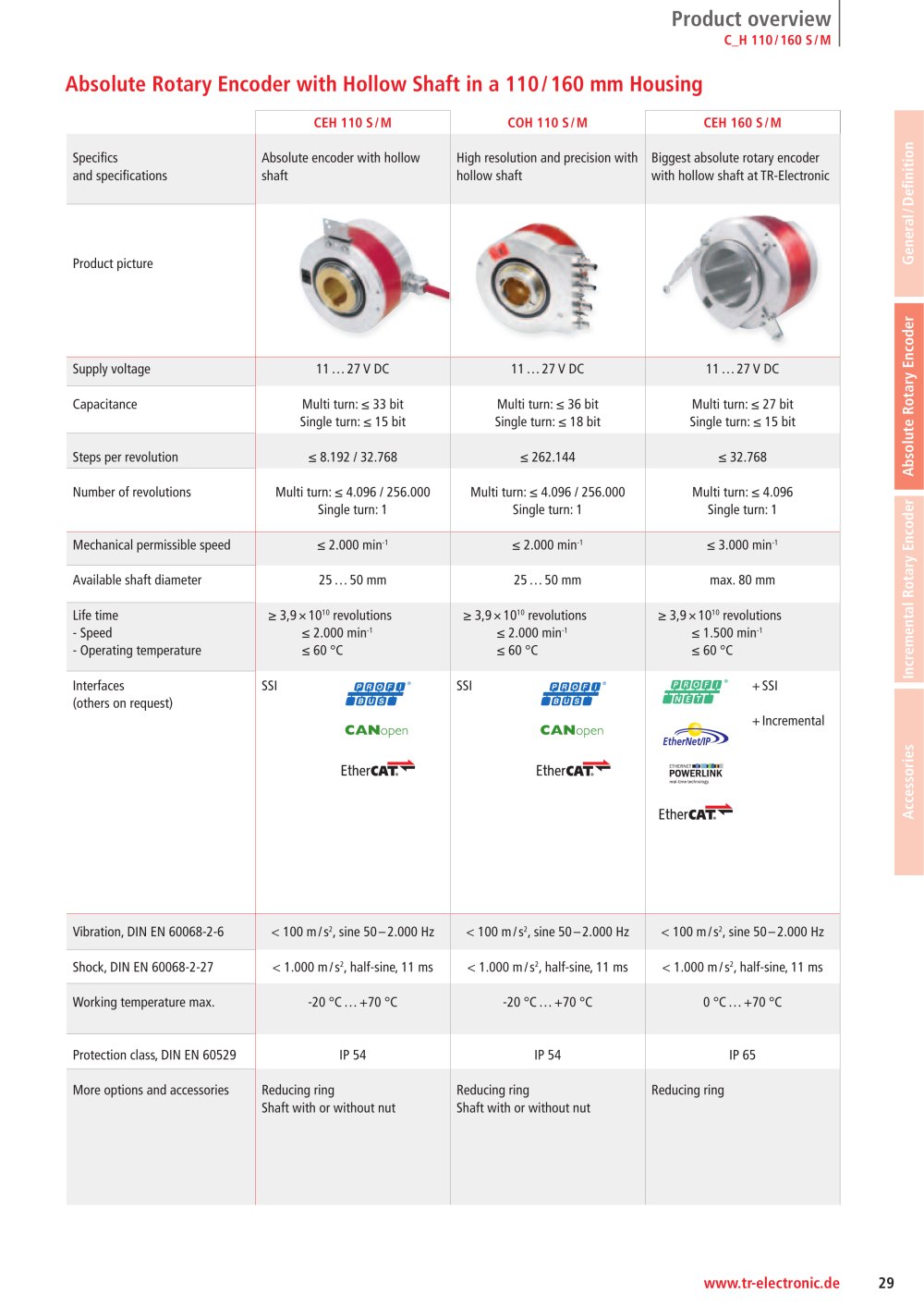

www 29 .tr-electronic.de General / Definition Accessories Incremental Rotary Encoder Absolute Rotary Encoder CEH 110 S/M COH 110 S/M CEH 160 S/M Specifics and specifications Real absolut encoder with hollow shaft High resolution and precision with hollow shaft Biggest absolut rotary encoder with hollow shaft at TR-Electronic Product picture Supply voltage 11 ... 27 VDC 11 ... 27 VDC 11 ... 27 VDC Capacitance Multi turn: 33 bit Single turn: 15 bit Multi turn: 36 bit Single turn: 18 bit Multi turn: 27 bit Single turn: 15 bit Steps per revolution 32.768 262.144 32.768 Number of revolutions Multi turn: 4.096 Single turn: 1 Multi turn: 4.096 Single turn: 1 Multi turn: 4.096 Single turn: 1 Mechanical permissible speed 3.000 min-1 3.000 min-1 3.000 min-1 Available shaft diameter 27 ... 50 mm 27 ... 50 mm 50 ... 80 mm Life time Speed Operating temperature 3,9 * 1010 revolutions 2.000 min-1 60°C 3,9 * 1010 revolutions 2.000 min-1 60°C 3,9 * 1010 revolutions 1.500 min-1 60°C Permissible angular acceleration 104 rad/s2 104 rad/s2 - Moment of inertia (typically) 2,5 * 10-6 kg m2 2,5 * 10-6 kg m2 - Mass (typically) 1,75 kg 1,75 kg 4,4 kg Interfaces SSI SSI + SSI + Incremental Vibration, DIN EN 60068-2-6< 100 m/s2, sine 50-2.000 Hz< 100 m/s2, sine 50-2.000 Hz< 100 m/s2, sine 50-2.000 Hz Shock, DIN EN 60068-2-27< 1.000 m/s2, half-sine 11ms< 1.000 m/s2, half-sine 11ms< 1.000 m/s2, half-sine 11ms Working temperature 0 °C ... +60 °C expanded temperature range opt. 0 °C ... +60 °C expanded temperature range opt. 0 °C ... +70 °C Storage temperature -30 °C ... +85 °C, dry -30 °C ... +85 °C, dry -30 °C ... +85 °C, dry Protection class (DIN EN 6052: 1991) IP 54 IP 54 IP 54 More options and accessories Reducing ring Shaft with or without nut Reducing ring Shaft with or without nut Reducing ring Absolute Rotary Encoder with Hollow Shaft in a 110 / 160 mm Housing POWERLINK ETHERNET real-time technology Product overview C_H-110/160-S/M
