Overview Rotary Encoders - TR ELECTRONIC - #2

Text version of the page

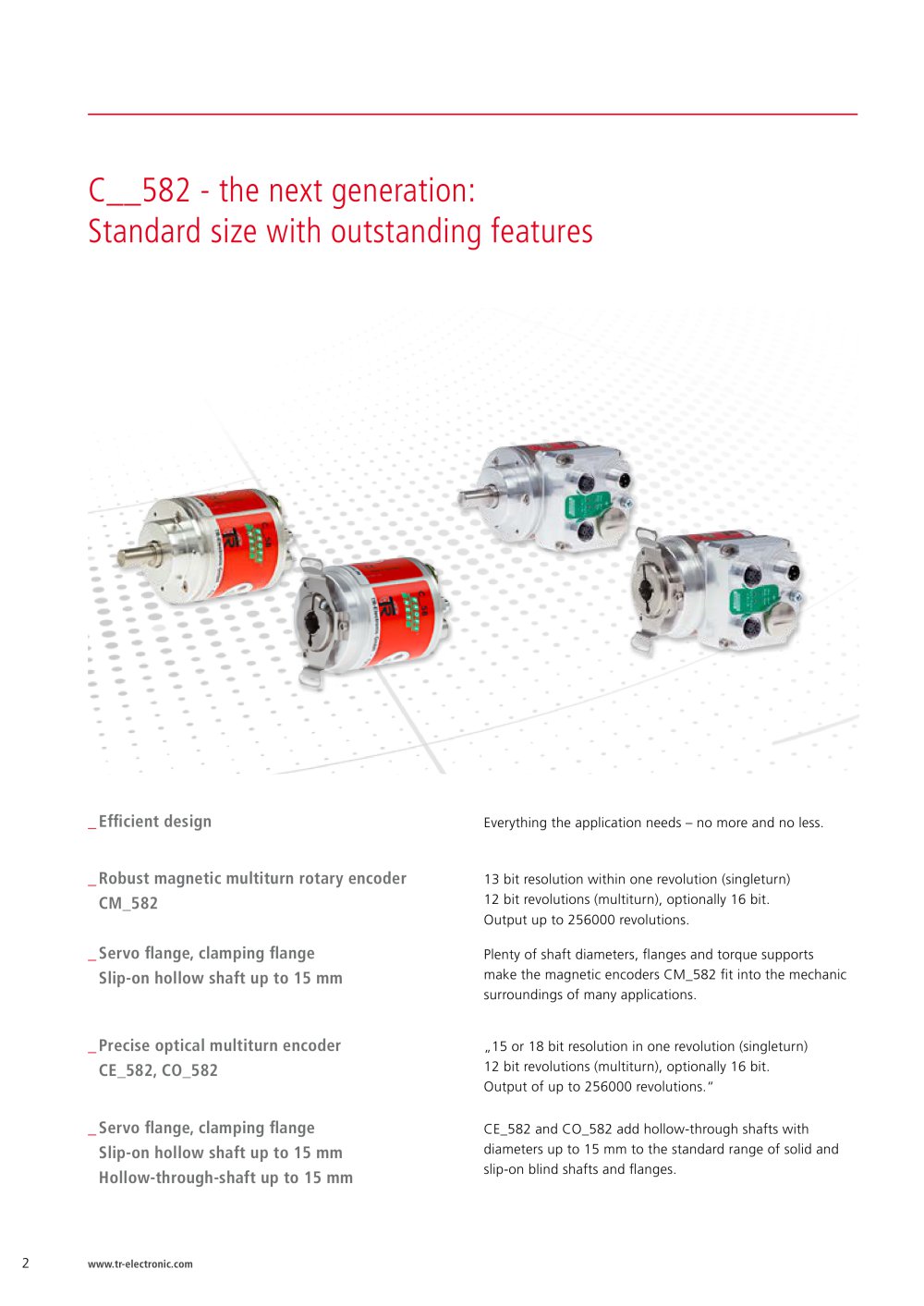

General / Definition Accessories Incremental Rotary Encoder Absolute Rotary Encoder 2 TR-Electronic GmbH Rotary encoder for each application TR-Electronic - Your Partner in Automation For more than 25 years TR-Electronic has been a very successful com- pany. We have over 300 employees with global reach. Our recipe for success: a lot of innovation and flexibility in everything we do. With our automation and communication capabilities we deliver qua- lity products for the automation industry. TR-Electronic GmbH is a constant within the sensor industry – more precisely in the development and production of digital angular and distance measurement systems for automation: from absolute and incremental rotary encoder, magnetostrictive transducers and laser distance measurement systems, electrical compact drives and servo controllers. We offer products that are individually designed to meet your needs. As a response to new technology developments, we created the TRsystems product range, in order to provide you with complete solutions. To us in Germany, as well as to our representatives abroad, it is very important to be innovative, precise and flexibel. We respond quickly, to meet your requirements. TR systems GmbH _rotary encoder _linear encoder _laser _compact drive _development / services _industrial PC _fieldbus I/O _sensors for stamping and metal forming machines _control system Technology E optical - our standard scanning The single, as well as multi turn, rotary encoder with 13 bit per revolution (programmable) covers with its optical scanning, here abbreviated with“E”, almost every application area of the automa- tion industry. O high resolution for the industry Up to 18 bits per revolution (programmable) resolve nearly every measuring task in the industry. With direct fieldbus interfaces and Industrial Ethernet. M magnetic For low requirements in resolution, accuracy and interface variety, cost-efficient rotary encoders with magnetic scanning, abbreviated with “M”, can be realized. 1 E OM Scanning ••• ••••• •• Time response ••• ••••• •• Programmability ••••• ••• • Number of configurations ••••• •••• •• 2 3 Model You can get our absolute rotary encoder in housing diameters of 22 mm up to 115 mm. Our special hollow shaft in cubical form offers you more space – generous dimensioned connection fields, hollow shaft diameter up to 25 mm, and other options. Options V solid shaft Available: round, flat or keyed, in both imperial sizings and metric. H hollow shaft Available with: flat shaft as well as a nut/spring, depen- ding on the model up to 80 mm diameter. S blind shaft The advantage compared to the hollow shaft is, that there is no second entry to seal. Therefore, it is better suitable for higher revolutions than the hollow shaft and a higher IP rating. K integrated coupling Combines without rotating the installation of a rotary encoder with a fixed shaft within a compact model of a blind shaft. Vibrations and shaft will be balanced through a coupling element made of plastics (PU). How to find the right rotary encoder Choose according to your requiremtents: Satisfactory Good Very Good Great Amazing • • • • • • • • • • • • • • • LEGEND
