ULTRASONIC WASHING TANK 5.0 14.0 - TOSH - #2

Text version of the page

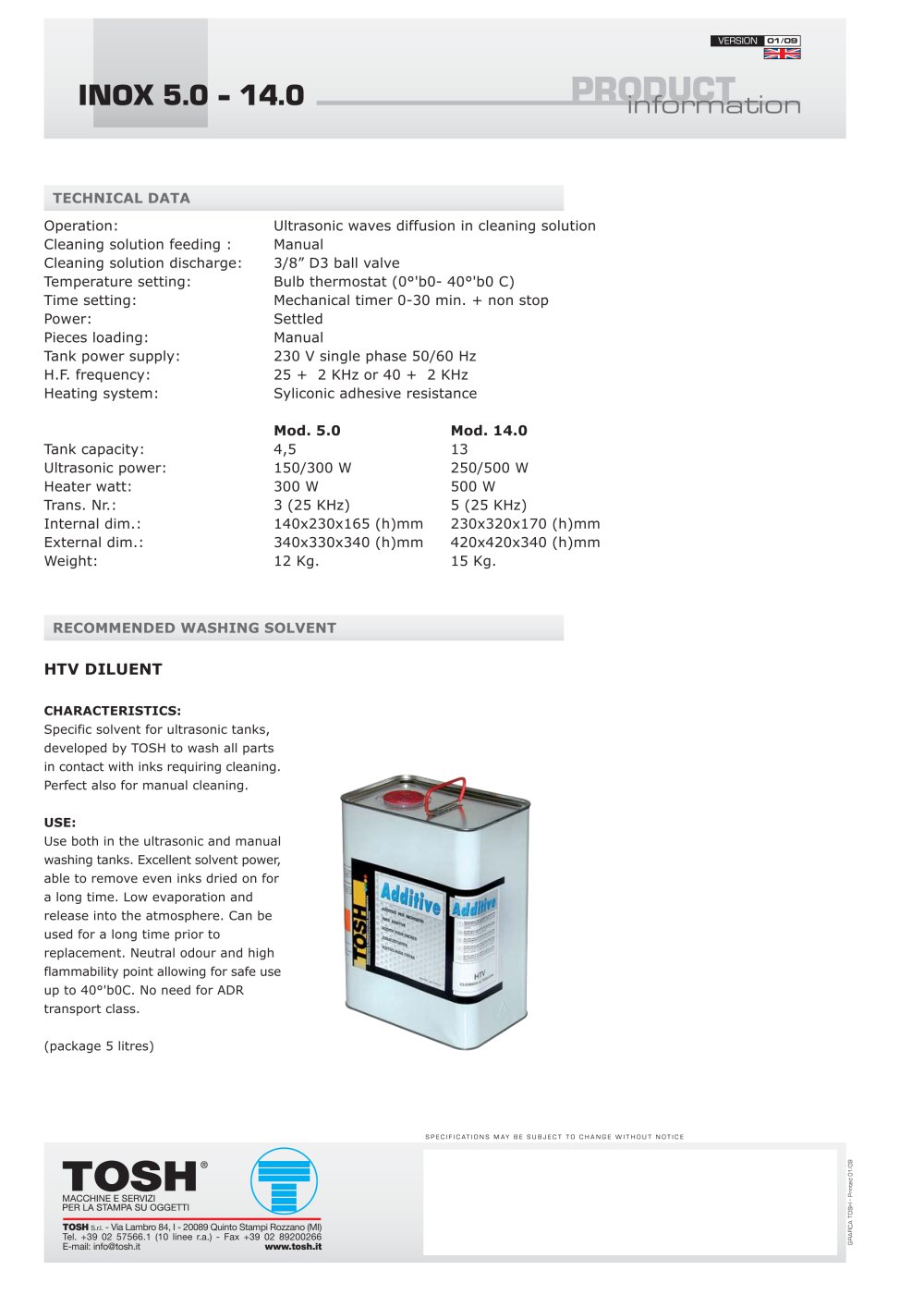

INOX 5.0 - 14.0 PROinDfoUrCmTation RECOMMENDED WASHING SOLVENT GRAFICA TOSH - Printed 01/09 TOSH S.r.l. - Via Lambro 84, I - 20089 Quinto Stampi Rozzano (MI) Tel. +39 02 57566.1 (10 linee r.a.) - Fax +39 02 89200266 E-mail: info@tosh.it www.tosh.it VERSION 01/09 S P E C I F I C ATIONS MAY B E S U B J E C T T O C H A N G E W I T H O U T N OT I C E TECHNICAL DATA Operation: Ultrasonic waves diffusion in cleaning solution Cleaning solution feeding : Manual Cleaning solution discharge: 3/8” D3 ball valve Temperature setting: Bulb thermostat (0°'b0- 40°'b0 C) Time setting: Mechanical timer 0-30 min. + non stop Power: Settled Pieces loading: Manual Tank power supply: 230 V single phase 50/60 Hz H.F. frequency: 25 + 2 KHz or 40 + 2 KHz Heating system: Syliconic adhesive resistance Mod. 5.0 Mod. 14.0 Tank capacity: 4,5 13 Ultrasonic power: 150/300 W 250/500 W Heater watt: 300 W 500 W Trans. Nr.: 3 (25 KHz) 5 (25 KHz) Internal dim.: 140x230x165 (h)mm 230x320x170 (h)mm External dim.: 340x330x340 (h)mm 420x420x340 (h)mm Weight: 12 Kg. 15 Kg. HTV DILUENT CHARACTERISTICS: Specific solvent for ultrasonic tanks, developed by TOSH to wash all parts in contact with inks requiring cleaning. Perfect also for manual cleaning. USE: Use both in the ultrasonic and manual washing tanks. Excellent solvent power, able to remove even inks dried on for a long time. Low evaporation and release into the atmosphere. Can be used for a long time prior to replacement. Neutral odour and high flammability point allowing for safe use up to 40°'b0C. No need for ADR transport class. (package 5 litres)
