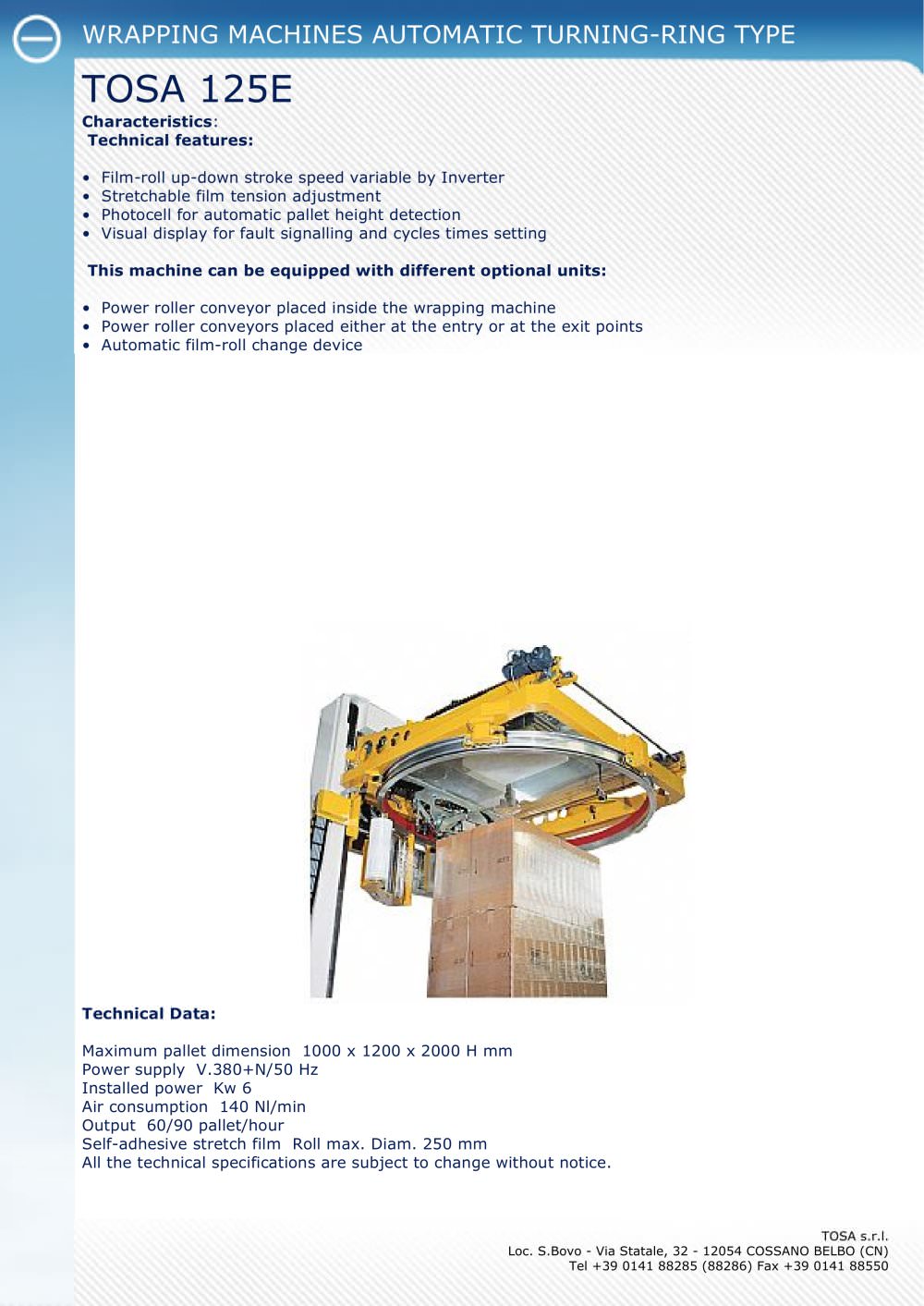

TOSA 125E-EN - Tosa - #2

WRAPPING MACHINES AUTOMATIC TURNING-RING TYP

TOSA 125E

Characteristics: Technical features:

• Film-roll up-down stroke speed variable by Inverter

• Stretchable film tension adjustment

• Photocell for automatic pallet height detection

• Visual display for fault signalling and cycles times setting

This machine can be equipped with different optional units:

• Power roller conveyor placed inside the wrapping machine

• Power roller conveyors placed either at the entry or at the exit points

• Automatic film-roll change device

I

Technical Data:

Maximum pallet dimension 1000 x 1200 x 2000 H mm

Powersupply V.380+N/50Hz

Installed power Kw 6

Air consumption 140 Nl/min

Output 60/90 pallet/hour

Self-adhesive stretch film Roll max. Diam. 250 mm

All the technical specifications are subject to change without notice.
