| Q STRAPPING MACHINES HORIZONTA | ||||||||||||

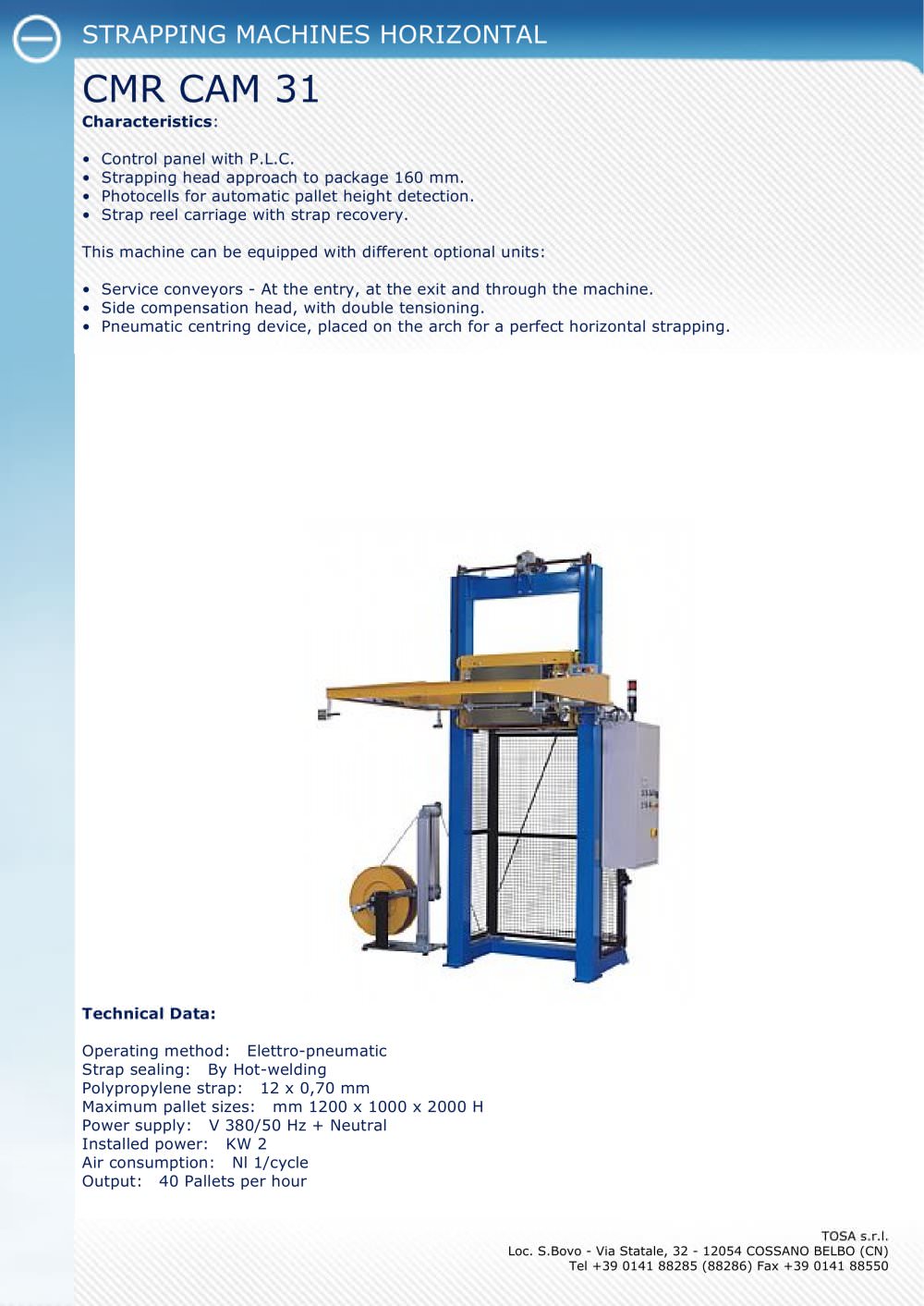

| CMR CAM 31 Characteristics: • Control panel with P.L.C. • Strapping head approach to package 160 mm. • Photocells for automatic pallet height detection. • Strap reel carriage with strap recovery. This machine can be equipped with different optional units: • Service conveyors - At the entry, at the exit and through the machine. • Side compensation head, with double tensioning. • Pneumatic centring device, placed on the arch for a perfect horizontal strapping. | ||||||||||||
| I | ||||||||||||
| Technical Data: Operating method: Elettro-pneumatic Strap sealing: By Hot-welding Polypropylene strap: 12 x 0,70 mm Maximum pallet sizes: mm 1200 x 1000 x 2000 H Power supply: V 380/50 Hz + Neutral Installed power: KW 2 Airconsumption: Nll/cycle Output: 40 Pallets per hour | ||||||||||||
| TOSA s.r.l. Loc. S.Bovo - Via Statale, 32 - 12054 COSSANO BELBO (CN) Tel +39 0141 88285 (88286) Fax +39 0141 88550 | ||||||||||||
