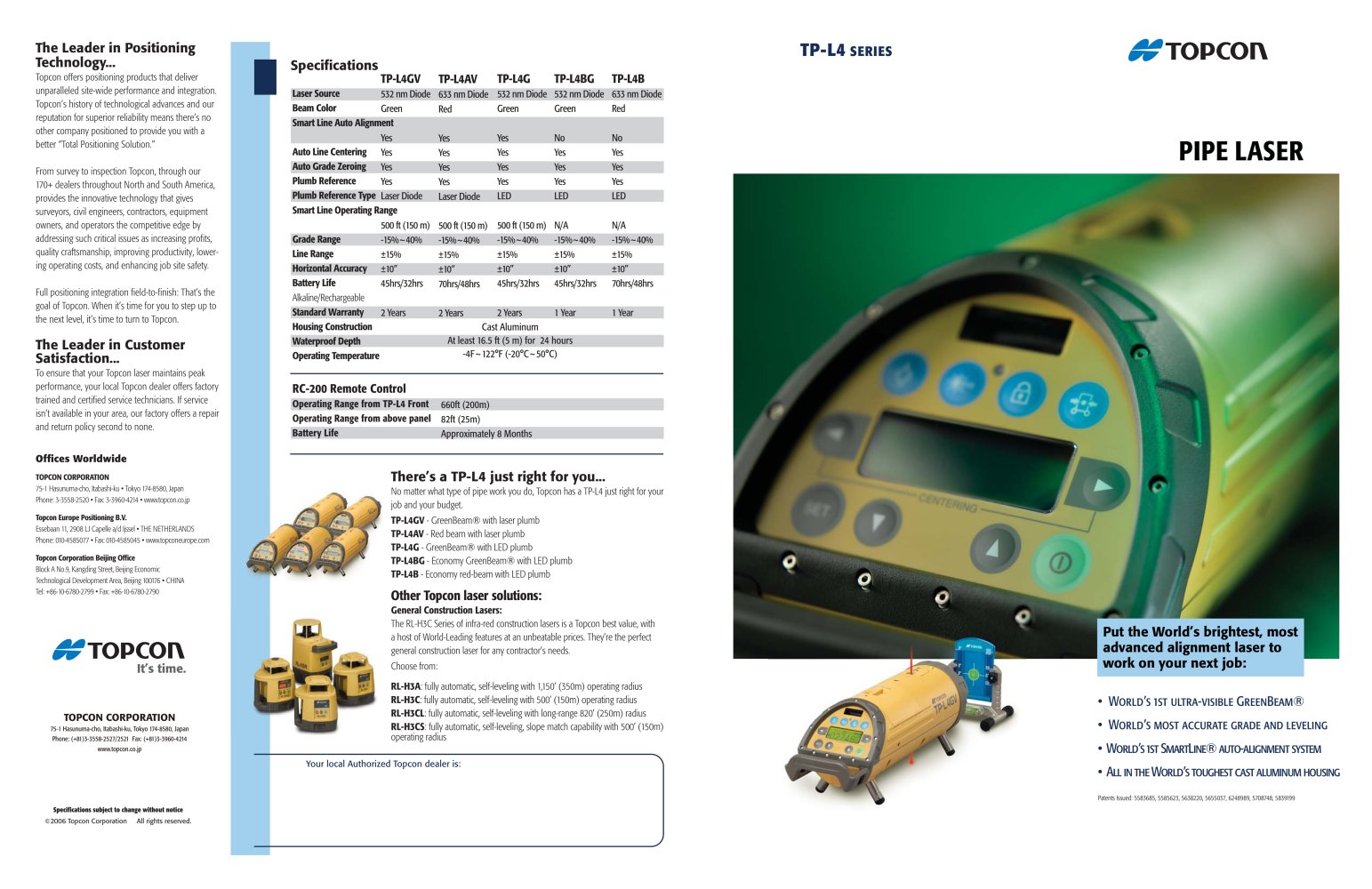

TP-L4 series  	PIPE LASER - TOPCON
P. 01
TP-L4 series  	PIPE LASER - TOPCON
P. 02
Pages:
TP-L4 series  	PIPE LASER - TOPCON


See other catalogues for TOPCON

Text version of the page
âfiTTOPCOI\
The Leader in Positioning Technology...
Topcon offers positioning products that deliver unparalleled site-wide performance and integration. Topcon's history of technological advances and our reputation for superior reliability means there's no other company positioned to provide you with a better "Total Positioning Solution."
From survey to inspection Topcon, through our 170+ dealers throughout North and South America, provides the innovative technology that gives surveyors, civil engineers, contractors, equipment owners, and operators the competitive edge by addressing such critical issues as increasing profits, quality craftsmanship, improving productivity, lower­ing operating costs, and enhancing job site safety.
Full positioning integration field-to-finish: That's the goal of Topcon. When it's time for you to step up to the next level, it's time to turn to Topcon.
The Leader in Customer Satisfaction...
To ensure that your Topcon laser maintains peak performance, your local Topcon dealer offers factory trained and certified service technicians. If service isn't available in your area, our factory offers a repair and return policy second to none.
Offices Worldwide
TOPCON CORPORATION
75-1 Hasunuma-cho, Itabashi-ku • Tokyo 174-8580, Japan Phone: 3-3558-2520 • Fax: 3-3960-4214 • www.topcon.co.jp
Topcon Europe Positioning B.V.
Essebaan 11, 2908 LJ Capelle a/d Ijssel • THE NETHERLANDS Phone: 010-4585077 • Fax: 010-4585045 • www.topconeurope.com
Topcon Corporation Beijing Office
Block A No.9, Kangding Street, Beijing Economic Technological Development Area, Beijing 100176 • CHINA
Tel: +86-10-6780-2799 • Fax: +86-10-6780-2790
TP-L4 series
Specifications
TP-L4GV
TP-L4AV
TP-L4G
TP-L4BG
TP-L4B
Laser Source
532 nm Diode
633 nm Diode
532 nm Diode
532 nm Diode
633 nm Diode
Beam Color
Green
Red
Green
Green
Red
Smart Line Auto Alignment
Yes
Yes
Yes
No
No
Auto Line Centering
Yes
Yes
Yes
Yes
Yes
Auto Grade Zeroing
Yes
Yes
Yes
Yes
Yes
Plumb Reference
Yes
Yes
Yes
Yes
Yes
Plumb Reference Type Laser Diode
Laser Diode
LED
LED
LED
Smart Line Operating Range
500 ft (150 m)
500 ft (150 m)
500 ft (150 m)
N/A
N/A
Grade Range
-15°/o~40°/o
-15°/o~40°/o
-15/~40/
-15/~40/
-15/~40/
Line Range
±15%
±15%
±15/
±15/
±15/
Horizontal Accuracy
±10"
±10"
±10"
±10"
±10"
Battery Life
45hrs/32hrs
70hrs/48hrs
45hrs/32hrs
45hrs/32hrs
70hrs/48hrs
Alkaline/Rechargeable
Standard Warranty
2 Years
2 Years
2 Years
1 Year
1 Year
Housing Construction
Cast Aluminum
Waterproof Depth
At least 16.5 ft (5 m) for 24 hours
PIPE LASER
-4F~122°F (-20°C~50°C)
Operating Temperature
RC-200 Remote Control
Operating Range from TP-L4 Front Operating Range from above panel Battery Life
660ft (200m)
82ft (25m)
Approximately 8 Months
There's a TP-L4 just right for you...
No matter what type of pipe work you do, Topcon has a TP-L4 just right for your job and your budget.
TP-L4GV - GreenBeam® with laser plumb TP-L4AV - Red beam with laser plumb TP-L4G - GreenBeam® with LED plumb TP-L4BG - Economy GreenBeam® with LED plumb TP-L4B - Economy red-beam with LED plumb
Other Topcon laser solutions:
General Construction Lasers:
The RL-H3C Series of infra-red construction lasers is a Topcon best value, with a host of World-Leading features at an unbeatable prices. They're the perfect general construction laser for any contractor's needs. Choose from:
RL-H3A: fully automatic, self-leveling with 1,150' (350m) operating radius
RL-H3C: fully automatic, self-leveling with 500' (150m) operating radius
RL-H3CL: fully automatic, self-leveling with long-range 820' (250m) radius
RL-H3CS: fully automatic, self-leveling, slope match capability with 500' (150m) operating radius
ATTOPCOIX
If s time.
• World's 1st ultra-visible GreenBeam®
• World's most accurate grade and leveling
• World's ist SmartLine® auto-alignment system
• All in the World's toughest cast aluminum housing
Patents Issued: 5583685, 5585623, 5638220, 5655037, 6248989,5708748, 5839199
TOPCON CORPORATION
75-1 Hasunuma-cho, Itabashi-ku, Tokyo 174-8580, Japan Phone: (+81)3-3558-2527/2521 Fax: (+81)3-3960-4214 www.topcon.co.jp
Your local Authorized Topcon dealer is:
Specifications subject to change without notice
©2006 Topcon Corporation All rights reserved.
