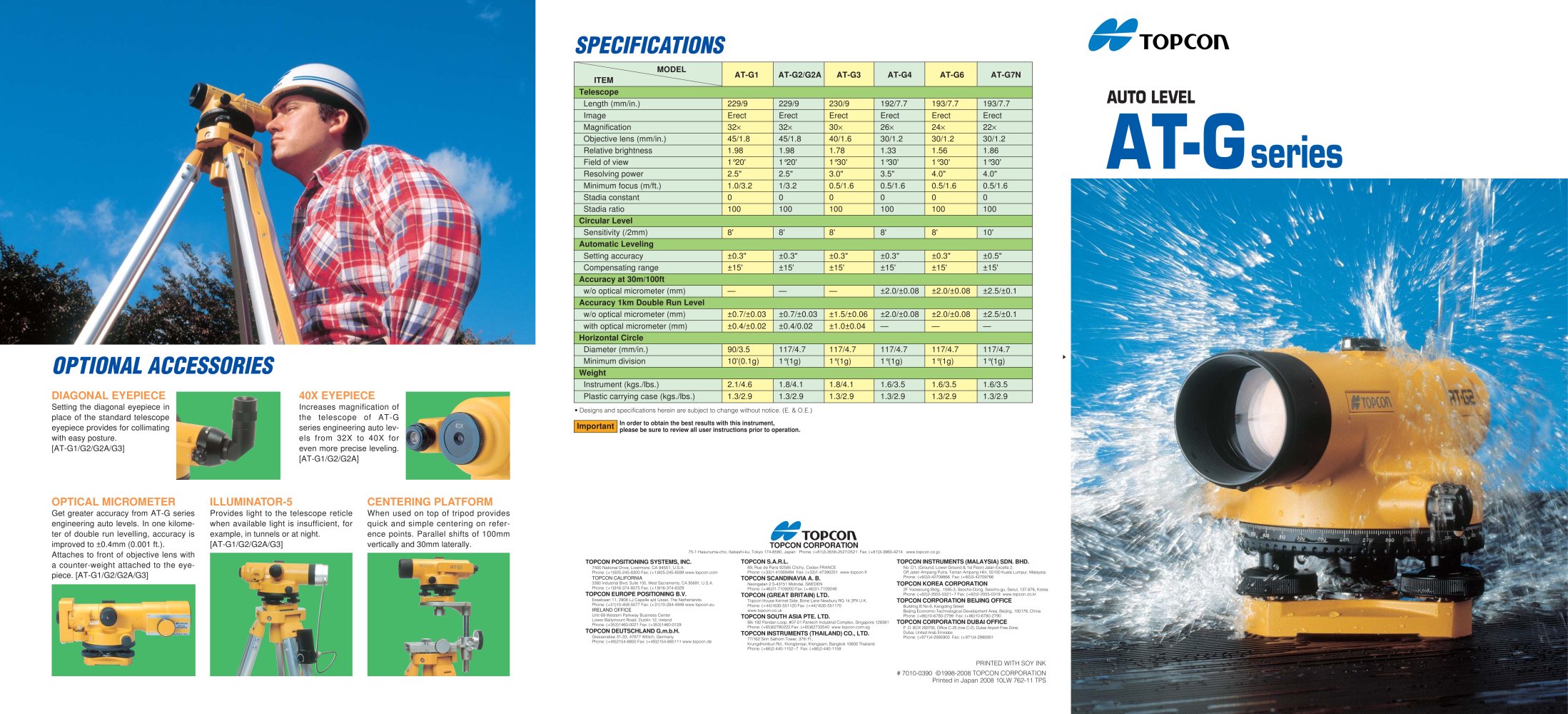

AT-G series AUTO LEVEL - TOPCON - (Version JPG) - PDF Catalogue | Technical Documentation

See other catalogues for TOPCON

Scanner, Rotating laser, Receiver, Total station, Laser receiver

Text version of the page

TOPCOI\

SPECIFICATIONS


~--^_^JVK)DEL ITEM ~ ~---	AT-G1	AT-G2/G2A	AT-G3	AT-G4	AT-G6	AT-G7N
Telescope
Length (mm/in.)	229/9	229/9	230/9	192/7.7	193/7.7	193/7.7
Image	Erect	Erect	Erect	Erect	Erect	Erect
Magnification	32x	32x	30x	26x	24x	22x
Objective lens (mm/in.)	45/1.8	45/1.8	40/1.6	30/1.2	30/1.2	30/1.2
Relative brightness	1.98	1.98	1.78	1.33	1.56	1.86
Field of view	1°20'	1=20'	1=30'	1=30'	1=30'	1=30'
Resolving power	2.5"	2.5"	3.0"	3.5"	4.0"	4.0"
Minimum focus (m/ft.)	1.0/3.2	1/3.2	0.5/1.6	0.5/1.6	0.5/1.6	0.5/1.6
Stadia constant	0	0	0	0	0	0
Stadia ratio	100	100	100	100	100	100
Circular Level
Sensitivity (/2mm)	8'	8'	8'	8'	8'	10'
Automatic Leveling
Setting accuracy	±0.3"	±0.3"	±0.3"	±0.3"	±0.3"	±0.5"
Compensating range	±15'	±15'	±15'	±15'	±15'	±15'
Accuracy at 30m/100ft
w/o optical micrometer (mm)	—	—	—	±2.0/±0.08	±2.0/±0.08	±2.5/±0.1
Accuracy 1km Double Run Level
w/o optical micrometer (mm)	±0.7/±0.03	±0.7/±0.03	±1.5/±0.06	±2.0/±0.08	±2.0/±0.08	±2.5/±0.1
with optical micrometer (mm)	±0.4/±0.02	±0.4/0.02	±1.0±0.04	—	—	—
Horizontal Circle
Diameter (mm/in.)	90/3.5	117/4.7	117/4.7	117/4.7	117/4.7	117/4.7
Minimum division	10'(0.1g)	1=(1g)	1=(1g)	1=(1g)	1=(1g)	1=(1g)
Weight
Instrument (kgs./lbs.)	2.1/4.6	1.8/4.1	1.8/4.1	1.6/3.5	1.6/3.5	1.6/3.5
Plastic carrying case (kgs./lbs.)	1.3/2.9	1.3/2.9	1.3/2.9	1.3/2.9	1.3/2.9	1.3/2.9

auto level

Al'Üseries

OPTIONAL ACCESSORIES

DIAGONAL EYEPIECE

Setting the diagonal eyepiece in place of the standard telescope eyepiece provides for collimating with easy posture. [AT-G1/G2/G2A/G3]

40X EYEPIECE

Increases magnification of the telescope of AT-G series engineering auto levels from 32X to 40X for even more precise leveling. [AT-G1/G2/G2A]

• Designs and specifications herein are subject to change without notice. (E. & O.E.)

Important !" ^ord^er '⁰ obtain the best results with this instrument,

^p_I please be sure to review all user instructions prior to operation.

CENTERING PLATFORM

When used on top of tripod provides quick and simple centering on reference points. Parallel shifts of 100mm vertically and 30mm laterally.

ILLUMINAI UK-

Get greater accuracy from AT-G series Provides light to the telescope reticle

engineering auto levels. In one kilome- when available light is insufficient, for

ter of double run levelling, accuracy is example, in tunnels or at night.

improved to ±0.4mm (0.001 ft.). [AT-G1/G2/G2A/G3] Attaches to front of objective lens with a counter-weight attached to the eyepiece. [AT-G1/G2/G2A/G3]
