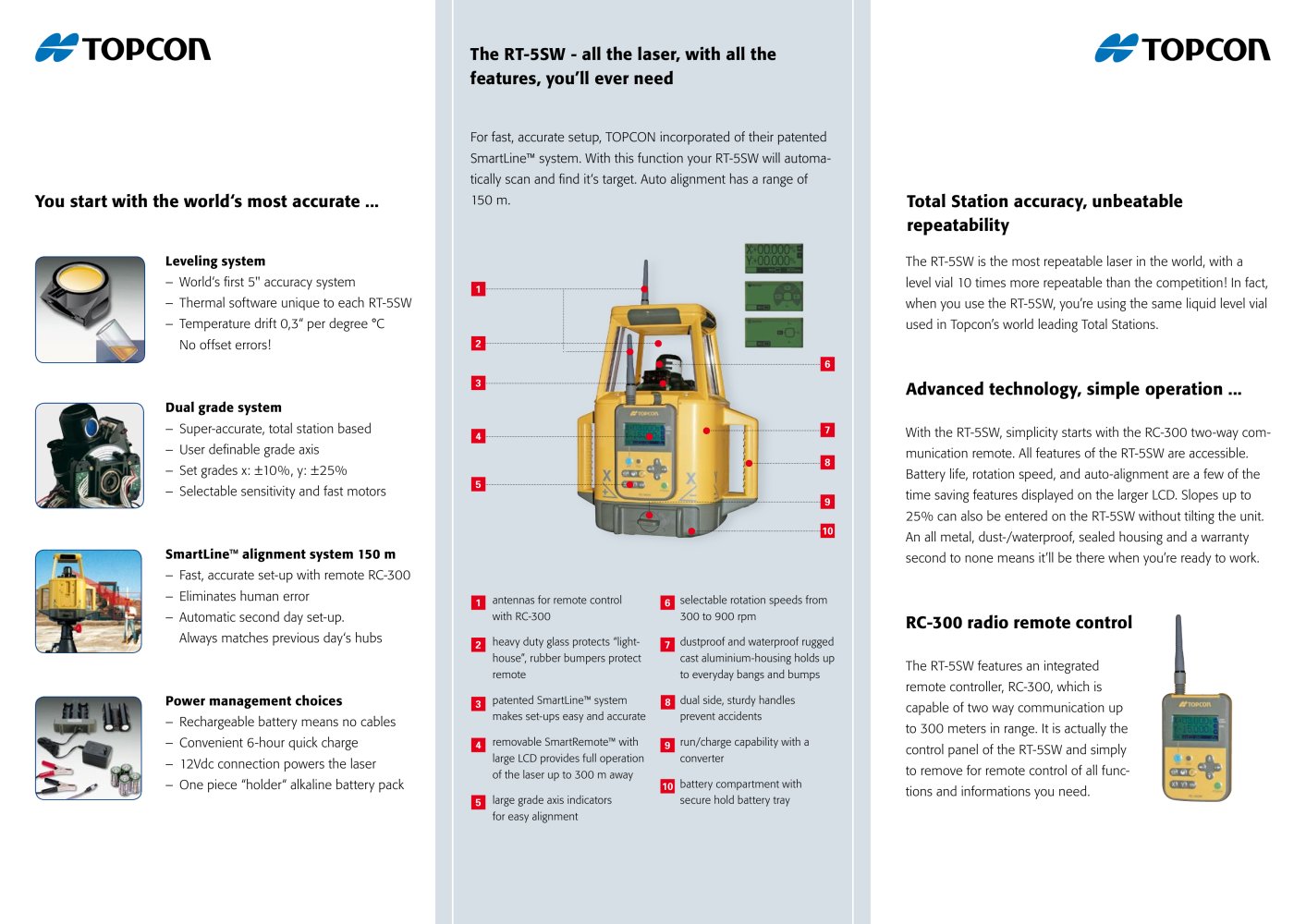

Leveling system – World‘s first 5" accuracy system – Thermal software unique to each RT-5SW – Temperature drift 0,3“ per degree °C No offset errors! Dual grade system – Super-accurate, total station based – User definable grade axis – Set grades x: ±10%, y: ±25% – Selectable sensitivity and fast motors SmartLine™ alignment system 150 m – Fast, accurate set-up with remote RC-300 – Eliminates human error – Automatic second day set-up. Always matches previous day‘s hubs Power management choices – Rechargeable battery means no cables – Convenient 6-hour quick charge – 12Vdc connection powers the laser – One piece “holder“ alkaline battery pack You start with the world‘s most accurate ... The RT-5SW - all the laser, with all the features, you’ll ever need antennas for remote control with RC-300 heavy duty glass protects “lighthouse”, rubber bumpers protect remote patented SmartLine™ system makes set-ups easy and accurate removable SmartRemote™ with large LCD provides full operation of the laser up to 300 m away large grade axis indicators for easy alignment selectable rotation speeds from 300 to 900 rpm dustproof and waterproof rugged cast aluminium-housing holds up to everyday bangs and bumps dual side, sturdy handles prevent accidents run/charge capability with a converter battery compartment with secure hold battery tray 4 6 3 2 7 8 1 9 10 5 1 2 3 4 5 6 7 8 9 10 For fast, accurate setup, TOPCON incorporated of their patented SmartLine™ system. With this function your RT-5SW will automatically scan and find it‘s target. Auto alignment has a range of 150 m. Total Station accuracy, unbeatable repeatability The RT-5SW is the most repeatable laser in the world, with a level vial 10 times more repeatable than the competition! In fact, when you use the RT-5SW, you’re using the same liquid level vial used in Topcon’s world leading Total Stations. Advanced technology, simple operation ... With the RT-5SW, simplicity starts with the RC-300 two-way communication remote. All features of the RT-5SW are accessible. Battery life, rotation speed, and auto-alignment are a few of the time saving features displayed on the larger LCD. Slopes up to 25% can also be entered on the RT-5SW without tilting the unit. An all metal, dust-/waterproof, sealed housing and a warranty second to none means it’ll be there when you’re ready to work. RC-300 radio remote control The RT-5SW features an integrated remote controller, RC-300, which is capable of two way communication up to 300 meters in range. It is actually the control panel of the RT-5SW and simply to remove for remote control of all functions and informations you need.
