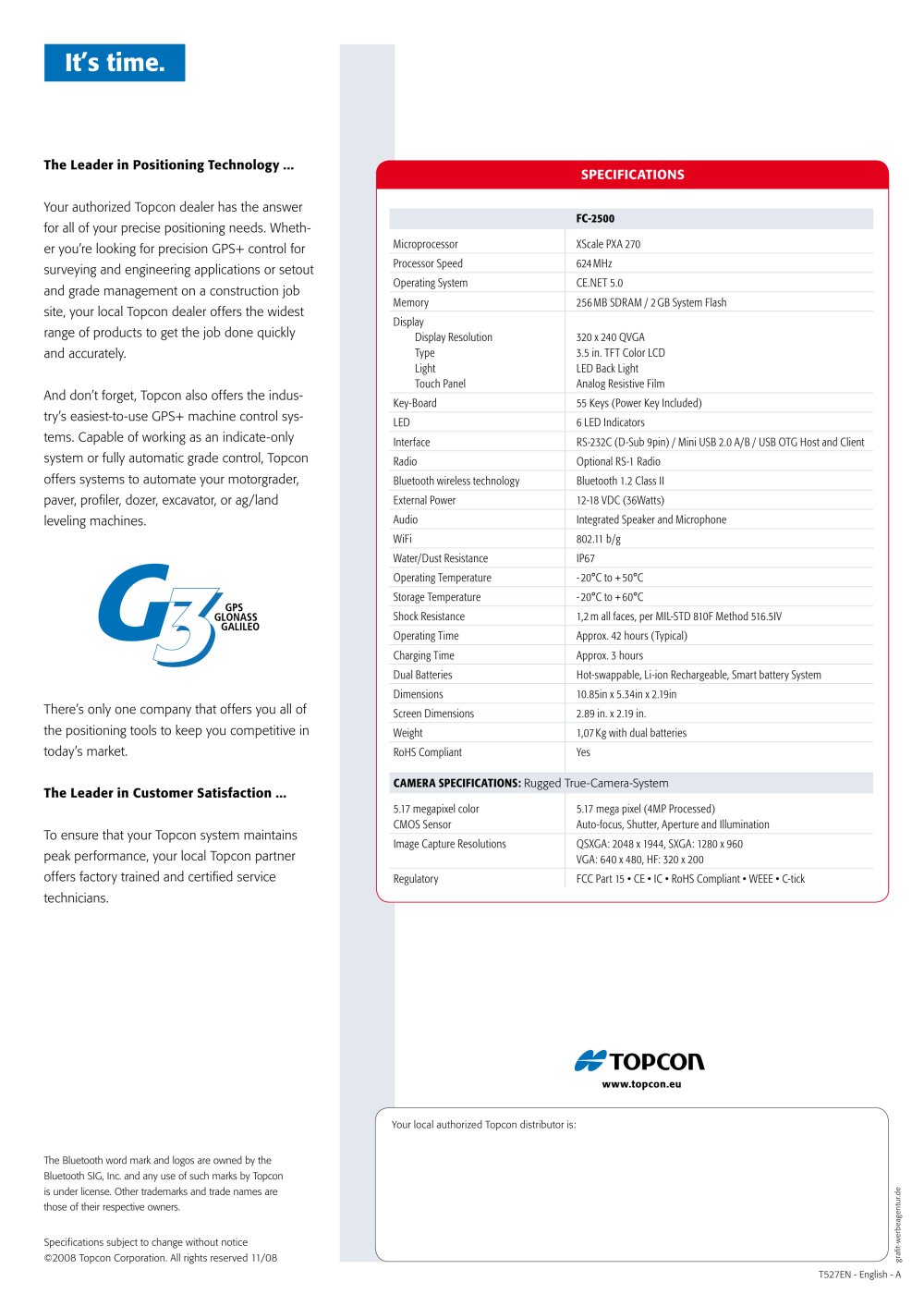

The Leader in Positioning Technology ... SPECIFICATIONS Your authorized Topcon dealer has the answer for all of your precise positioning needs. Wheth- er you’re looking for precision GPS+ control for surveying and engineering applications or setout and grade management on a construction job site, your local Topcon dealer offers the widest range of products to get the job done quickly and accurately.And don’t forget, Topcon also offers the indus-try’s easiest-to-use GPS+ machine control sys-tems. Capable of working as an indicate-only system or fully automatic grade control, Topcon offers systems to automate your motorgrader, paver, profiler, dozer, excavator, or ag/land leveling machines. There’s only one company that offers you all of the positioning tools to keep you competitive in today’s market.

FC-2500 Microprocessor XScale PXA 270 Processor Speed 624 MHzOperating System CE.NET 5.0Memory 256 MB SDRAM / 2 GB System FlashDisplay Display Resolution 320 x 240 QVGA Type 3.5 in. TFT Color LCD Light LED Back Light Touch Panel Analog Resistive FilmKey-Board 55 Keys (Power Key Included)LED 6 LED IndicatorsInterface RS-232C (D-Sub 9pin) / Mini USB 2.0 A/B / USB OTG Host and ClientRadio Optional RS-1 RadioBluetooth wireless technology Bluetooth 1.2 Class IIExternal Power 12-18 VDC (36Watts)Audio Integrated Speaker and MicrophoneWiFi 802.11 b/gWater/Dust Resistance IP67Operating Temperature - 20°C to + 50°CStorage Temperature - 20°C to + 60°CShock Resistance 1,2 m all faces, per MIL-STD 810F Method 516.5IVOperating Time Approx. 42 hours (Typical)Charging Time Approx. 3 hoursDual Batteries Hot-swappable, Li-ion Rechargeable, Smart battery SystemDimensions 10.85in x 5.34in x 2.19inScreen Dimensions 2.89 in. x 2.19 in.Weight 1,07 Kg with dual batteriesRoHS Compliant Yes

To ensure that your Topcon system maintains peak performance, your local Topcon partner offers factory trained and certified service technicians. The Leader in Customer Satisfaction ...

CAMERA SPECIFICATIONS: Rugged True-Camera-System 5.17 megapixel color 5.17 mega pixel (4MP Processed) CMOS Sensor Auto-focus, Shutter, Aperture and IlluminationImage Capture Resolutions QSXGA: 2048 x 1944, SXGA: 1280 x 960 VGA: 640 x 480, HF: 320 x 200 2EGULATORY
www.topcon.eu Your local authorized Topcon distributor is: Specifications subject to change without notice©2008 Topcon Corporation. All rights reserved 11/08The Bluetooth word mark and logos are owned by the Bluetooth SIG, Inc. and any use of such marks by Topcon is under license. Other trademarks and trade names are those of their respective owners. grafit-werbeagentur.de T527EN - English - A
