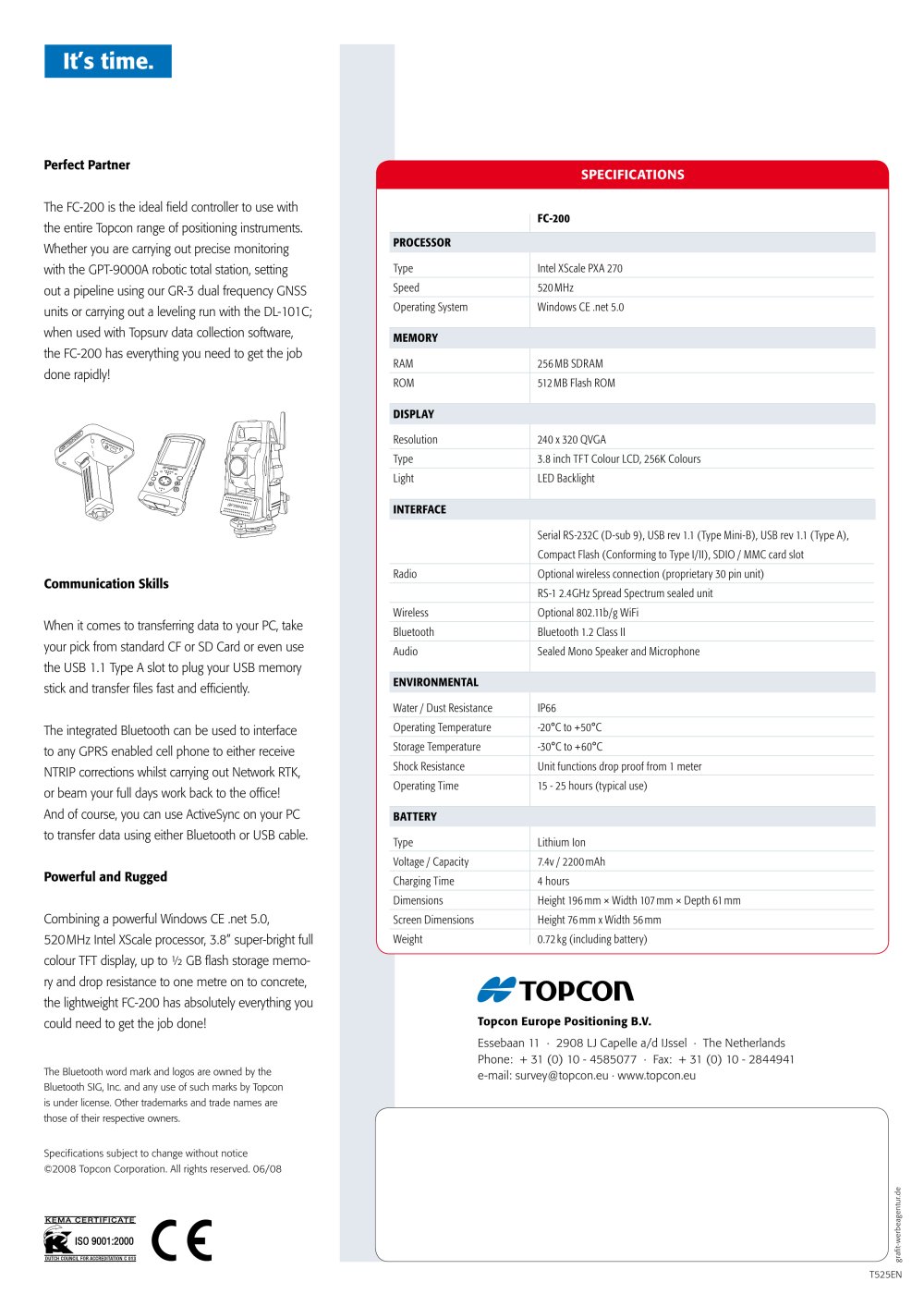

Perfect Partner SPECIFICATIONS The FC-200 is the ideal field controller to use with the entire Topcon range of positioning instruments. Whether you are carrying out precise monitoring with the GPT-9000A robotic total station, setting out a pipeline using our GR-3 dual frequency GNSS units or carrying out a leveling run with the DL-101C; when used with Topsurv data collection software, the FC-200 has everything you need to get the job done rapidly!

FC-200PROCESSOR Type Intel XScale PXA 270 Speed 520 MHzOperating System Windows CE .net 5.0 MEMORY RAM 256 MB SDRAM ROM 512 MB Flash ROM

Communication Skills Combining a powerful Windows CE .net 5.0, 520 MHz Intel XScale processor, 3.8” super-bright full colour TFT display, up to ½ GB flash storage memo- ry and drop resistance to one metre on to concrete, the lightweight FC-200 has absolutely everything you could need to get the job done! When it comes to transferring data to your PC, take your pick from standard CF or SD Card or even use the USB 1.1 Type A slot to plug your USB memory stick and transfer files fast and efficiently.The integrated Bluetooth can be used to interface to any GPRS enabled cell phone to either receive NTRIP corrections whilst carrying out Network RTK, or beam your full days work back to the office! And of course, you can use ActiveSync on your PC to transfer data using either Bluetooth or USB cable. Powerful and Rugged

DISPLAY Resolution 240 x 320 QVGAType 3.8 inch TFT Colour LCD, 256K Colours Light LED Backlight INTERFACE Serial RS-232C (D-sub 9), USB rev 1.1 (Type Mini-B), USB rev 1.1 (Type A), Compact Flash (Conforming to Type I/II), SDIO / MMC card slotRadio Optional wireless connection (proprietary 30 pin unit) RS-1 2.4GHz Spread Spectrum sealed unitWireless Optional 802.11b/g WiFi Bluetooth Bluetooth 1.2 Class IIAudio Sealed Mono Speaker and Microphone ENVIRONMENTAL Water / Dust Resistance IP66Operating Temperature -20°C to +50°CStorage Temperature -30°C to +60°CShock Resistance Unit functions drop proof from 1 meter Operating Time 15 - 25 hours (typical use) BATTERY Type Lithium Ion Voltage / Capacity 7.4v / 2200 mAhCharging Time 4 hoursDimensions Height 196 mm × Width 107 mm × Depth 61 mmScreen Dimensions Height 76 mm x Width 56 mmWeight 0.72 kg (including battery) Topcon Europe Positioning B.V. Essebaan 11 · 2908 LJ Capelle a/d IJssel · The NetherlandsPhone: + 31 (0) 10 - 4585077 · Fax: + 31 (0) 10 - 2844941 e-mail: survey@topcon.eu · www.topcon.eu
Your local authorized Topcon distributor is: Specifications subject to change without notice©2008 Topcon Corporation. All rights reserved. 06/08The Bluetooth word mark and logos are owned by the Bluetooth SIG, Inc. and any use of such marks by Topcon is under license. Other trademarks and trade names are those of their respective owners. grafit-werbeagentur.de T525EN
