T257EN - English - A
The Leader in Positioning Technology ...
Topcon offers positioning products that deliver
unparalleled site-wide performance and integration.
Topcon’s history of technological advances
and our reputation for superior reliability means
there’s no other company positioned to provide
you with a better “Total Positioning Solution.”
From survey to inspection Topcon, through
our dealer network, provides the innovative
technology that gives surveyors, civil engineers,
contractors, equipment owners and operators
the competitive edge by addressing such critical
issues as increasing profits, quality craftsmanship,
improving productivity, lowering operating
costs, and enhancing job site safety.
Full positioning integration field-to-finish:
That’s the goal of Topcon. When it’s time for
you to step up to the next level, it’s time to
turn to Topcon.
The Leader in Customer Satisfaction ...
To ensure that your Topcon instrument maintains
peak performance, your local Topcon
dealer offers factory trained and certified service
technicians. If service isn’t available in your area,
our European Service Center offers a repair and
return policy second to none.
Specifications subject to change without notice
©2010 Topcon Corporation. All rights reserved 01/2010

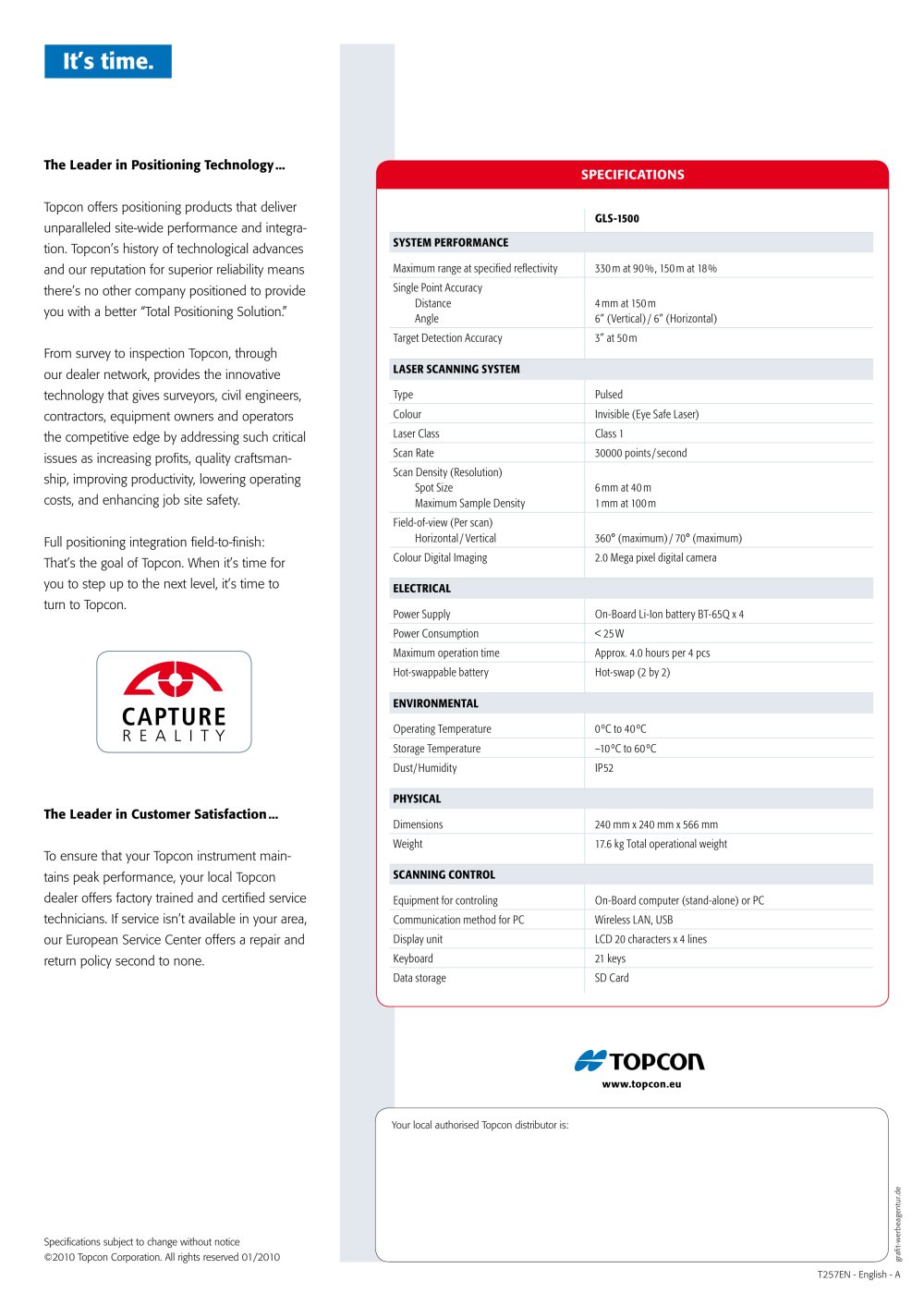

SPEC IFICA TIONS
GLS-1500
SYSTEM PERFORMANCE
Maximum range at specified reflectivity 330 m at 90%, 150 m at 18%
Single Point Accuracy
Distance 4 mm at 150 m
Angle 6” (Vertical) / 6” (Horizontal)
Target Detection Accuracy 3” at 50 m
Laser Scann ing System
Type Pulsed
Colour Invisible (Eye Safe Laser)
Laser Class Class 1
Scan Rate 30000 points / second
Scan Density (Resolution)
Spot Size 6 mm at 40 m
Maximum Sample Density 1 mm at 100 m
Field-of-view (Per scan)
Horizontal / Vertical 360° (maximum) / 70° (maximum)
Colour Digital Imaging 2.0 Mega pixel digital camera
Electr ical
Power Supply On-Board Li-Ion battery BT-65Q x 4
Power Consumption < 25 W
Maximum operation time Approx. 4.0 hours per 4 pcs
Hot-swappable battery Hot-swap (2 by 2)
Environmental
Operating Temperature 0ºC to 40 ºC
Storage Temperature –10 ºC to 60 ºC
Dust/Humidity IP52
Phys ical
Dimensions 240 mm x 240 mm x 566 mm
Weight 17.6 kg Total operational weight
Scann ing Control
Equipment for controling On-Board
computer (stand-alone) or PC
Communication method for PC Wireless LAN, USB
Display unit LCD 20 characters x 4 lines
Keyboard 21 keys
Data storage SD Card
