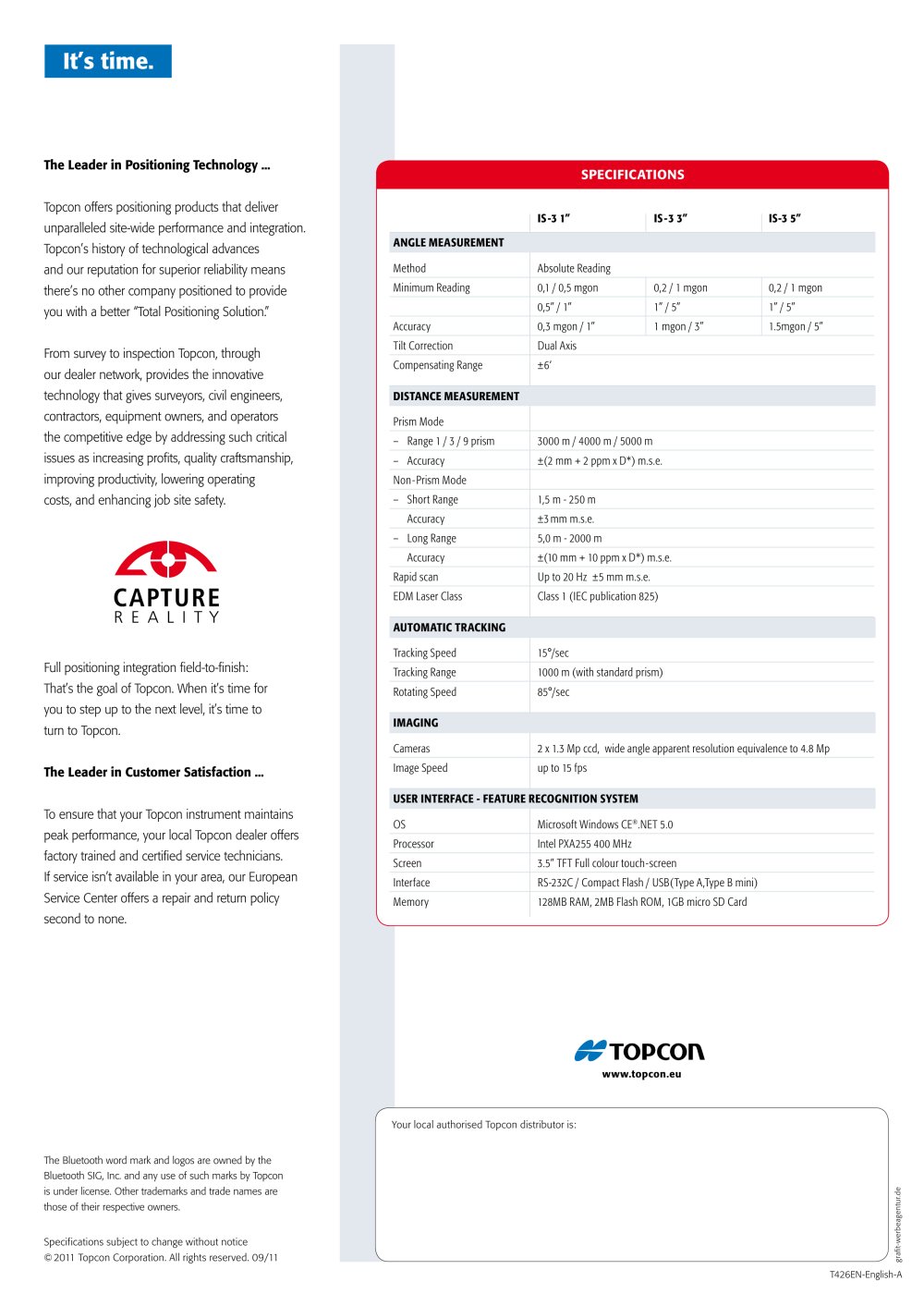

The Leader in Positioning Technology ... Topcon offers positioning products that deliver unparalleled site-wide performance and integration. Topcon’s history of technological advances and our reputation for superior reliability means there’s no other company positioned to provide you with a better “Total Positioning Solution.” From survey to inspection Topcon, through our dealer network, provides the innovative technology that gives surveyors, civil engineers, contractors, equipment owners, and operators the competitive edge by addressing such critical issues as increasing profits, quality craftsmanship, improving productivity, lowering operating costs, and enhancing job site safety. Full positioning integration field-to-finish: That’s the goal of Topcon. When it’s time for you to step up to the next level, it’s time to turn to Topcon. The Leader in Customer Satisfaction ... To ensure that your Topcon instrument maintains peak performance, your local Topcon dealer offers factory trained and certified service technicians. If service isn’t available in your area, our European Service Center offers a repair and return policy second to none. Specifications subject to change without notice ©2008 Topcon Corporation. All rights reserved. 06/08 The Bluetooth word mark and logos are owned by the Bluetooth SIG, Inc. and any use of such marks by Topcon is under license. Other trademarks and trade names are those of their respective owners. SPECIFICATIONS Your local authorised Topcon distributor is: grafit-werbeagentur.de DANGER .............................. ............................................ .............................................. .................................... ............................................ T250EN Topcon Europe Positioning B.V. Essebaan 11 · 2908 LJ Capelle a/d IJssel · The Netherlands Phone: + 31 (0) 10 - 4585077 · Fax: + 31 (0) 10 - 2844941 e-mail: survey@topcon.eu · www.topcon.eu IS-1 IS-3 ANGLE MEASUREMENT Method Absolute Reading Minimum Reading 0,1 / 0,5 mgon 0,2 / 1 mgon 0,5” / 1” 1” / 5” Accuracy 0,3 mgon / 1” 1 mgon / 3” Tilt Correction Dual Axis Compensating Range ±6‘ DISTANCE MEASUREMENT Prism Mode – Range 1 / 3 / 9 prism 3000 m / 4000 m / 5000 m – Accuracy ±(2 mm + 2 ppm x D*) m.s.e. Non-Prism Mode – Short Range 1,5 m - 250 m Accuracy ±5 mm m.s.e. – Long Range 5,0 m - 2000 m Accuracy ±(10 mm + 10 ppm x D*) m.s.e. Rapid scan Up to 20 Hz ±5 mm m.s.e. EDM Laser Class Class 1 (IEC publication 825) Automatic Trac king Tracking Speed 15°/sec Tracking Range 1000 m (with standard prism) Rotating Speed 85°/sec IMAGING Cameras 2 x 1.3 Mp ccd, wide angle apparent resolution equivalence to 4.8 Mp Image Speed up to 15 fps USER INTERFACE - Feature recognition system OS Microsoft Windows CE®.NET 4.2 Processor Intel PXA255 400 MHz Screen Full colour touch-screen Communication distance up to 900 m (dependent on local conditions) Laser pointer LD (visible laser)
