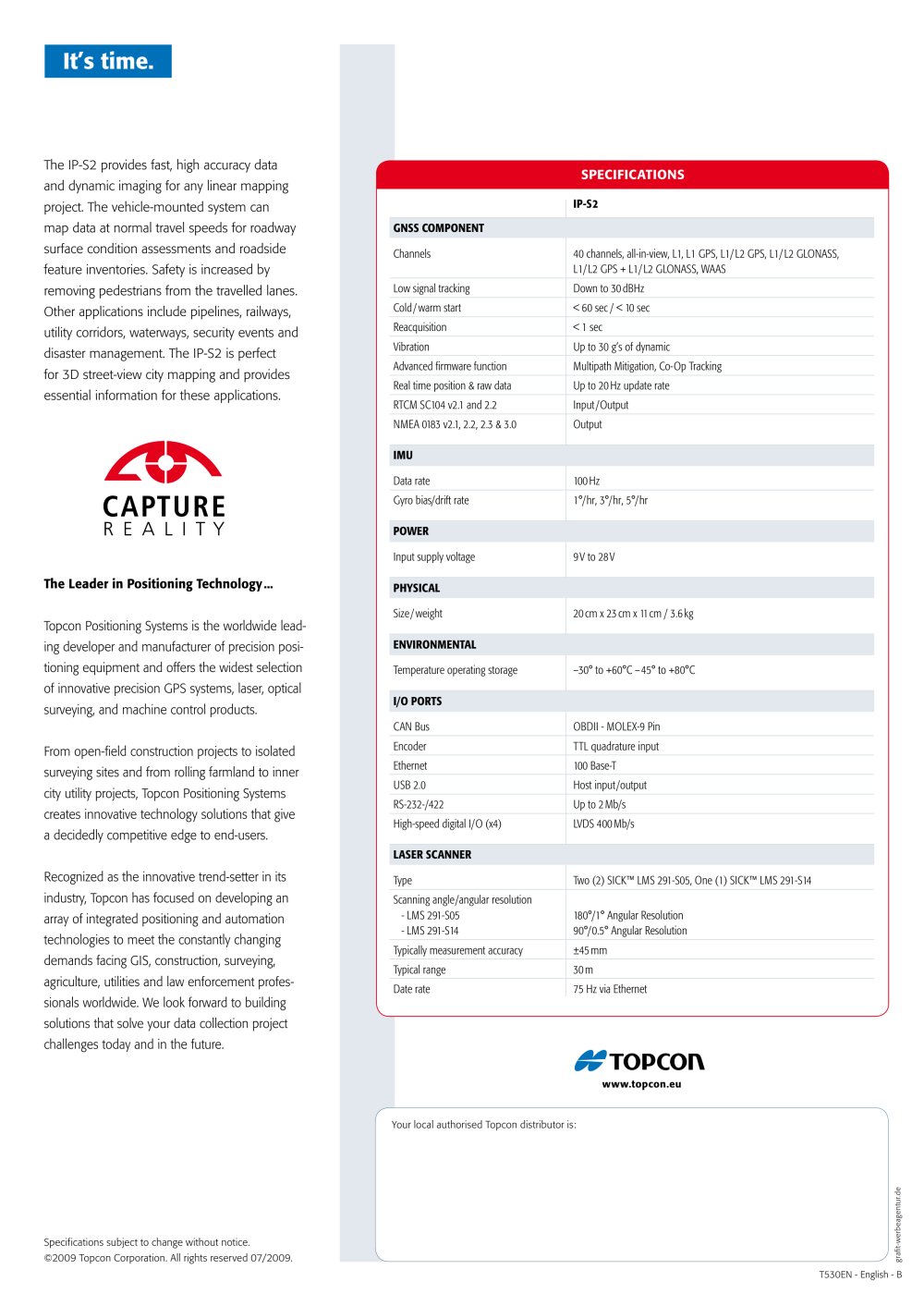

Your local authorised Topcon distributor is: www.topcon.eu Specifications subject to change without notice. ©2009 Topcon Corporation. All rights reserved 07/2009. SPECIFICAT IONS grafit-werbeagentur.de T530EN - English - B IP-S2 GNSS COMPONENT Channels 40 channels, all-in-view, L1, L1 GPS, L1/L2 GPS, L1/L2 GLONASS, L1/L2 GPS + L1/L2 GLONASS, WAAS Low signal tracking Down to 30 dBHz Cold / warm start < 60 sec / < 10 sec Reacquisition < 1 sec Vibration Up to 30 g’s of dynamic Advanced firmware function Multipath Mitigation, Co-Op Tracking Real time position & raw data Up to 20 Hz update rate RTCM SC104 v2.1 and 2.2 Input /Output NMEA 0183 v2.1, 2.2, 2.3 & 3.0 Output IMU Data rate 100 Hz Gyro bias/drift rate 1°/hr, 3°/hr, 5°/hr POWER Input supply voltage 9V to 28V PHYSICAL Size / weight 20 cm x 23 cm x 11 cm / 3.6 kg ENVIRONMENTAL Temperature operating storage –30° to +60°C –45° to +80°C I/O PORTS CAN Bus OBDII - MOLEX-9 Pin Encoder TTL quadrature input Ethernet 100 Base-T USB 2.0 Host input /output RS-232-/422 Up to 2 Mb/s High-speed digital I/O (x4) LVDS 400 Mb/s LASER SCANNER Type Two (2) SICK™ LMS 291-S05, One (1) SICK™ LMS 291-S14 Scanning angle/angular resolution - LMS 291-S05 180°/1° Angular Resolution - LMS 291-S14 90°/0.5° Angular Resolution Typically measurement accuracy ±45 mm Typical range 30 m Date rate 75 Hz via Ethernet The IP-S2 provides fast, high accuracy data and dynamic imaging for any linear mapping project. The vehicle-mounted system can map data at normal travel speeds for roadway surface condition assessments and roadside feature inventories. Safety is increased by removing pedestrians from the travelled lanes. Other applications include pipelines, railways, utility corridors, waterways, security events and disaster management. The IP-S2 is perfect for 3D street-view city mapping and provides essential information for these applications. The Leader in Positioning Technology ... Topcon Positioning Systems is the worldwide leading developer and manufacturer of precision positioning equipment and offers the widest selection of innovative precision GPS systems, laser, optical surveying, and machine control products. From open-field construction projects to isolated surveying sites and from rolling farmland to inner city utility projects, Topcon Positioning Systems creates innovative technology solutions that give a decidedly competitive edge to end-users. Recognized as the innovative trend-setter in its industry, Topcon has focused on developing an array of integrated positioning and automation technologies to meet the constantly changing demands facing GIS, construction, surveying, agriculture, utilities and law enforcement professionals worldwide. We look forward to building solutions that solve your data collection project challenges today and in the future.
