The Leader in Positioning Technology ...
Your authorized Topcon dealer has the answer
for all of your precise positioning needs. Whether
you’re looking for precision GPS+ control for
surveying and engineering applications or setout
and grade management on a construction job
site, your local Topcon dealer offers the widest
range of products to get the job done quickly
and accurately.
And don’t forget, Topcon also offers the industry’s
easiest-to-use GPS+ machine control systems.
Capable of working as an indicate-only
system or fully automatic grade control, Topcon
offers systems to automate your motorgrader,
paver, profiler, dozer, excavator, or ag/land
leveling machines.
There’s only one company that offers you all of
the positioning tools to keep you competitive in
today’s market.
The Leader in Customer Satisfaction ...
To ensure that your Topcon system maintains
peak performance, your local Topcon partner
offers factory trained and certified service
technicians.
Specifications subject to change without notice
©2010 Topcon Corporation. All rights reserved 02/10
The Bluetooth word mark and logos are owned by the
Bluetooth SIG, Inc. and any use of such marks by Topcon
is under license. Other trademarks and trade names are
those of their respective owners.
Your local authorized Topcon distributor is:
grafit-werbeagentur.de
T535EN - English - A

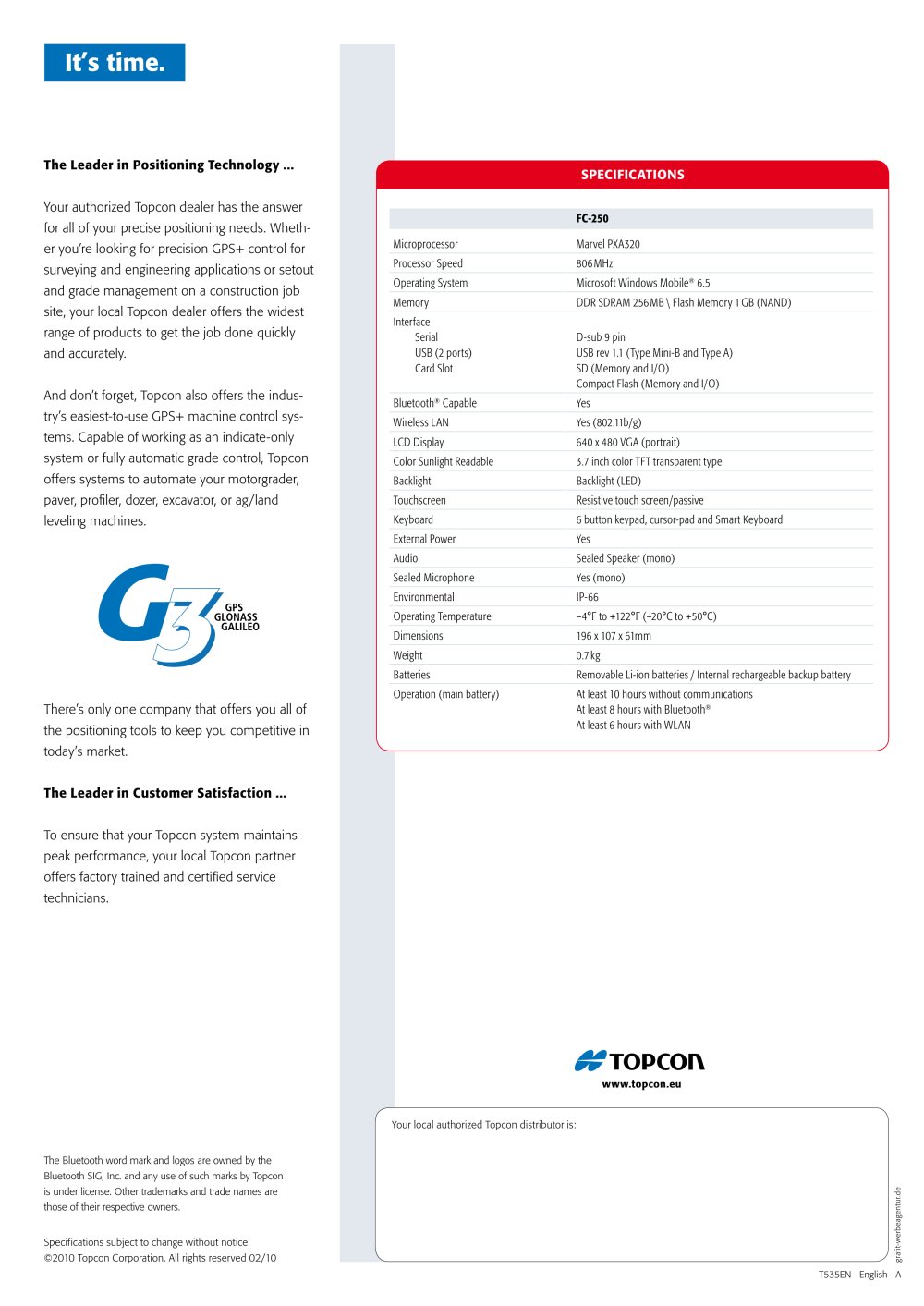

SPECIFICATION S
FC-250
Microprocessor Marvel PXA320
Processor Speed 806 MHz
Operating System Microsoft Windows Mobile® 6.5
Memory DDR SDRAM 256 MB \ Flash Memory 1 GB (NAND)
Interface
Serial D-sub 9 pin
USB (2 ports) USB rev 1.1 (Type Mini-B and Type A)
Card Slot SD (Memory and I/O)
Compact Flash (Memory and I/O)
Bluetooth® Capable Yes
Wireless LAN Yes (802.11b/g)
LCD Display 640 x 480 VGA (portrait)
Color Sunlight Readable 3.7 inch color TFT transparent type
Backlight Backlight (LED)
Touchscreen Resistive touch screen/passive
Keyboard 6 button keypad, cursor-pad and Smart Keyboard
External Power Yes
Audio Sealed Speaker (mono)
Sealed Microphone Yes (mono)
Environmental IP-66
Operating Temperature –4°F to +122°F (–20°C to +50°C)
Dimensions 196 x 107 x 61mm
Weight 0.7 kg
Batteries Removable Li-ion batteries / Internal rechargeable backup battery
Operation (main battery) At least 10 hours without communications
At least 8 hours with Bluetooth®
At least 6 hours with WLAN
www.topcon.eu
