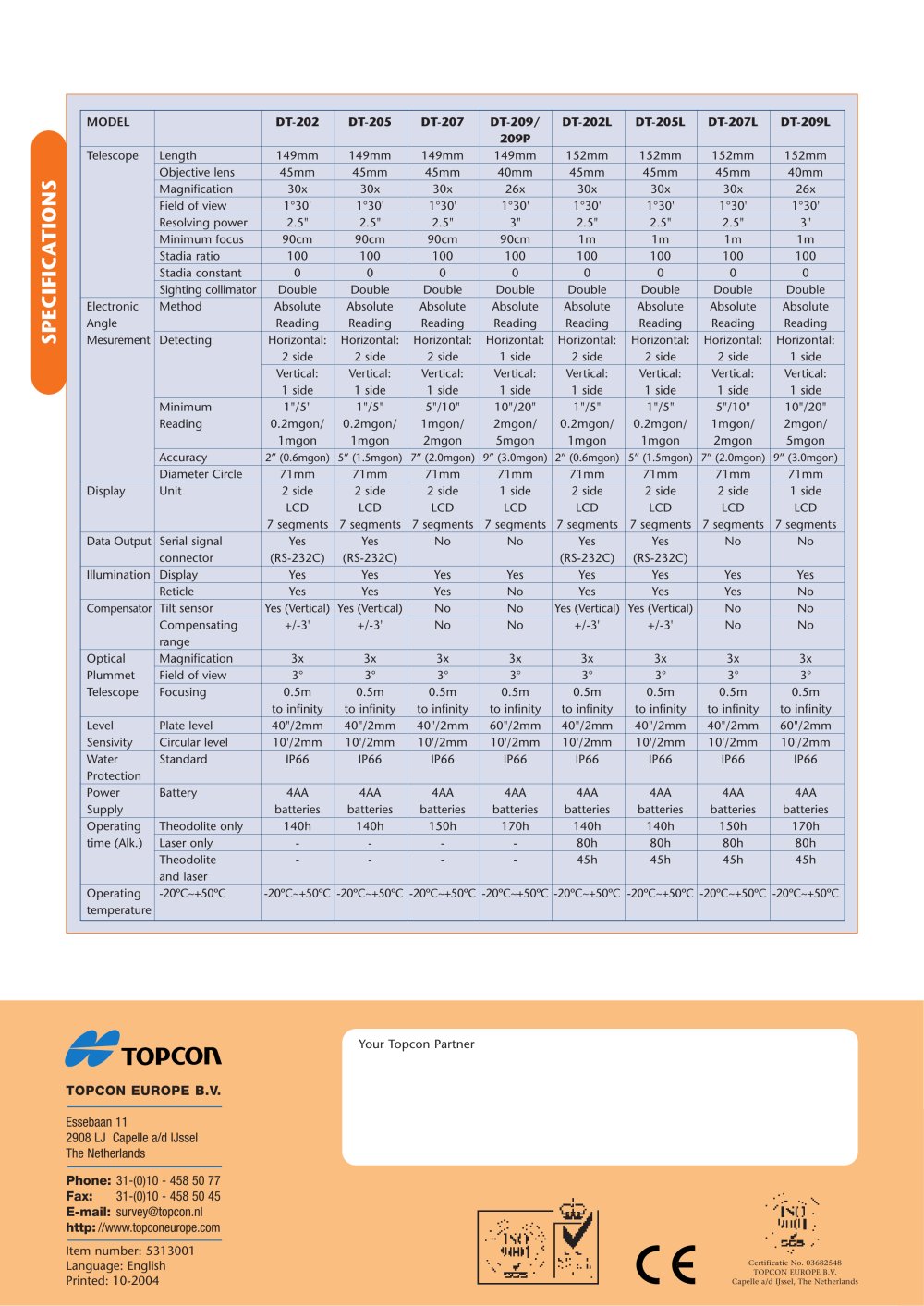

| | | | | | | | | | | | | | | | | | MODEL | | DT-202 | DT-205 | DT-207 | DT-209/ 209P | DT-202L | DT-205L | DT-207L | DT-209L | | | | Telescope | Length | 149mm | 149mm | 149mm | 149mm | 152mm | 152mm | 152mm | 152mm | | | | | Objective lens | 45mm | 45mm | 45mm | 40mm | 45mm | 45mm | 45mm | 40mm | | | | | Magnification | 30x | 30x | 30x | 26x | 30x | 30x | 30x | 26x | | | | | Field of view | 1°30' | 1°30' | 1°30' | 1°30' | 1°30' | 1°30' | 1°30' | 1°30' | | | | | Resolving power | 2.5" | 2.5" | 2.5" | 3" | 2.5" | 2.5" | 2.5" | 3" | | | | | Minimum focus | 90cm | 90cm | 90cm | 90cm | 1m | 1m | 1m | 1m | | | | | Stadia ratio | 100 | 100 | 100 | 100 | 100 | 100 | 100 | 100 | | | | | Stadia constant | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | | | | | Sighting collimator | Double | Double | Double | Double | Double | Double | Double | Double | | | | Electronic | Method | Absolute | Absolute | Absolute | Absolute | Absolute | Absolute | Absolute | Absolute | | | | Angle | | Reading | Reading | Reading | Reading | Reading | Reading | Reading | Reading | | | | Mesurement | Detecting | Horizontal: | Horizontal: | Horizontal: | Horizontal: | Horizontal: | Horizontal: | Horizontal: | Horizontal: | | | | | | 2 side | 2 side | 2 side | 1 side | 2 side | 2 side | 2 side | 1 side | | | | | | Vertical: | Vertical: | Vertical: | Vertical: | Vertical: | Vertical: | Vertical: | Vertical: | | | | | | 1 side | 1 side | 1 side | 1 side | 1 side | 1 side | 1 side | 1 side | | | | | Minimum | 1"/5" | 1"/5" | 5"/10" | 10"/20" | 1"/5" | 1"/5" | 5"/10" | 10"/20" | | | | | Reading | 0.2mgon/ | 0.2mgon/ | 1mgon/ | 2mgon/ | 0.2mgon/ | 0.2mgon/ | 1mgon/ | 2mgon/ | | | | | | 1mgon | 1mgon | 2mgon | 5mgon | 1mgon | 1mgon | 2mgon | 5mgon | | | | | Accuracy | 2" (0.6mgon) | 5" (1.5mgon) | 7" (2.0mgon) | 9" (3.0mgon) | 2" (0.6mgon) | 5" (1.5mgon) | 7" (2.0mgon) | 9" (3.0mgon) | | | | | Diameter Circle | 71mm | 71mm | 71mm | 71mm | 71mm | 71mm | 71mm | 71mm | | | | Display | Unit | 2 side | 2 side | 2 side | 1 side | 2 side | 2 side | 2 side | 1 side | | | | | | LCD | LCD | LCD | LCD | LCD | LCD | LCD | LCD | | | | | | 7 segments | 7 segments | 7 segments | 7 segments | 7 segments | 7 segments | 7 segments | 7 segments | | | | Data Output | Serial signal connector | Yes (RS-232C) | Yes (RS-232C) | No | No | Yes (RS-232C) | Yes (RS-232C) | No | No | | | | Illumination | Display | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | | | | | Reticle | Yes | Yes | Yes | No | Yes | Yes | Yes | No | | | | Compensator | Tilt sensor | Yes (Vertical) | Yes (Vertical) | No | No | Yes (Vertical) | Yes (Vertical) | No | No | | | | | Compensating | +/-3' | +/-3' | No | No | +/-3' | +/-3' | No | No | | | | | range | | | | | | | | | | | | Optical | Magnification | 3x | 3x | 3x | 3x | 3x | 3x | 3x | 3x | | | | Plummet | Field of view | 3° | 3° | 3° | 3° | 3° | 3° | 3° | 3° | | | | Telescope | Focusing | 0.5m | 0.5m | 0.5m | 0.5m | 0.5m | 0.5m | 0.5m | 0.5m | | | | | | to infinity | to infinity | to infinity | to infinity | to infinity | to infinity | to infinity | to infinity | | | | Level | Plate level | 40"/2mm | 40"/2mm | 40"/2mm | 60"/2mm | 40"/2mm | 40"/2mm | 40"/2mm | 60"/2mm | | | | Sensivity | Circular level | 10'/2mm | 10'/2mm | 10'/2mm | 10'/2mm | 10'/2mm | 10'/2mm | 10'/2mm | 10'/2mm | | | | Water | Standard | IP66 | IP66 | IP66 | IP66 | IP66 | IP66 | IP66 | IP66 | | | | Protection | | | | | | | | | | | | | Power | Battery | 4AA | 4AA | 4AA | 4AA | 4AA | 4AA | 4AA | 4AA | | | | Supply | | batteries | batteries | batteries | batteries | batteries | batteries | batteries | batteries | | | | Operating | Theodolite only | 140h | 140h | 150h | 170h | 140h | 140h | 150h | 170h | | | | time (Alk.) | Laser only | - | - | - | - | 80h | 80h | 80h | 80h | | | | | Theodolite | - | - | - | - | 45h | 45h | 45h | 45h | | | | | and laser | | | | | | | | | | | | Operating | -20°C~+50°C | -20°C~+50°C | -20°C~+50°C | -20°C~+50°C | -20°C~+50°C | -20°C~+50°C | -20°C~+50°C | -20°C~+50°C | -20°C~+50°C | | | | temperature | | | | | | | | | | | | | | | | | | | | | | | | | | |
| | | |
| | | |
