SPECIFICATIONS*
LC-2 LC-4X
Accuracy 3 mm / 10 m 2 mm / 10 m
Laserdiode 635 nm 635 nm
Operating range 30 m indoor / 50 m outdoor 40 m indoor / 50 m outdoor
Power suply 3x AA dry cell 3x AA dry cell
Operating time 12 hours continious 5 hours over all lines
Water / Dust proof IP 54 IP 54
Out of level indic. Yes Yes
Tripod screw hole 1/4 + 5/8 in mount
Unit weight 470 g 900 g
Protection Nylon pouch Aluminium case
* all technical changes are reserved by TOPCON, 04/2009

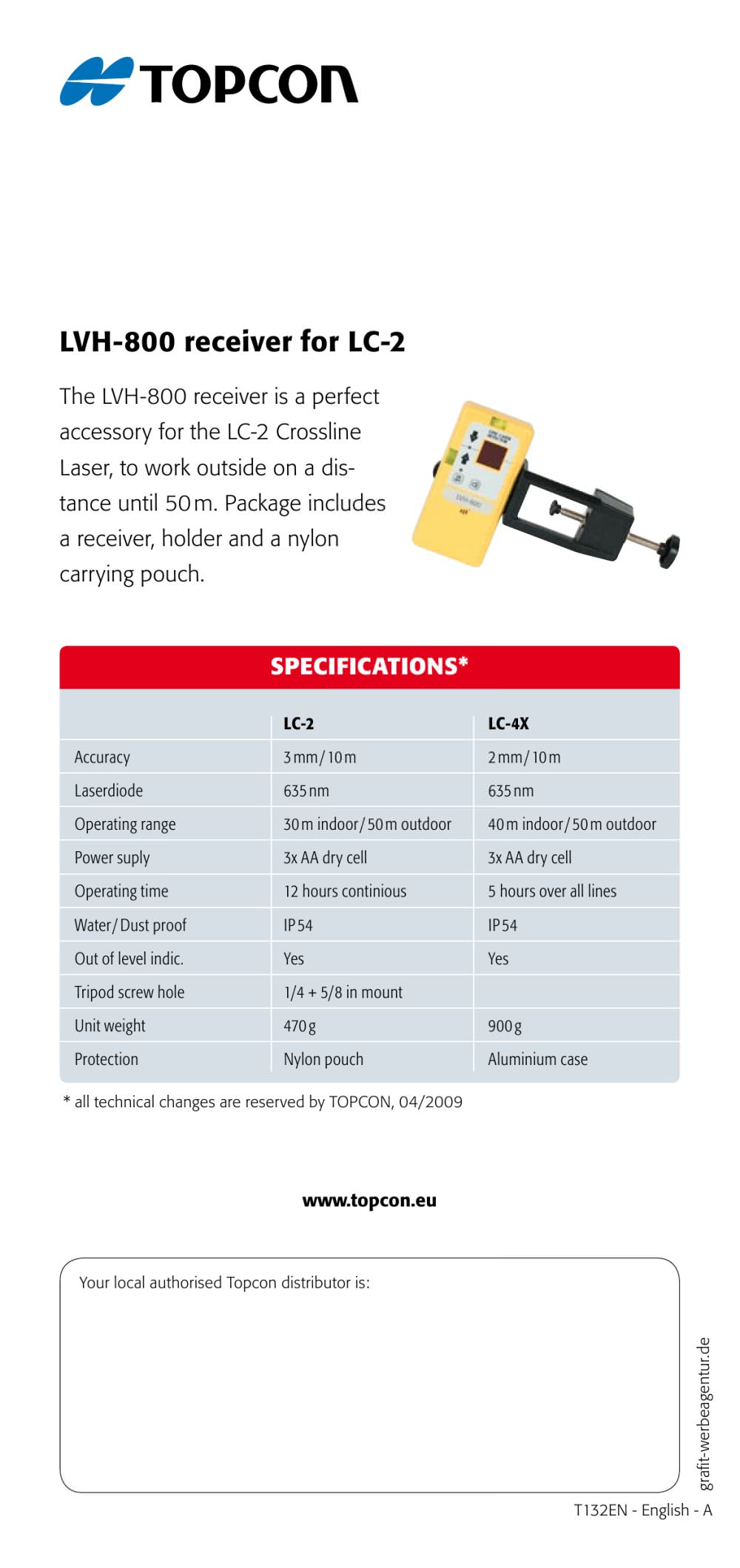

The LVH-800 receiver is a perfect
accessory for the LC-2 Crossline
Laser, to work outside on a distance
until 50 m. Package includes
a receiver, holder and a nylon
carrying pouch.
LV H-800 receiver for LC-2
