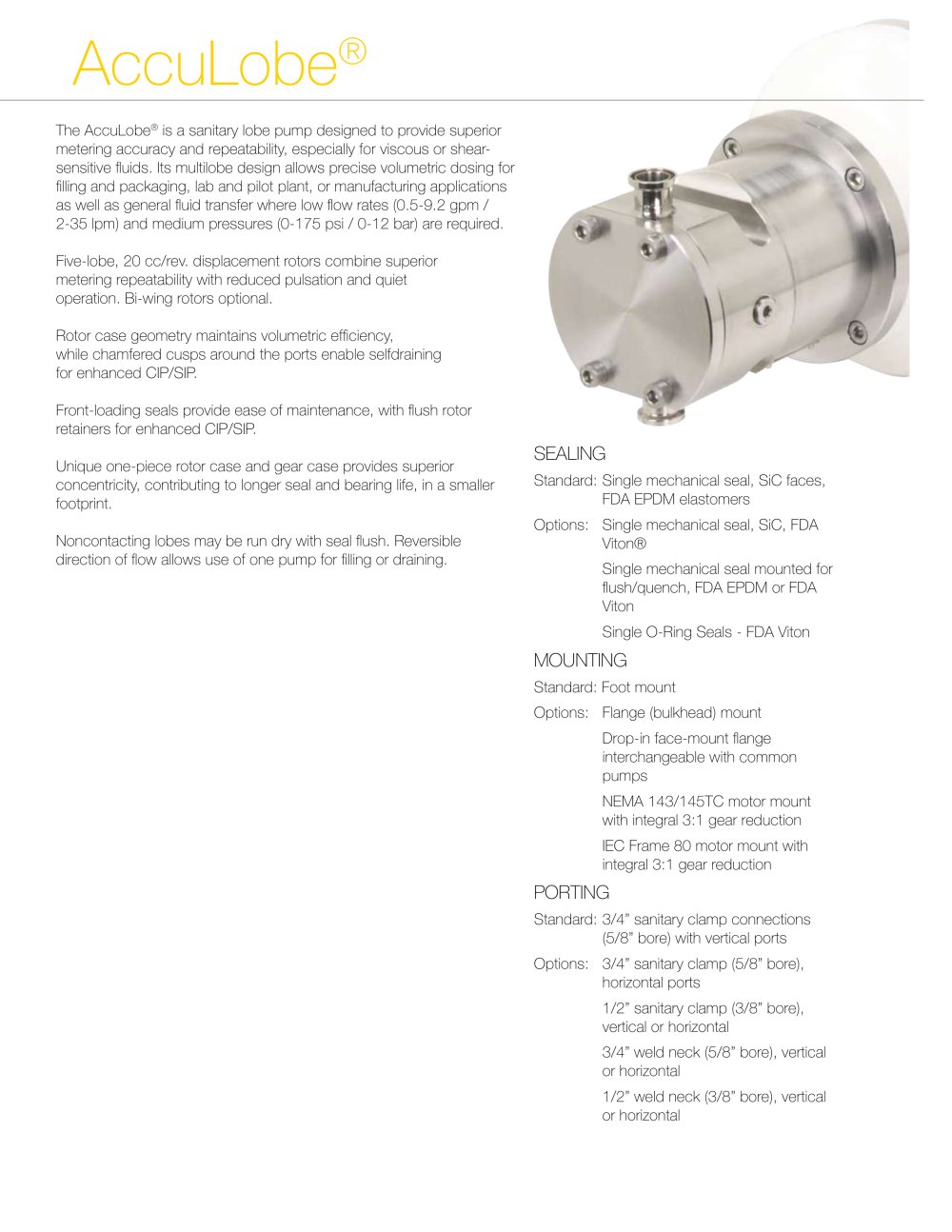

AccuLobe

®

The AccuLobe
® is a sanitary lobe pump designed to provide superior metering accuracy and repeatability, especially for viscous or shear- sensitive fluids. Its multilobe design allows precise volumetric dosing for filling and packaging, lab and pilot plant, or manufacturing applications as well as general fluid transfer where low flow rates (0.5-9.2 gpm / 2-35 lpm) and medium pressures (0-175 psi / 0-12 bar) are required.Five-lobe, 20 cc/rev. displacement rotors combine superiormetering repeatability with reduced pulsation and quiet operation. Bi-wing rotors optional.Rotor case geometry maintains volumetric efficiency,while chamfered cusps around the ports enable selfdraining for enhanced CIP/SIP.Front-loading seals provide ease of maintenance, with flush rotor retainers for enhanced CIP/SIP.Unique one-piece rotor case and gear case provides superior concentricity, contributing to longer seal and bearing life, in a smaller footprint.Noncontacting lobes may be run dry with seal flush. Reversible direction of flow allows use of one pump for filling or draining.

SEALING

Standard: Single mechanical seal, SiC faces, FDA EPDM elastomersOptions: Single mechanical seal, SiC, FDA Viton® Single mechanical seal mounted for flush/quench, FDA EPDM or FDA Viton Single O-Ring Seals - FDA Viton

MOUNTING

Standard: Foot mount Options: Flange (bulkhead) mount Drop-in face-mount flange interchangeable with common pumps NEMA 143/145TC motor mount with integral 3:1 gear reduction IEC Frame 80 motor mount with integral 3:1 gear reduction

PORTING

Standard: 3/4” sanitary clamp connections (5/8” bore) with vertical portsOptions: 3/4” sanitary clamp (5/8” bore), horizontal ports 1/2” sanitary clamp (3/8” bore), vertical or horizontal 3/4” weld neck (5/8” bore), vertical or horizontal 1/2” weld neck (3/8” bore), vertical or horizontal
