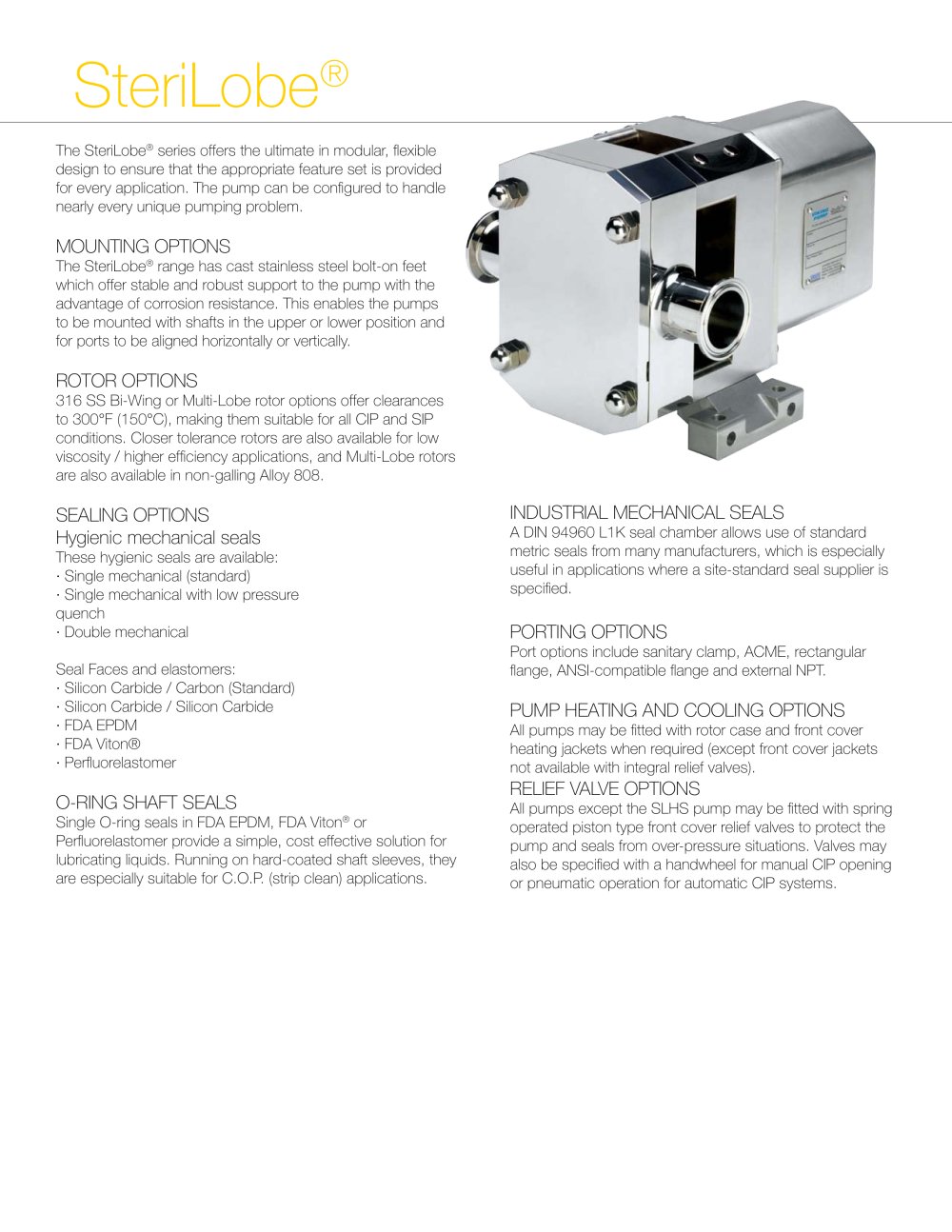

SteriLobe

®

The SteriLobe
® series offers the ultimate in modular, flexible design to ensure that the appropriate feature set is provided for every application. The pump can be configured to handle nearly every unique pumping problem.

MOUNTING OPTIONS

The SteriLobe
® range has cast stainless steel bolt-on feet which offer stable and robust support to the pump with the advantage of corrosion resistance. This enables the pumps to be mounted with shafts in the upper or lower position and for ports to be aligned horizontally or vertically.

ROTOR OPTIONS

316 SS Bi-Wing or Multi-Lobe rotor options offer clearances to 300°F (150°C), making them suitable for all CIP and SIP conditions. Closer tolerance rotors are also available for low viscosity / higher efficiency applications, and Multi-Lobe rotors are also available in non-galling Alloy 808.

SEALING OPTIONS Hygienic mechanical seals INDUSTRIAL MECHANICAL SEALS

A DIN 94960 L1K seal chamber allows use of standard metric seals from many manufacturers, which is especially useful in applications where a site-standard seal supplier is specified. These hygienic seals are available: · Single mechanical (standard) · Single mechanical with low pressure quench · Double mechanicalSeal Faces and elastomers:· Silicon Carbide / Carbon (Standard) · Silicon Carbide / Silicon Carbide · FDA EPDM · FDA Viton® · Perfluorelastomer

PORTING OPTIONS

Port options include sanitary clamp, ACME, rectangular flange, ANSI-compatible flange and external NPT.

PUMP HEATING AND COOLING OPTIONS

All pumps may be fitted with rotor case and front cover heating jackets when required (except front cover jackets not available with integral relief valves).

O-RING SHAFT SEALS RELIEF VALVE OPTIONS

All pumps except the SLHS pump may be fitted with spring operated piston type front cover relief valves to protect the pump and seals from over-pressure situations. Valves may also be specified with a handwheel for manual CIP opening or pneumatic operation for automatic CIP systems. Single O-ring seals in FDA EPDM, FDA Viton
® or Perfluorelastomer provide a simple, cost effective solution for lubricating liquids. Running on hard-coated shaft sleeves, they are especially suitable for C.O.P. (strip clean) applications.
